Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Fuse Block - Left Rear Wire Entry

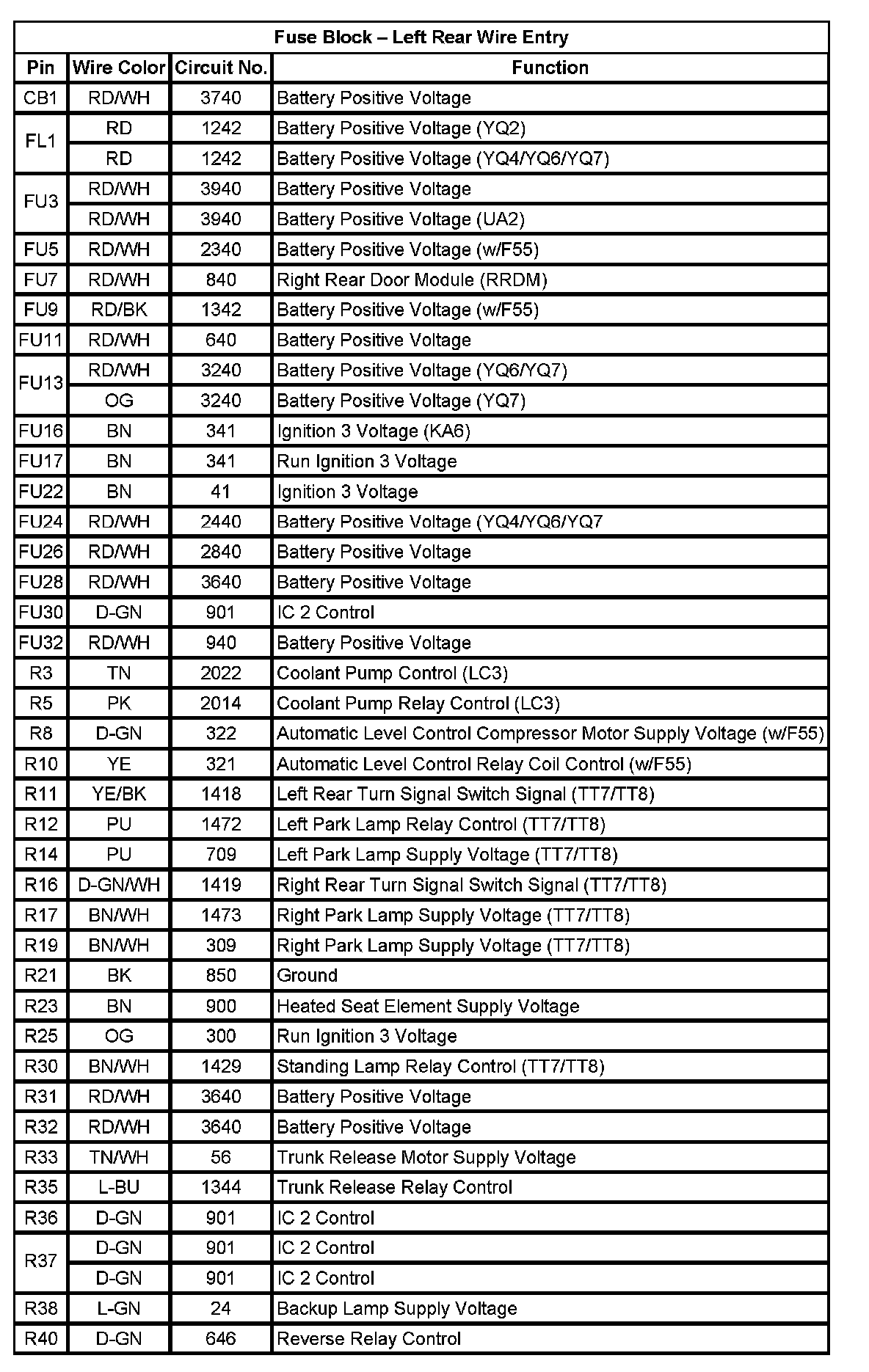

Fuse Block - Left Rear Wire Entry

Fuse Block - Left Rear Wire Entry:
