Home
>>
Cadillac
>>
2006
>>
STS RWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C700 - C799
>>
C701
C701

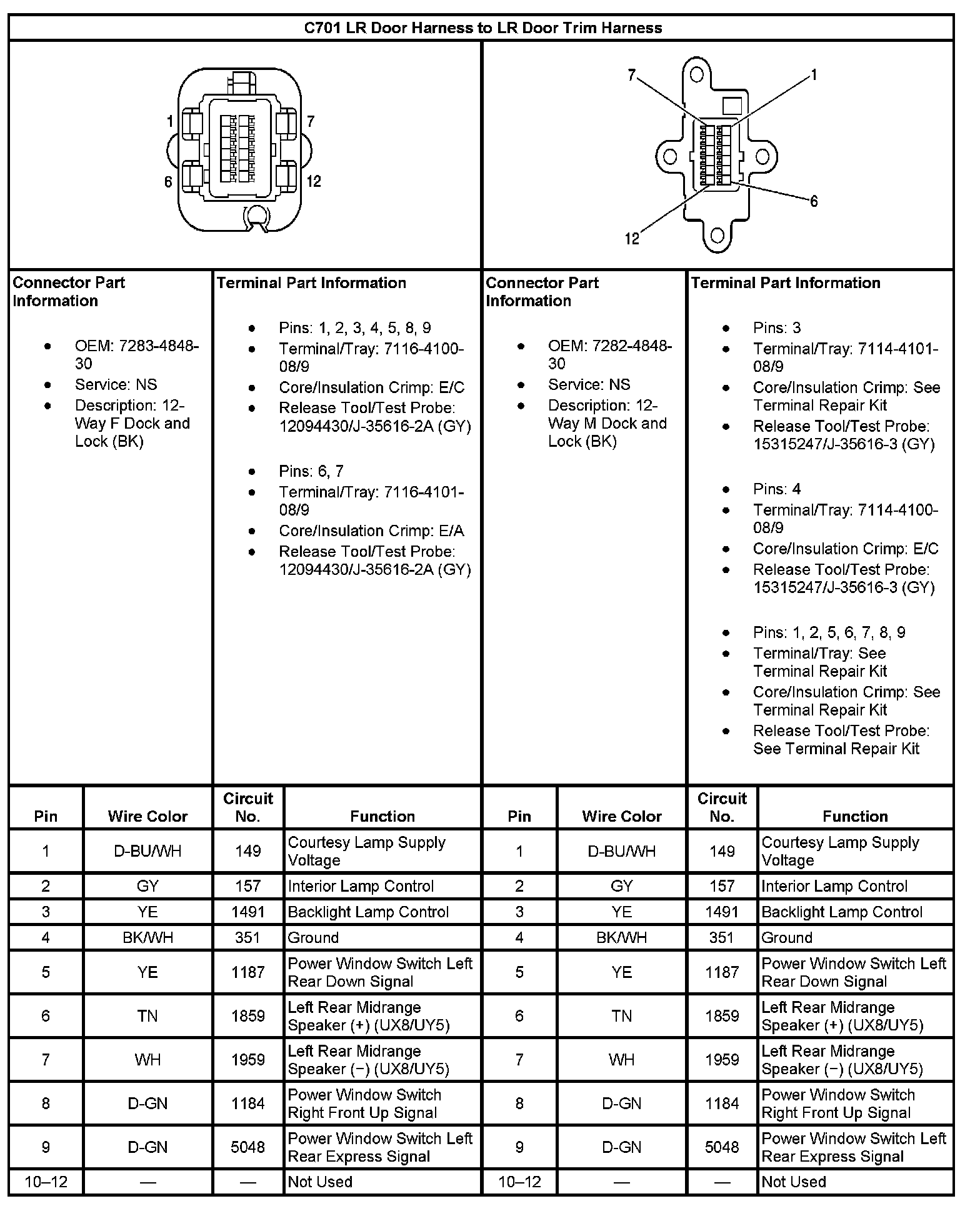

C701 LR Door Harness To LR Door Trim Harness:
