Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C200 - C299 >> C209

C209

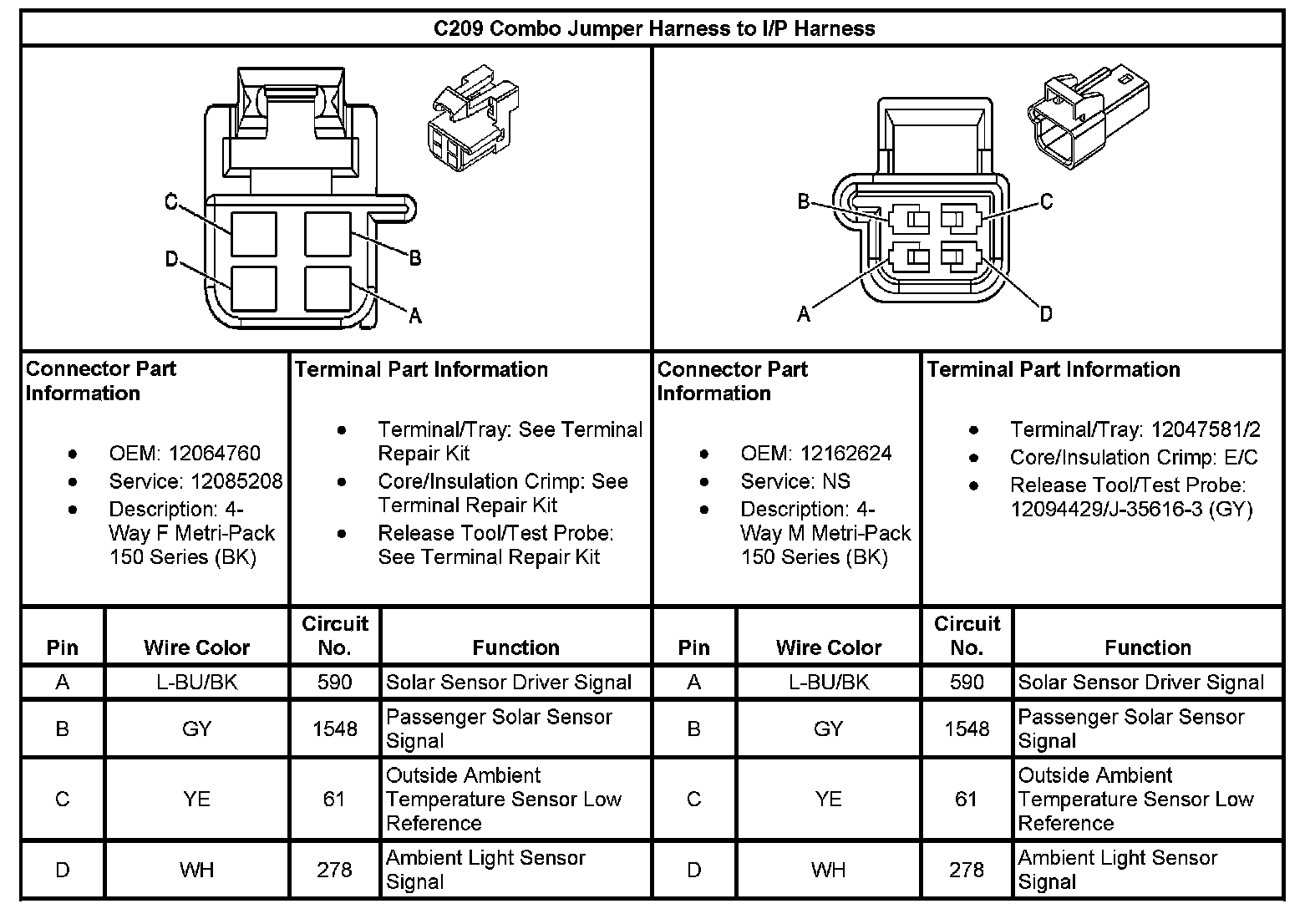

C209 Combo Jumper Harness To I/P Harness:
