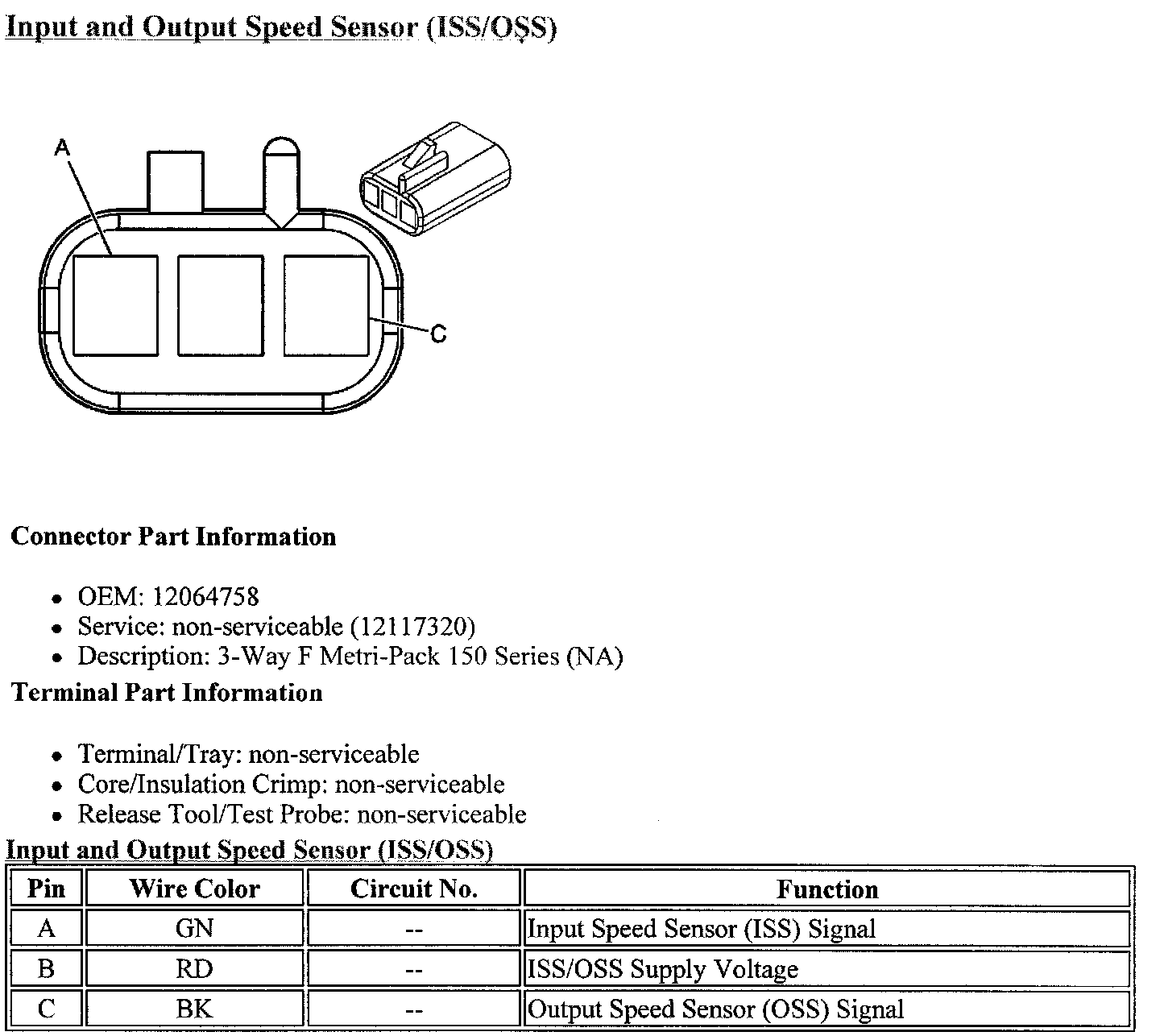

Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Control Module, A/T >> 6L80-E - Automatic Transmission >> Input and Output Speed Sensor (Iss/OSS)
