Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Door Actuator / Motor, HVAC >> Recirculation Actuator

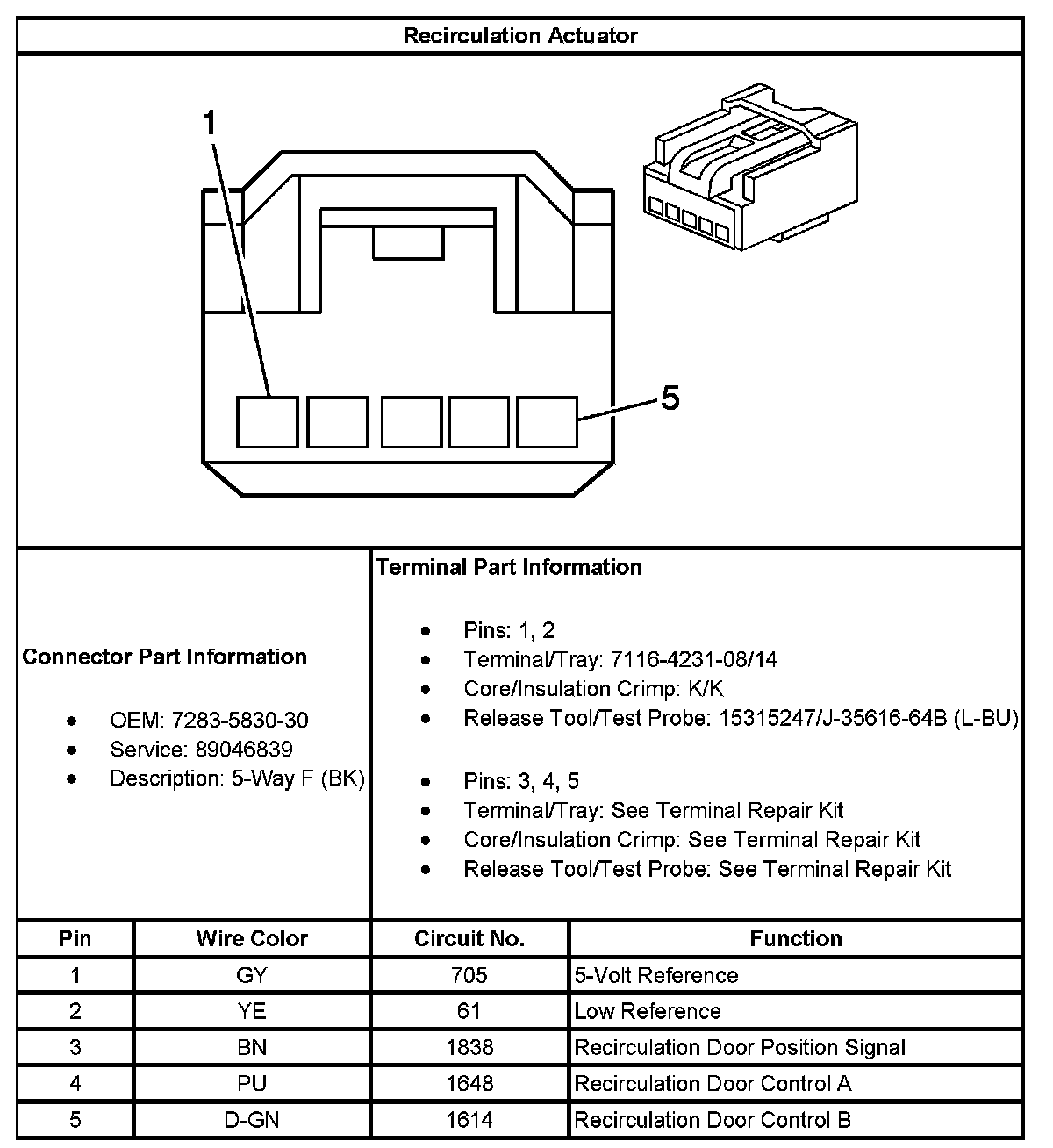

Recirculation Actuator

Recirculation Actuator:
