Heated Seat Element - LR
Heated Seat Element - LR
Heated Seat Element - LR Back (With RPO Code KA6):

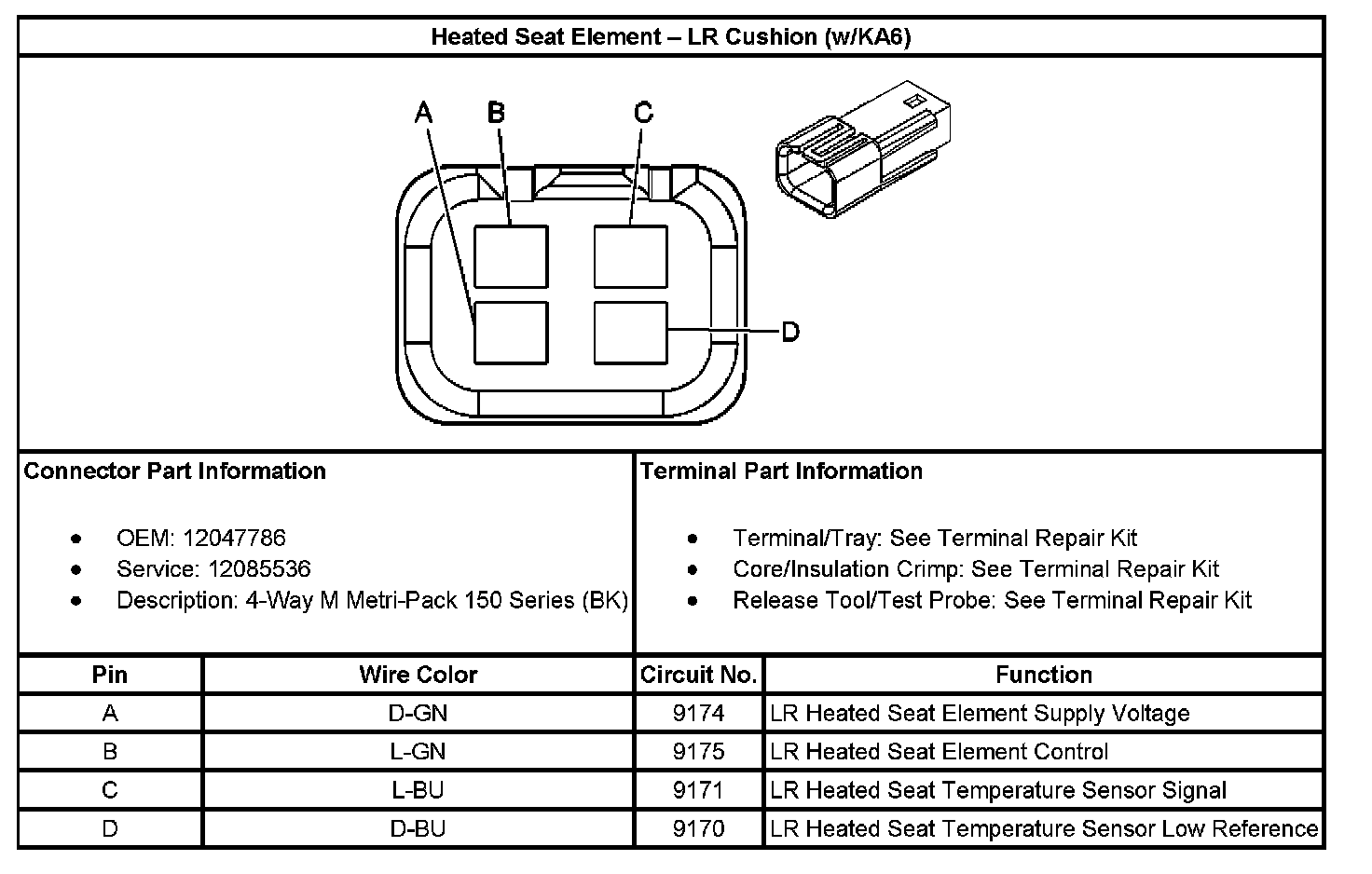

Heated Seat Element - LR Cushion (With RPO Code KA6):
