Passenger Seat Diagrams

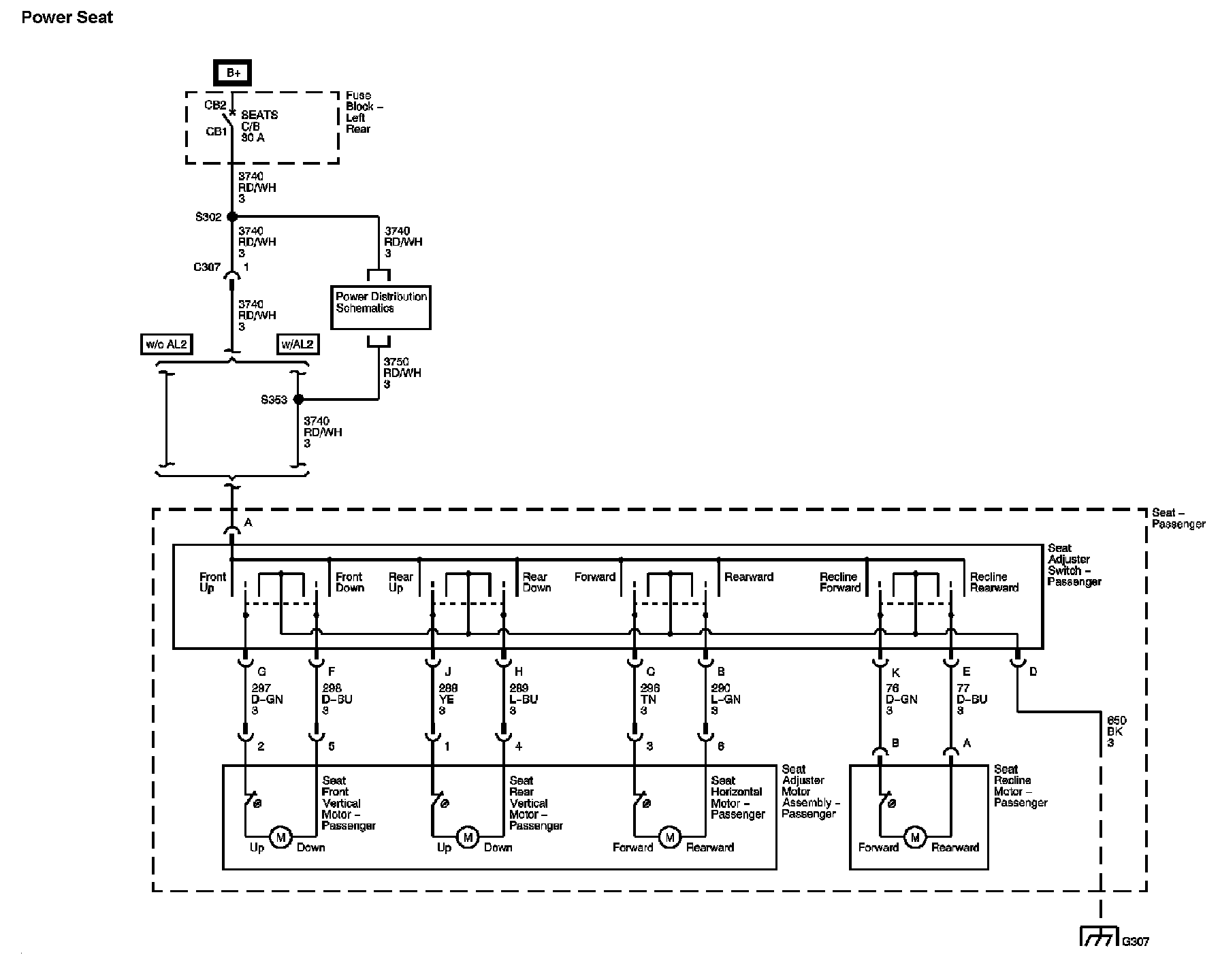

Passenger Seat Diagram 1:

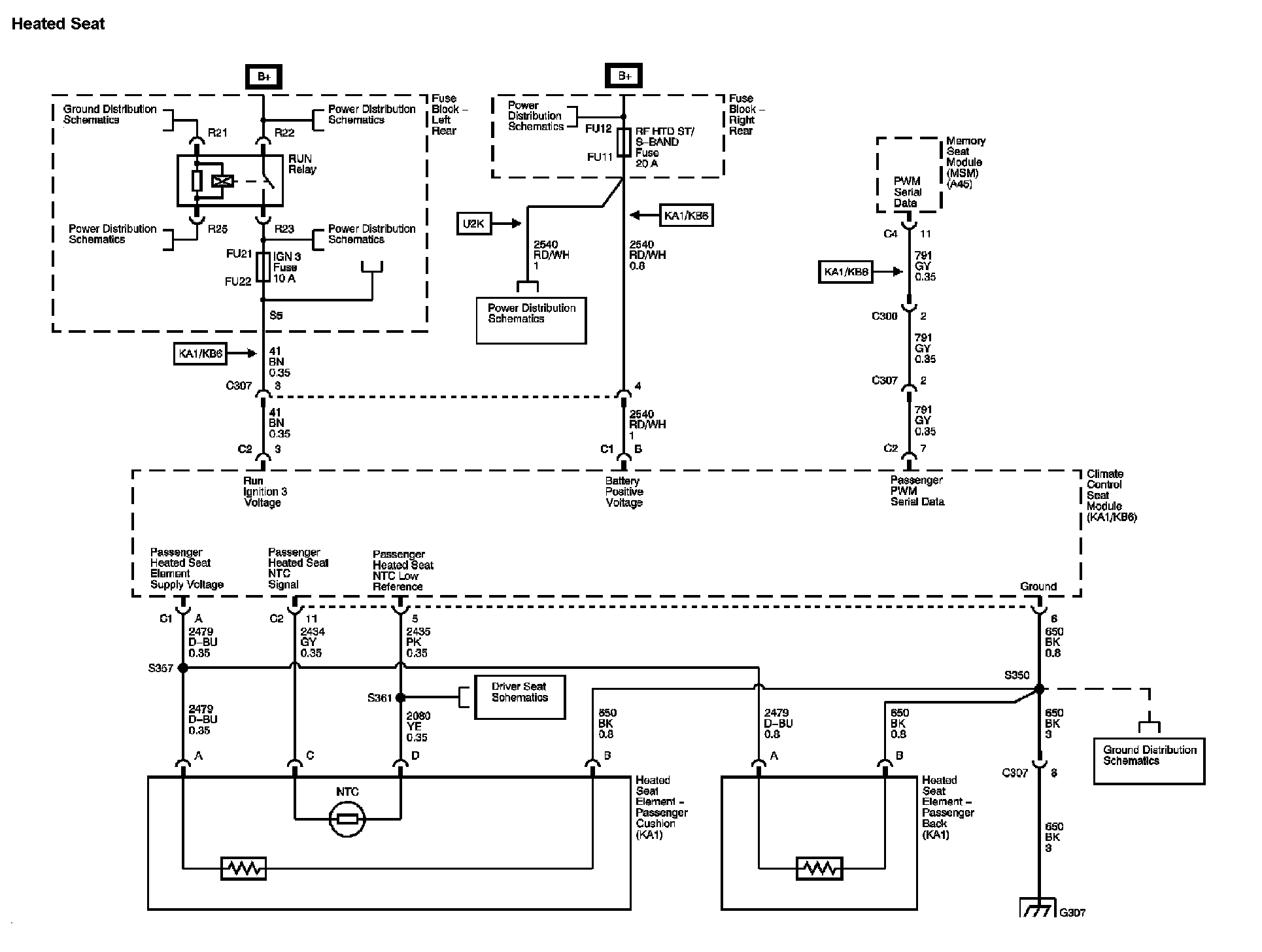

Passenger Seat Diagram 2:

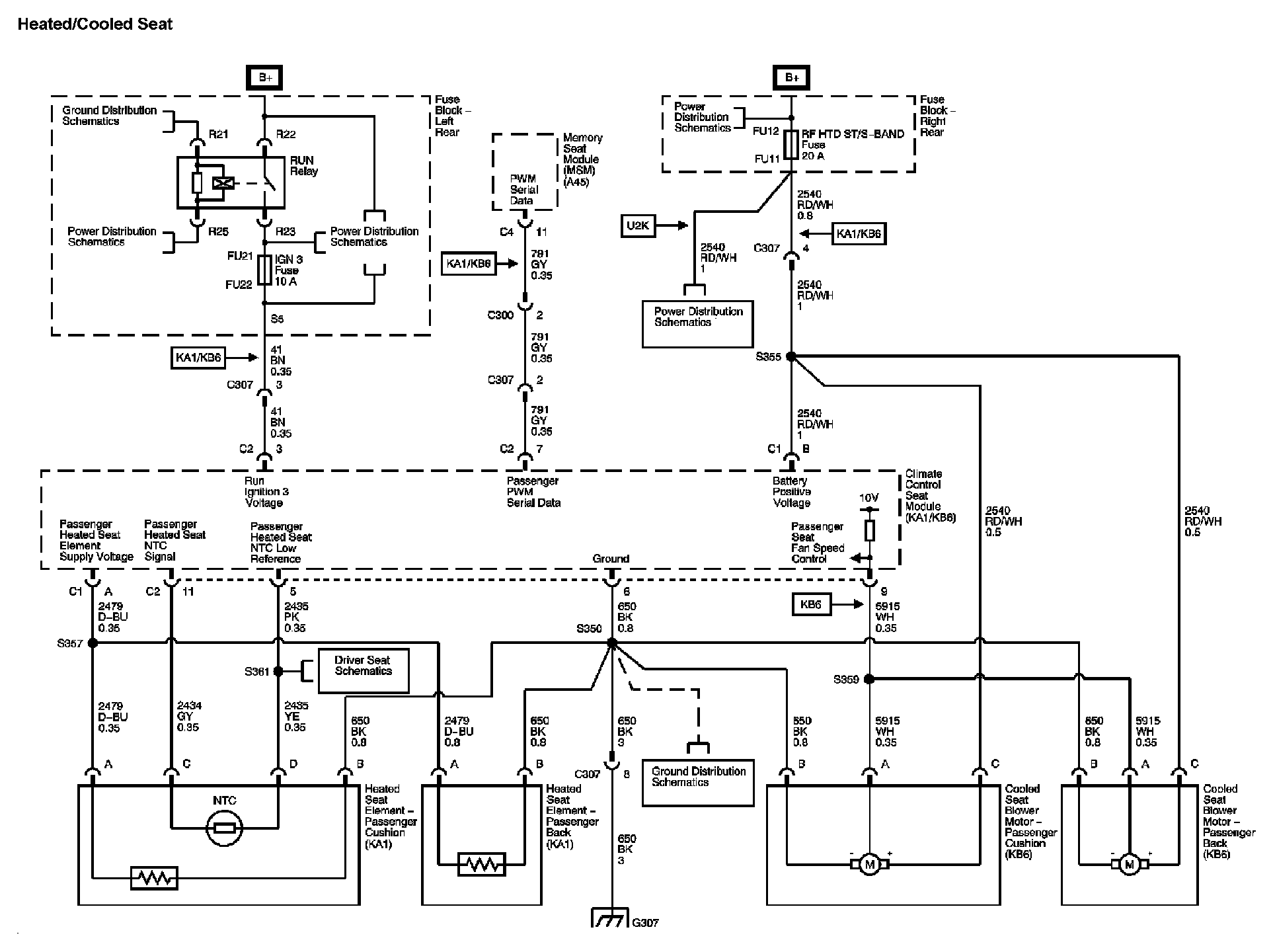

Passenger Seat Diagram 3:

Passenger Seat Diagram 4:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
