Sunroof / Moonroof Switch: Service and Repair

Sunroof Switch Replacement

Removal Procedure

1. Remove the overhead console. Refer to Console Replacement - Overhead (Removal and Replacement) in Interior Trim.

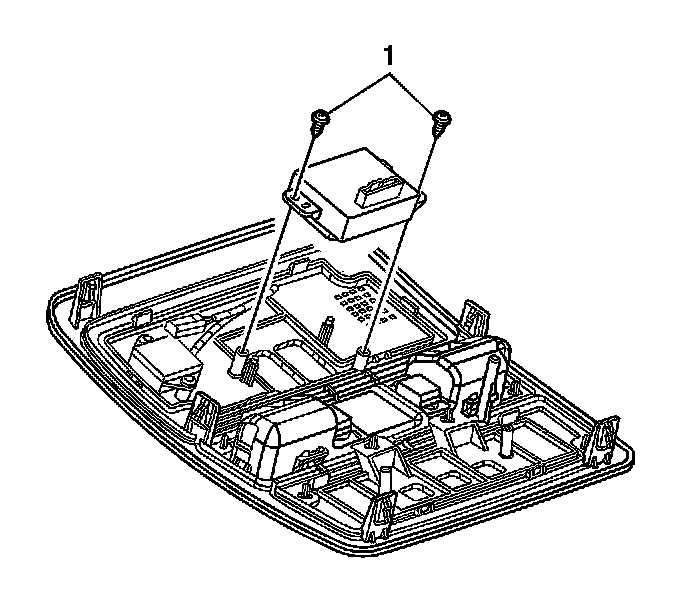

2. Remove the screws (1) securing the sunroof switch to the overhead console.
3. Disconnect the electrical connector.



Installation Procedure





1. Locate the sunroof switch to the overhead console.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws (1) securing the sunroof switch to the overhead console.

Tighten the screws (1) to 2 N.m (18 lb in).

3. Connect the electrical connector.
4. Install the overhead console. Refer to Console Replacement - Overhead (Removal and Replacement) in Interior Trim.
