Electrical Diagrams

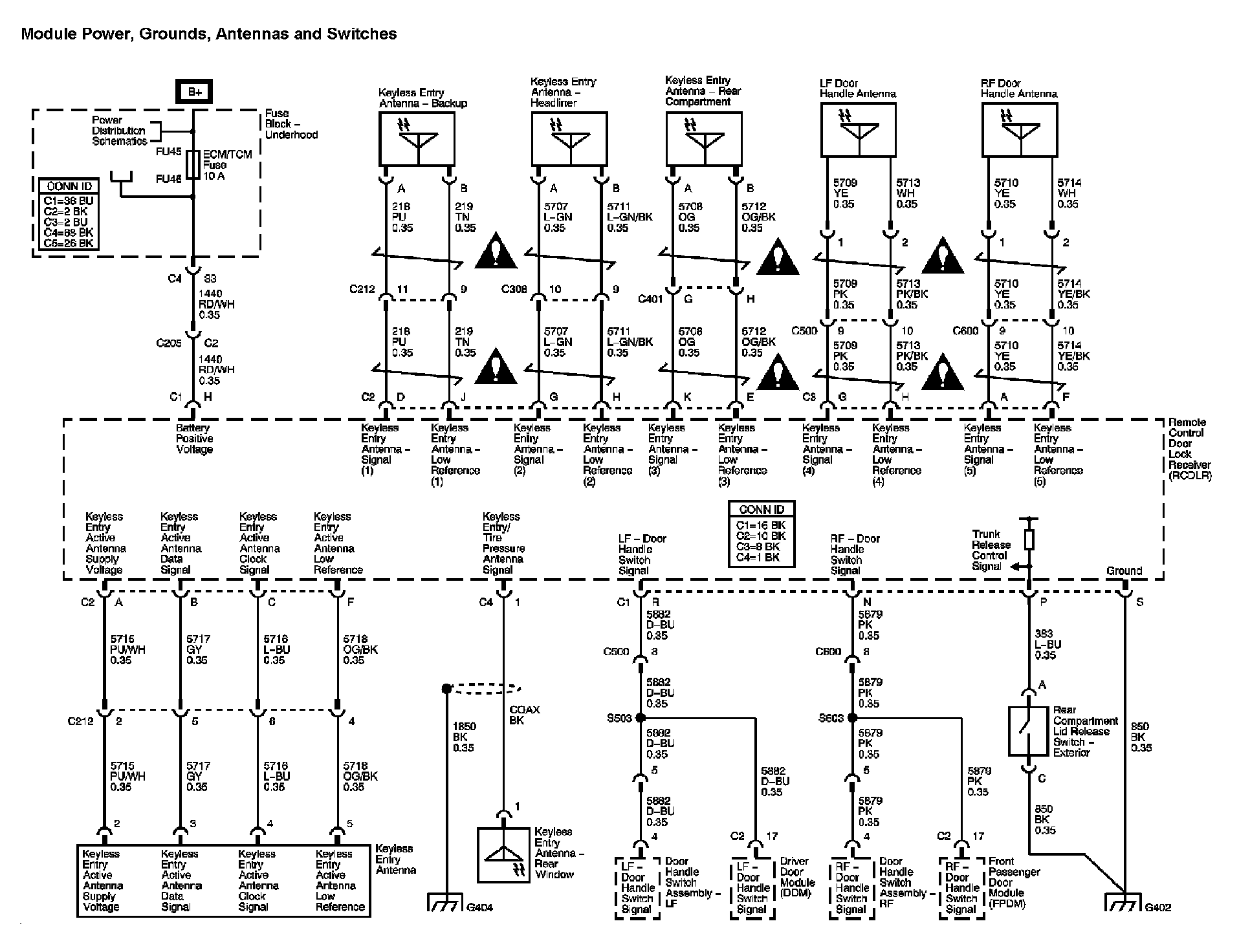

Keyless Entry Diagram 1:

Keyless Entry Diagram 2:

Keyless Entry Diagram 3:

Location: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
