Structural Brace: Service and Repair

Brace Replacement - Cross Vehicle

Removal Procedure





1. Open the hood.

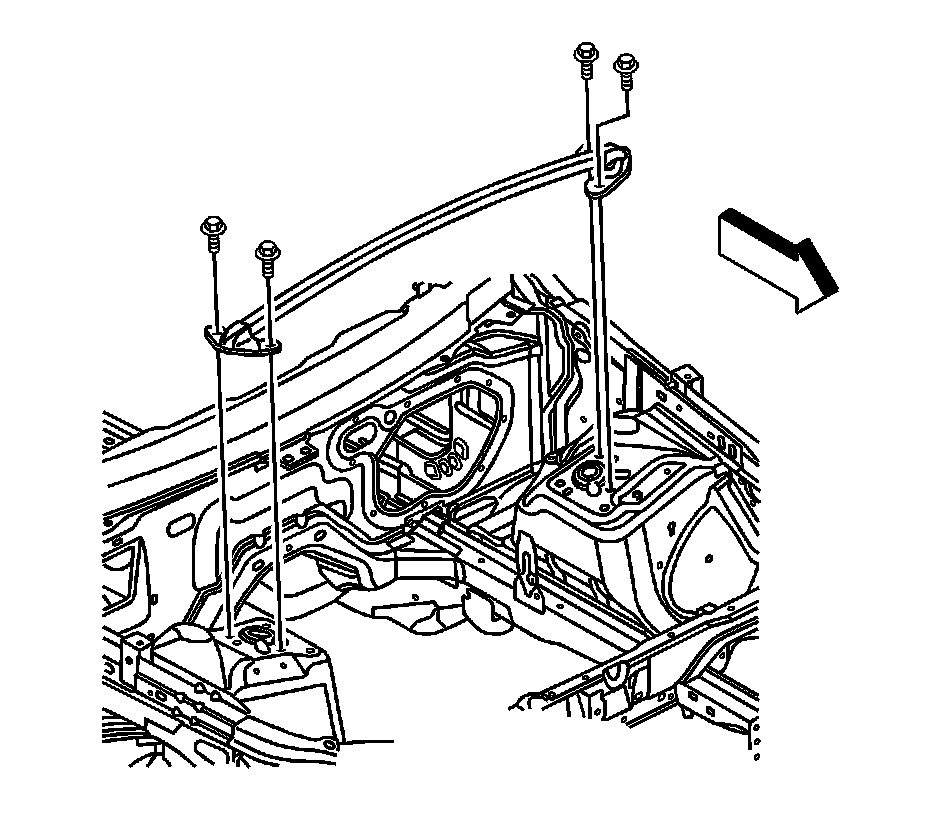

2. Remove the bolts from the cross vehicle brace.
3. Remove the cross vehicle brace from the vehicle.



Installation Procedure





1. Install the cross vehicle brace to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the bolts to the cross vehicle brace.

Tighten the cross vehicle brace bolts to 112 N.m (83 lb ft).

3. Close the hood.
