Rear Fender Liner: Service and Repair

Wheelhouse Liner Panel Replacement - Rear

Removal Procedure

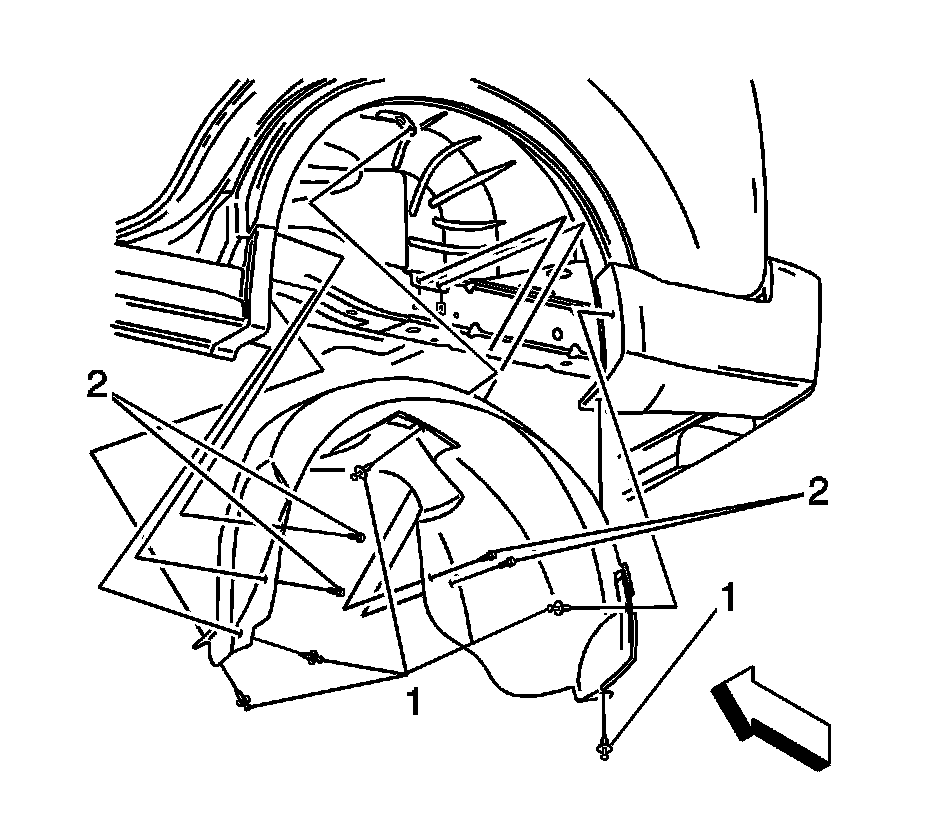

1. Remove the push-in retainers (1) securing the rear wheelhouse liner to the vehicle.
2. Remove the screws (2) securing the rear wheelhouse liner to the vehicle.
3. Remove the rear wheelhouse liner from the vehicle.



Installation Procedure





1. Position the rear wheelhouse liner to the vehicle.
2. Install the push-in retainers (1) that secure the rear wheelhouse liner to the vehicle.

Notice: Refer toFastener Notice in Cautions and Notices.

3. Install the screws (2) that secure the rear wheelhouse liner to the vehicle.

Tighten the screws to 6 N.m (53 lb in).
