Trunk Ajar Indicator Inoperative



TRUNK AJAR INDICATOR INOPERATIVE

IMPORTANT: If this vehicle is not equipped with GM Trap Alert please verify Trap Alert is not enabled by reprogramming the rear integration module (RIM) before using this table. Refer to Control Module References in Computer/Integrating Systems.

TEST

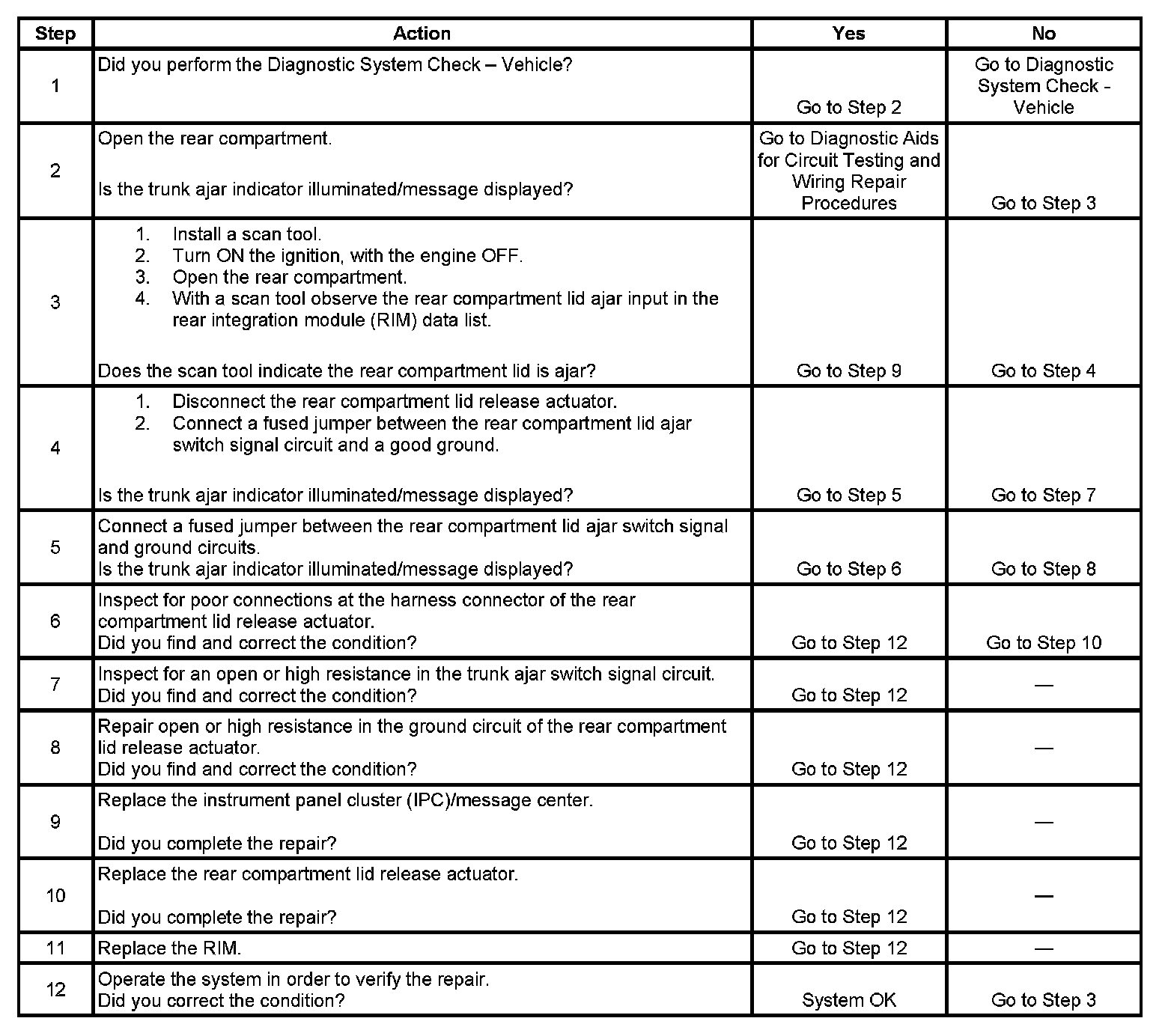

Step 1 - Step 12:
