Power Trunk / Liftgate Lock Switch: Diagrams

Rear Compartment Lid Release Switch - Exterior:

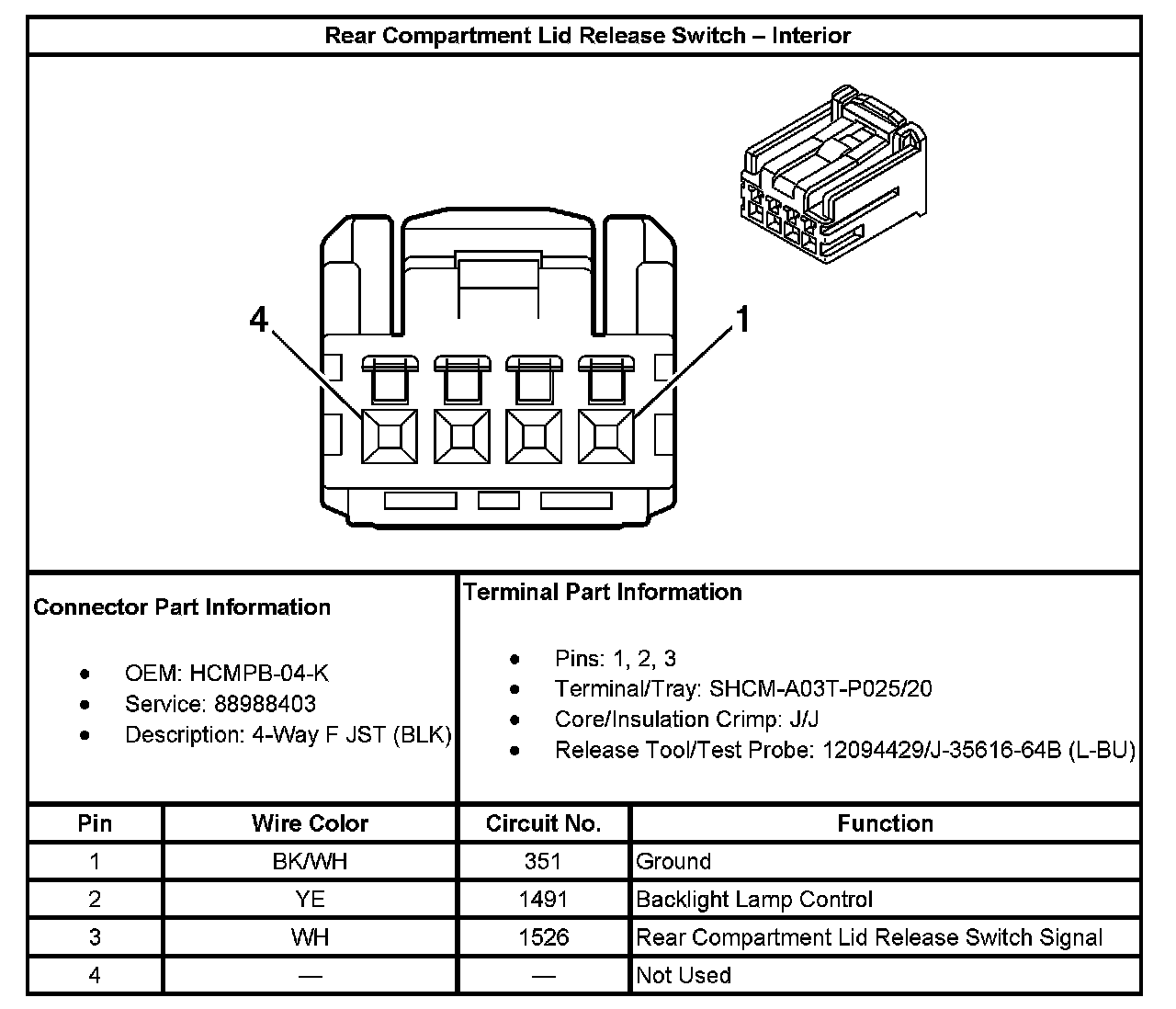

Rear Compartment Lid Release Switch - Interior:
