Front Door Handle: Diagrams

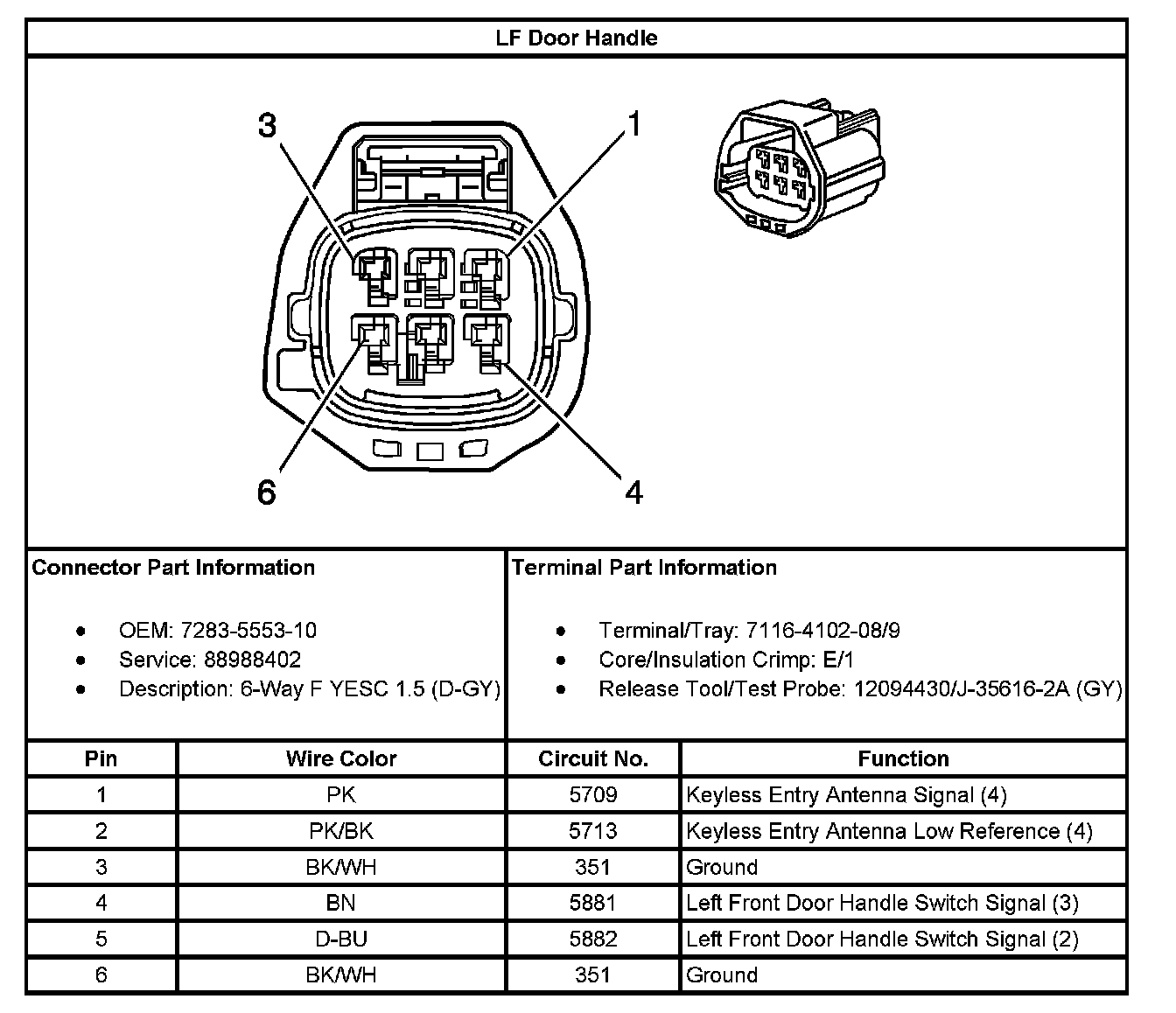

LF Door Handle:

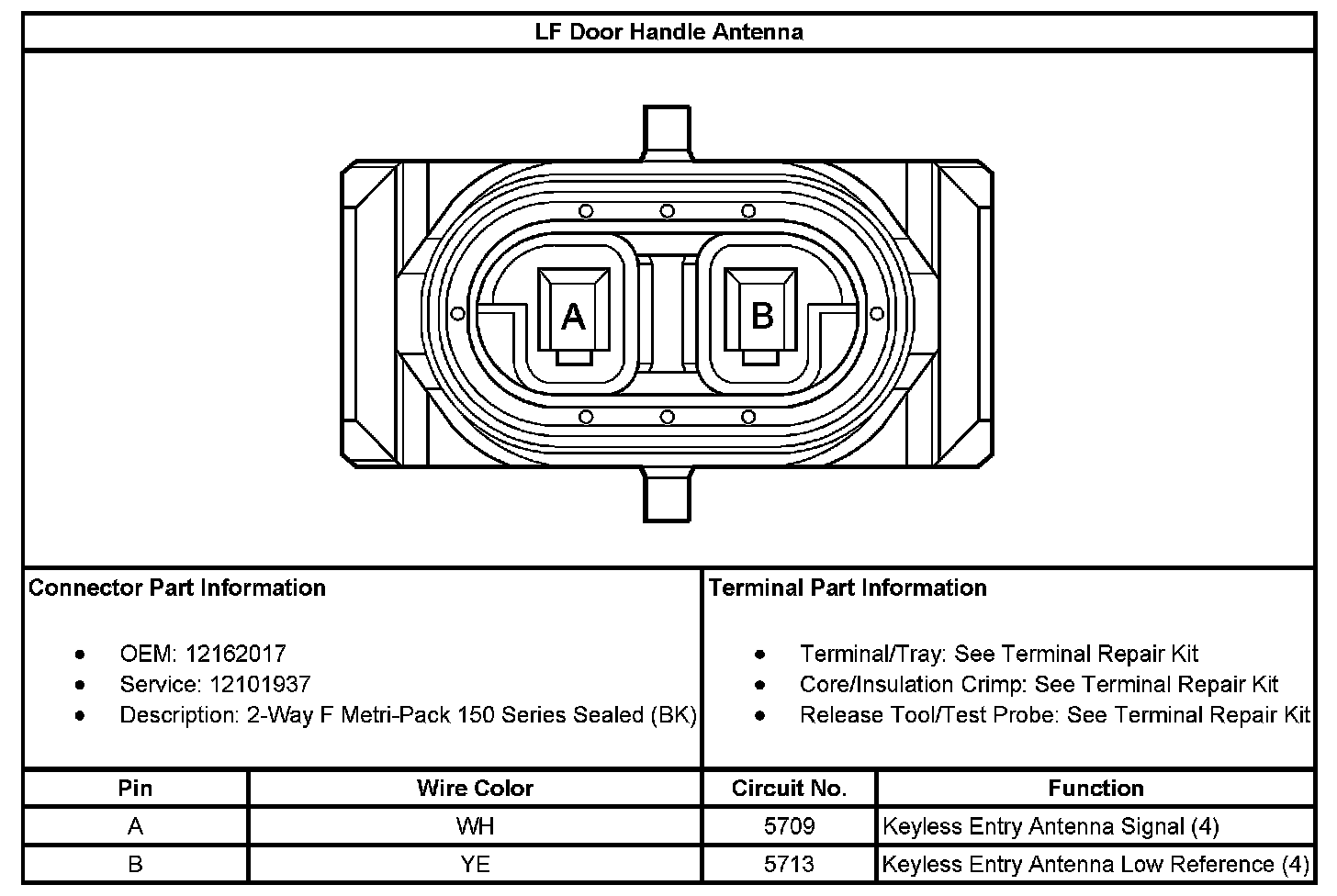

LF Door Handle Antenna:

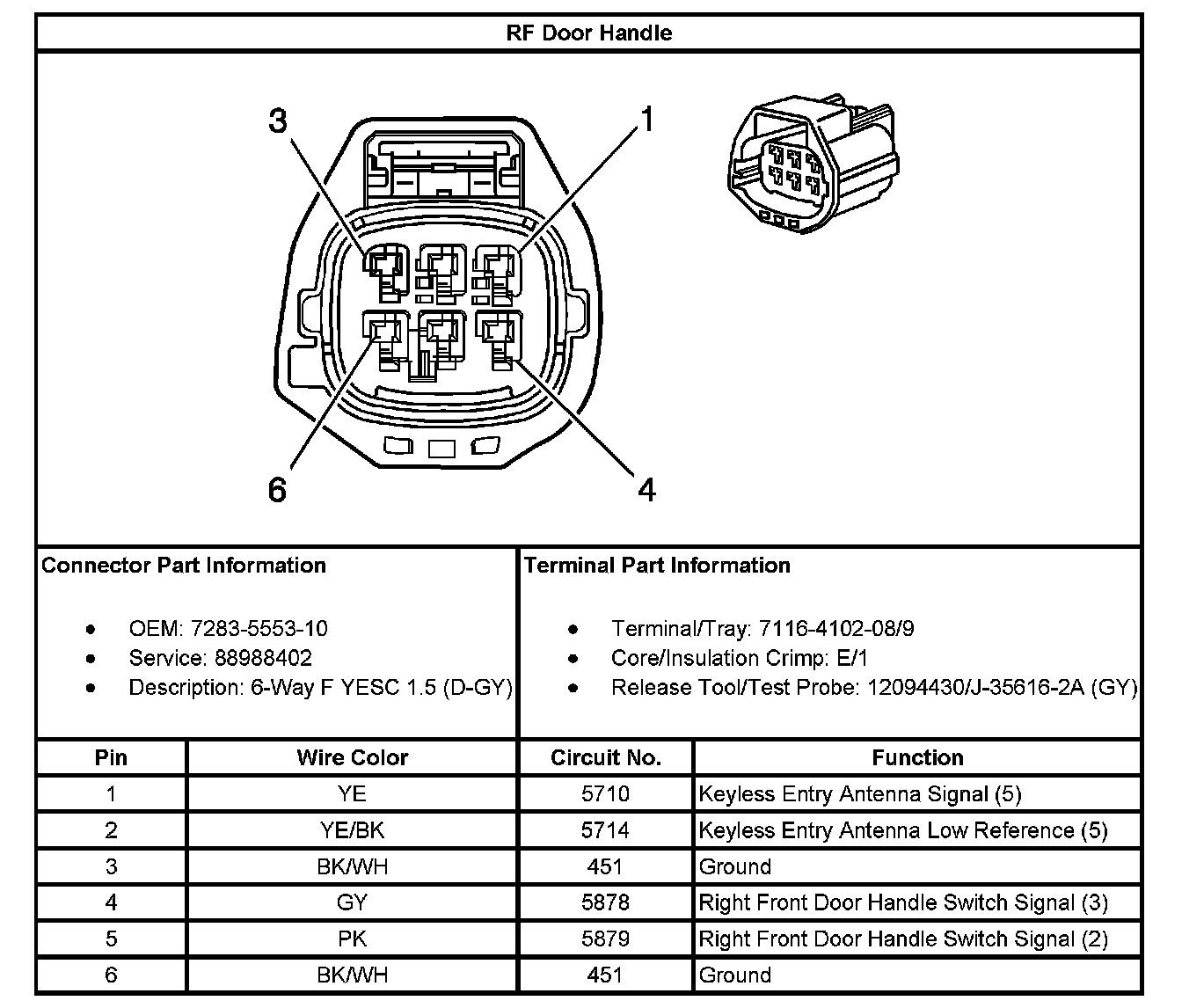

RF Door Handle:

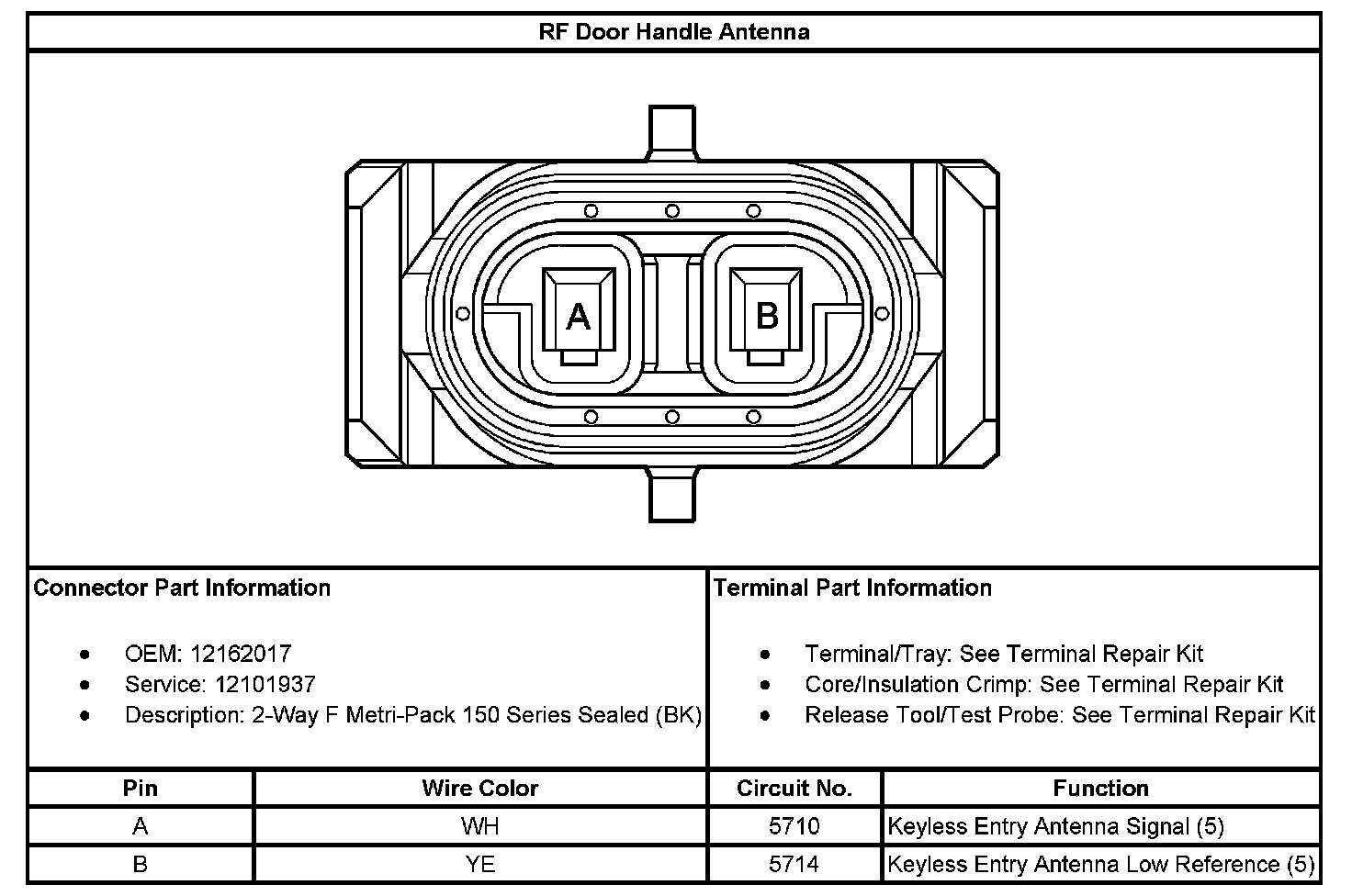

RF Door Handle Antenna:
