Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Accessories and Optional Equipment >> Relays and Modules - Accessories and Optional Equipment >> Parking Assist Control Module >> Diagrams

Parking Assist Control Module: Diagrams

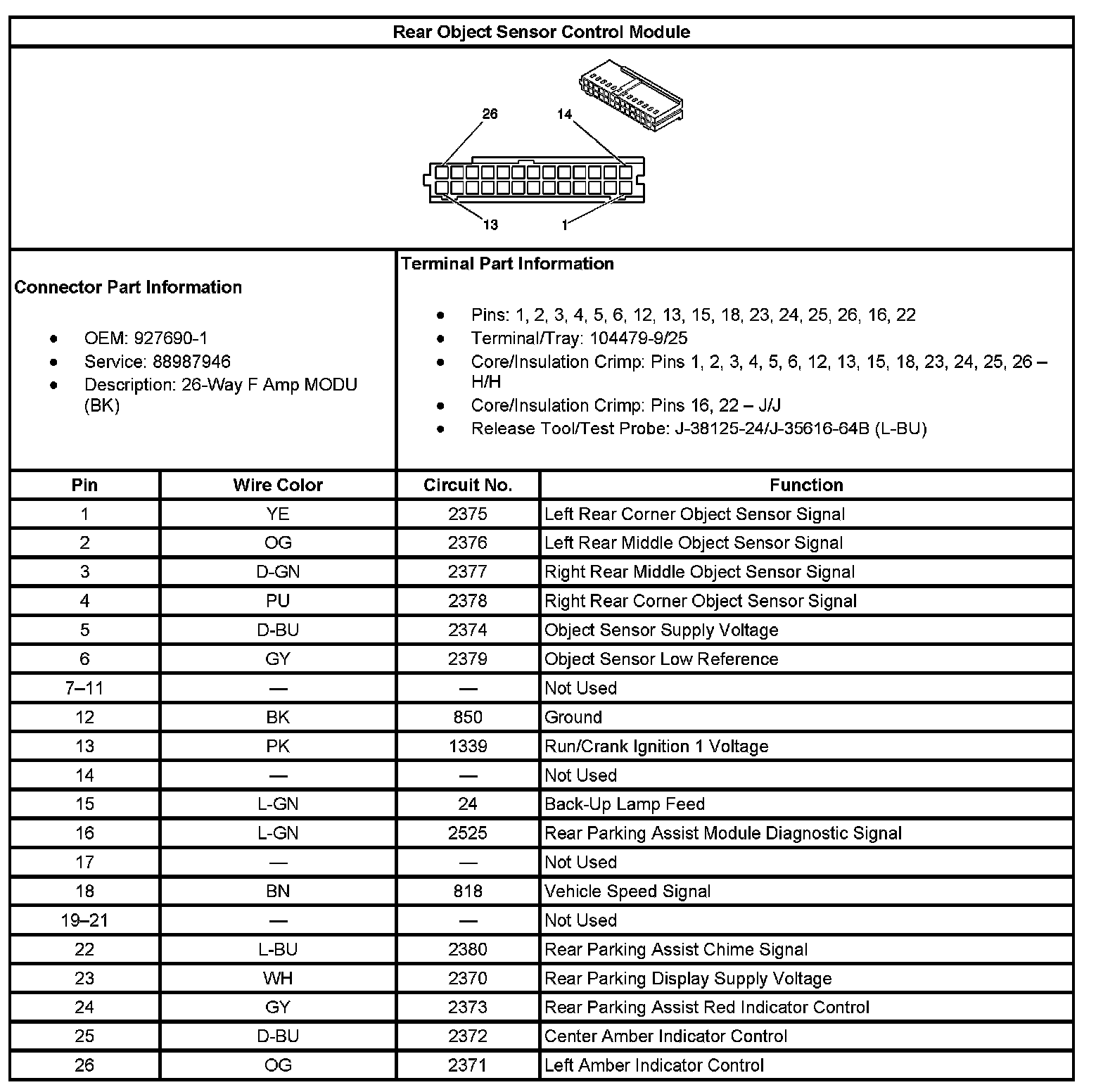

Rear Object Sensor Control Module:
