Scan Tool Output Controls

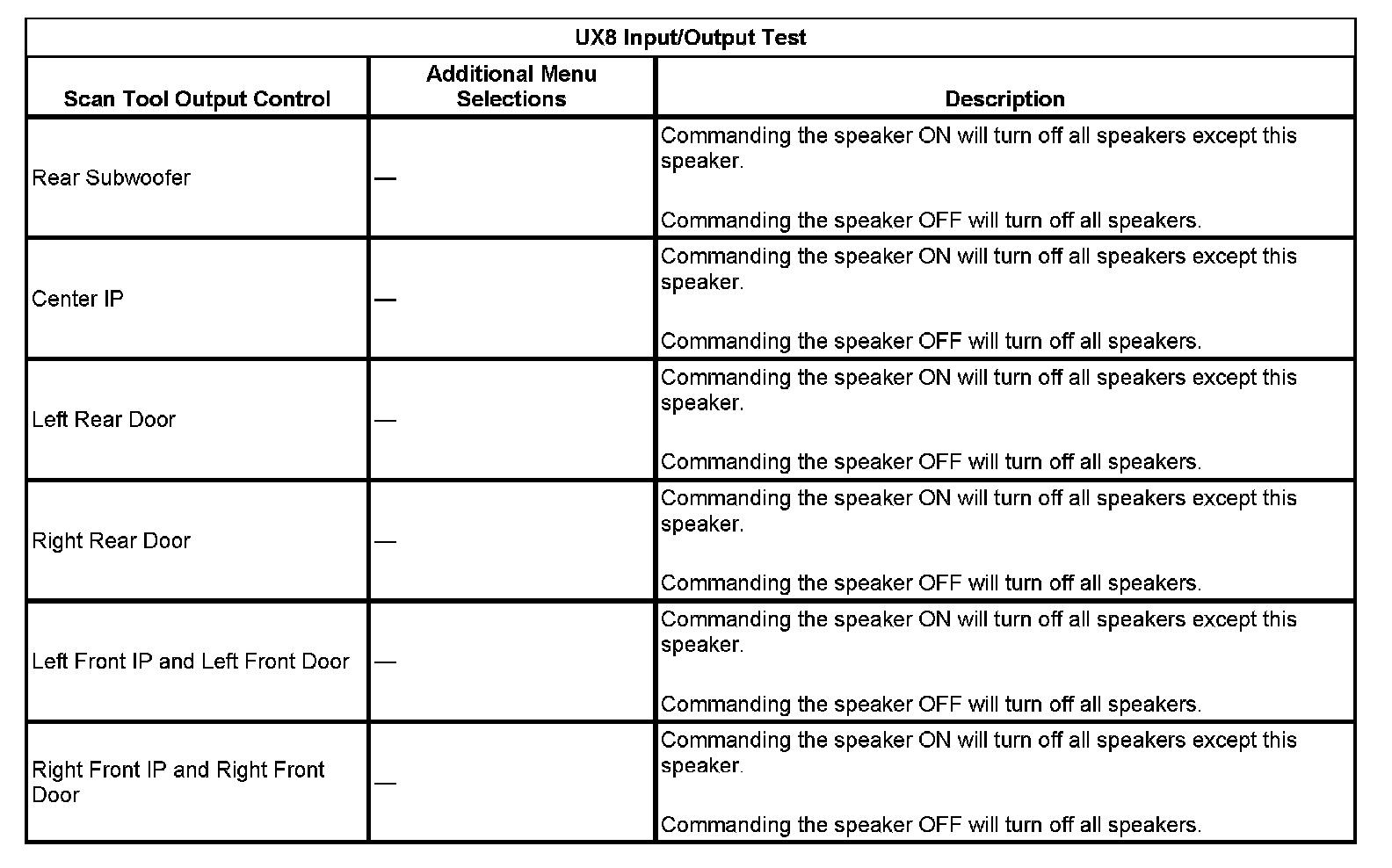

Input/Output Test (With RPO Code UX8):

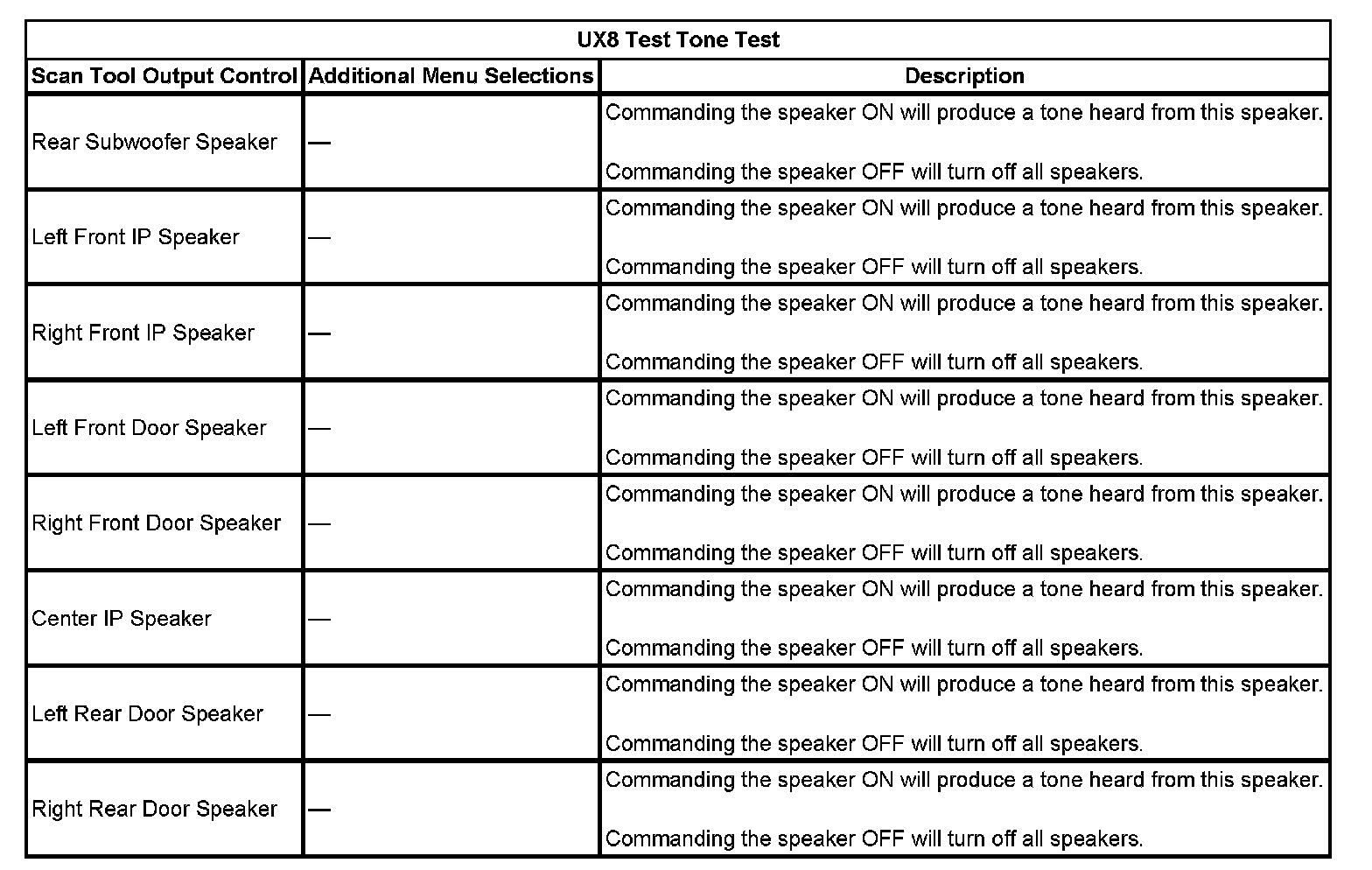

Test Tone Test (With RPO Code UX8):

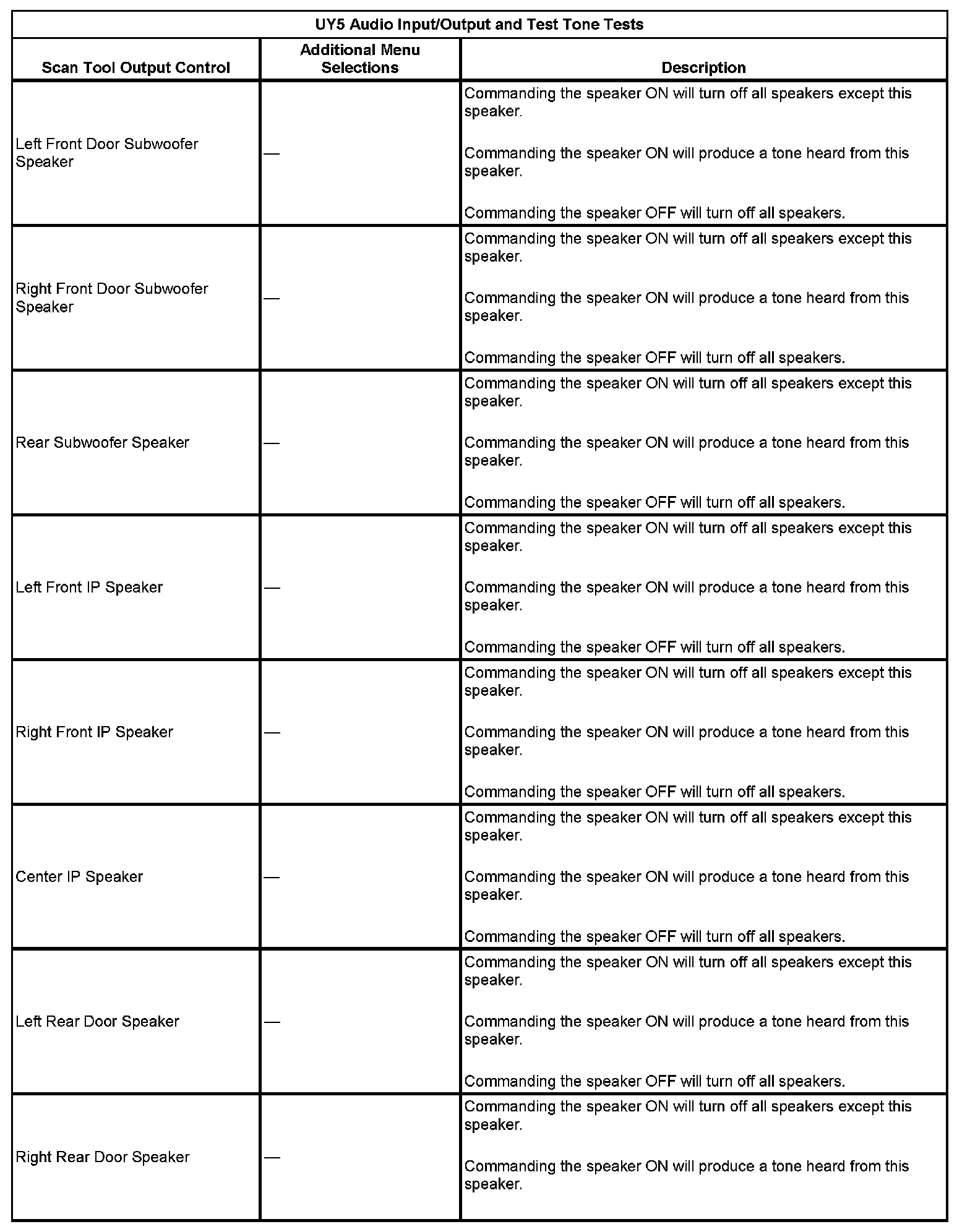

Audio Input/Output And Test Tone Tests (Part 1) (With RPO Code UY5):

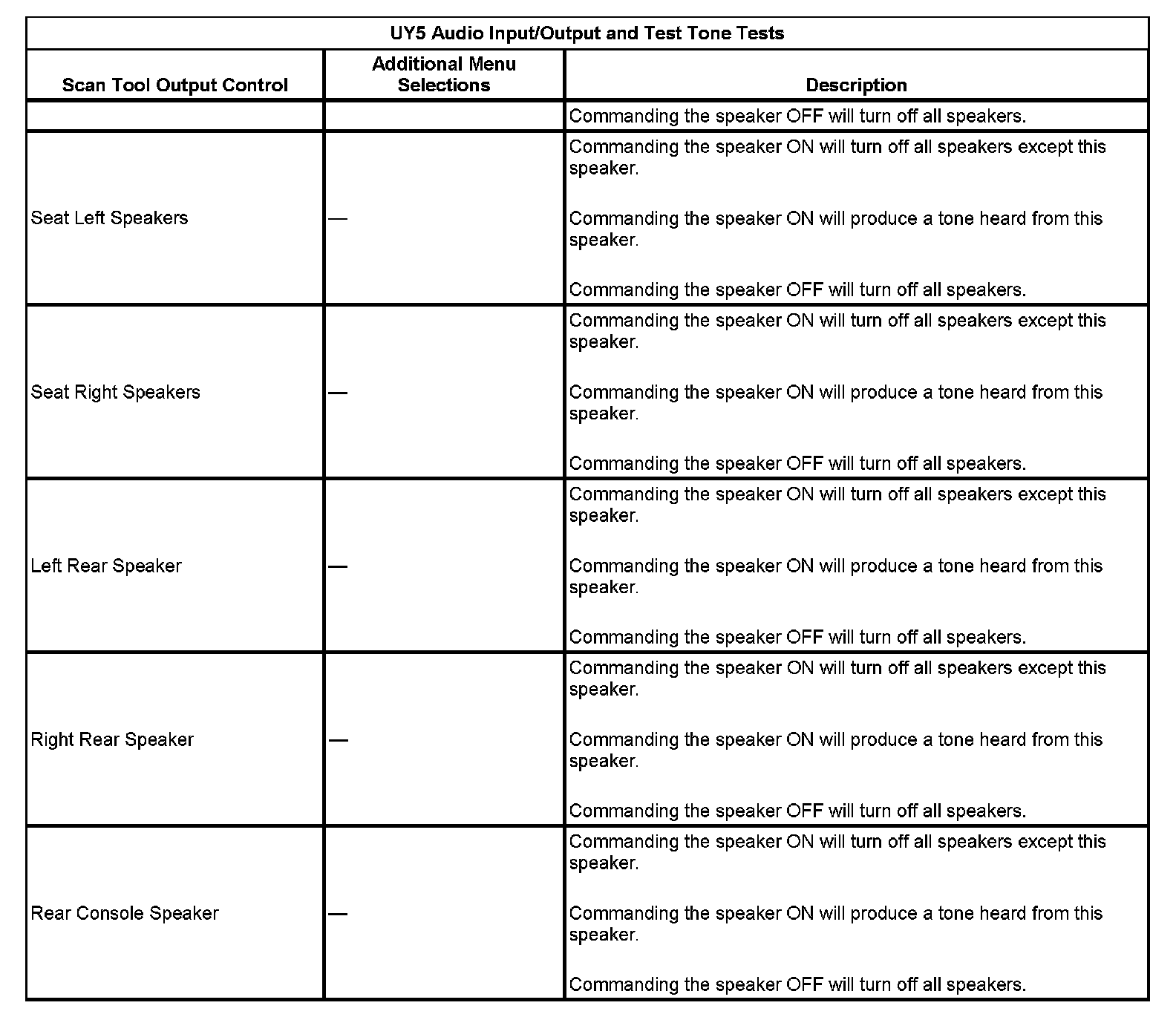

Audio Input/Output And Test Tone Tests (Part 2) (With RPO Code UY5):
