Microphone Replacement - Radio Volume Compensator Interior

MICROPHONE REPLACEMENT - RADIO VOLUME COMPENSATOR INTERIOR

REMOVAL PROCEDURE
1. Remove the overhead console.

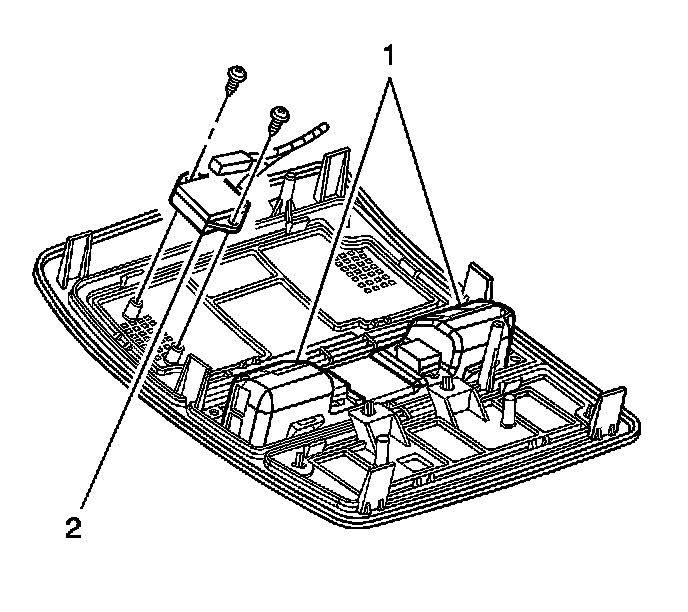

2. Remove the screws securing the microphone (2) to the overhead console.
3. Disconnect the electrical connector.

INSTALLATION PROCEDURE




1. Connect the electrical connectors.
2. Install the screws securing the microphone (2) to the overhead console.

Tighten the screws to 2 N.m (18 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the overhead console.
