Audio Amplifier - C2

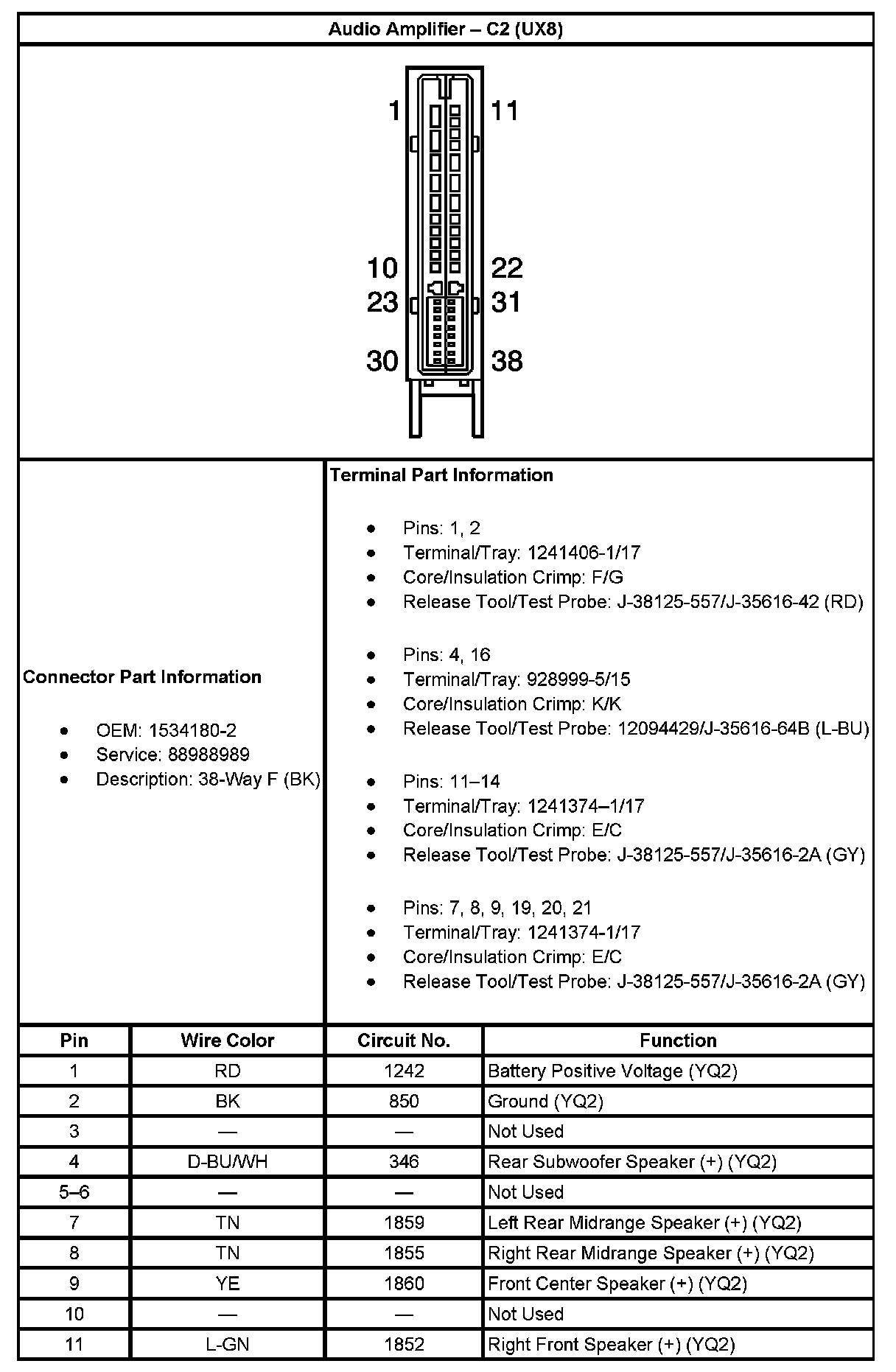

Audio Amplifier - C2 (With RPO Code UX8) (Part 1):

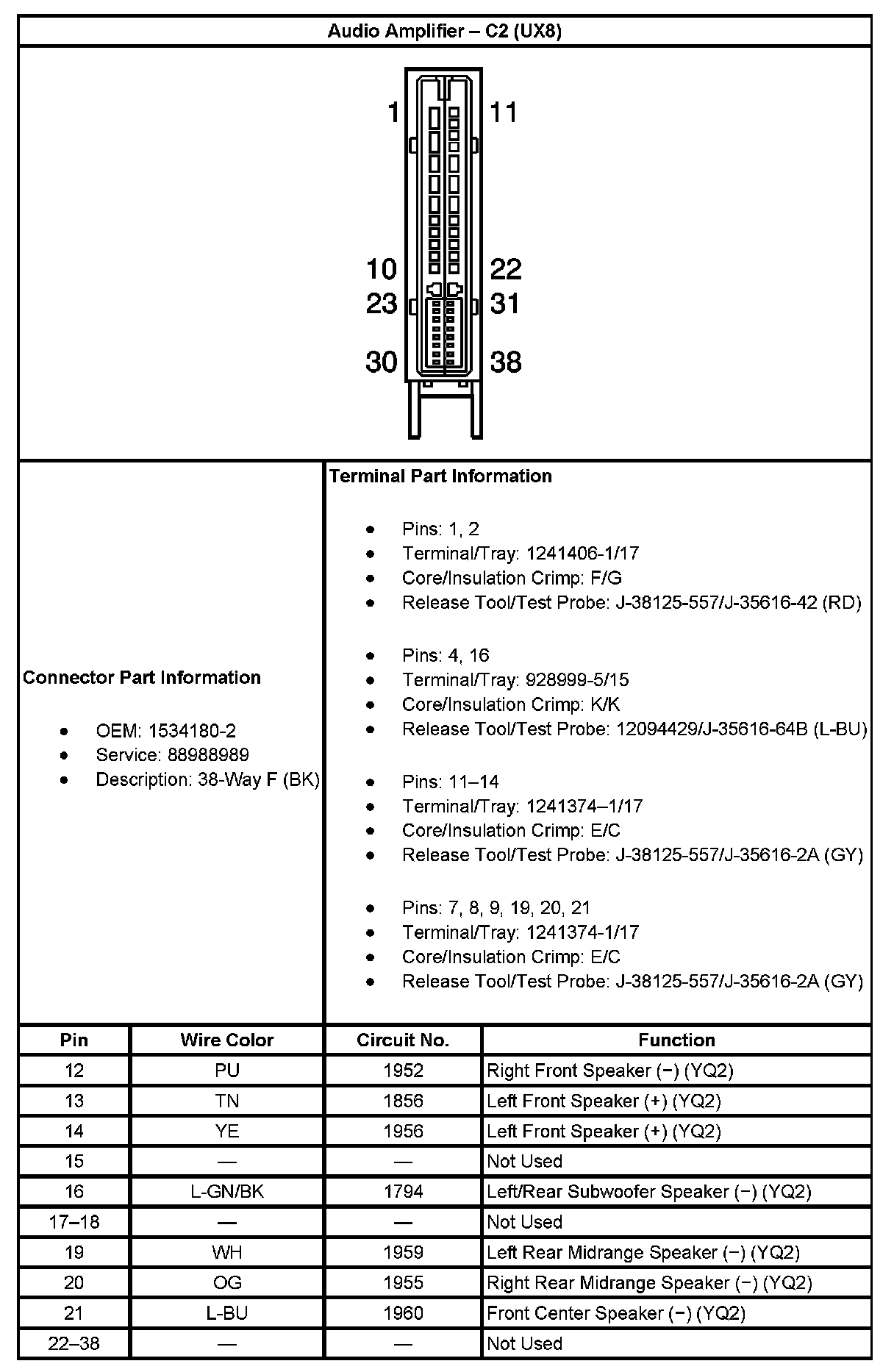

Audio Amplifier - C2 (With RPO Code UX8) (Part 2):

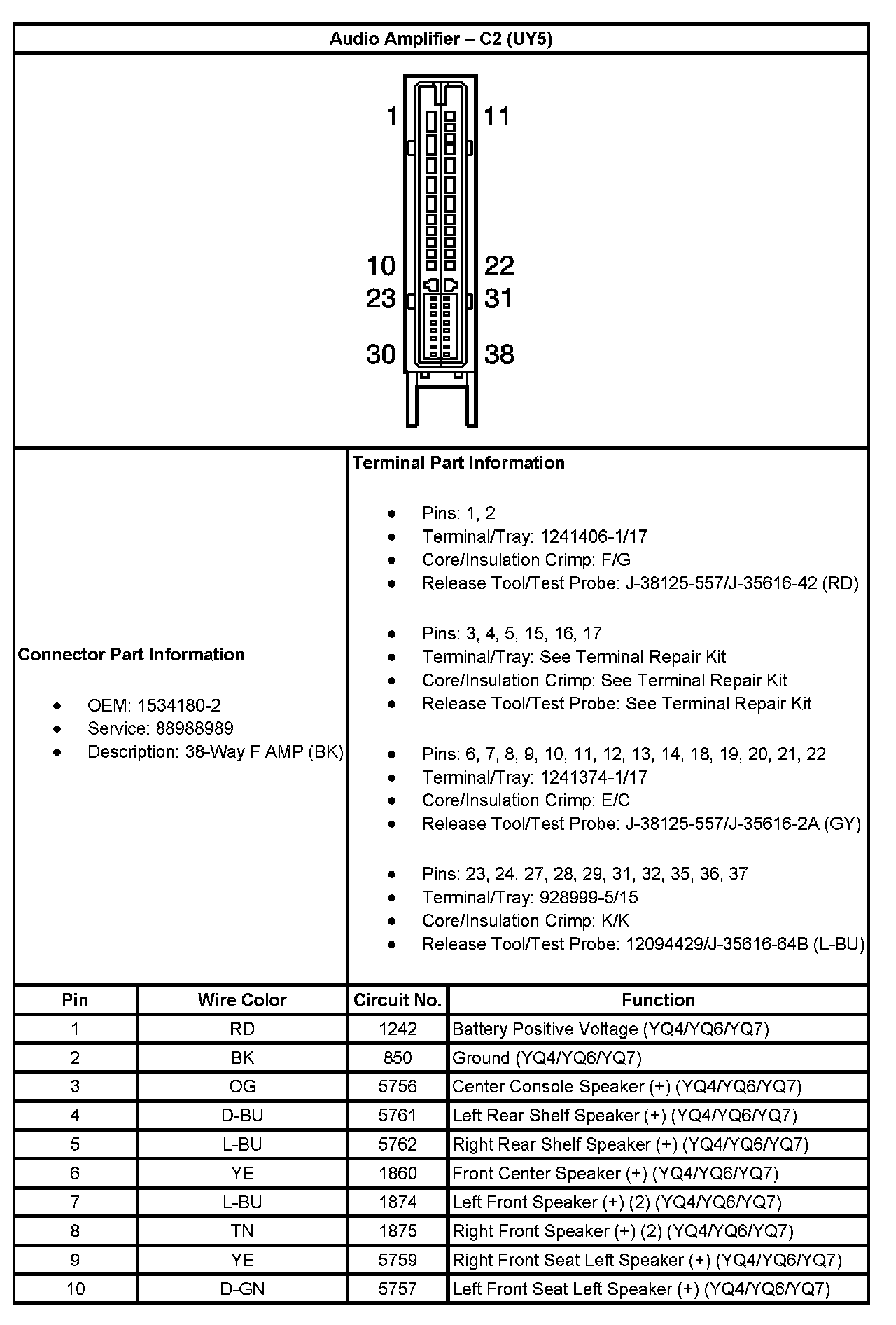

Audio Amplifier - C2 (With RPO Code UY5) (Part 1):

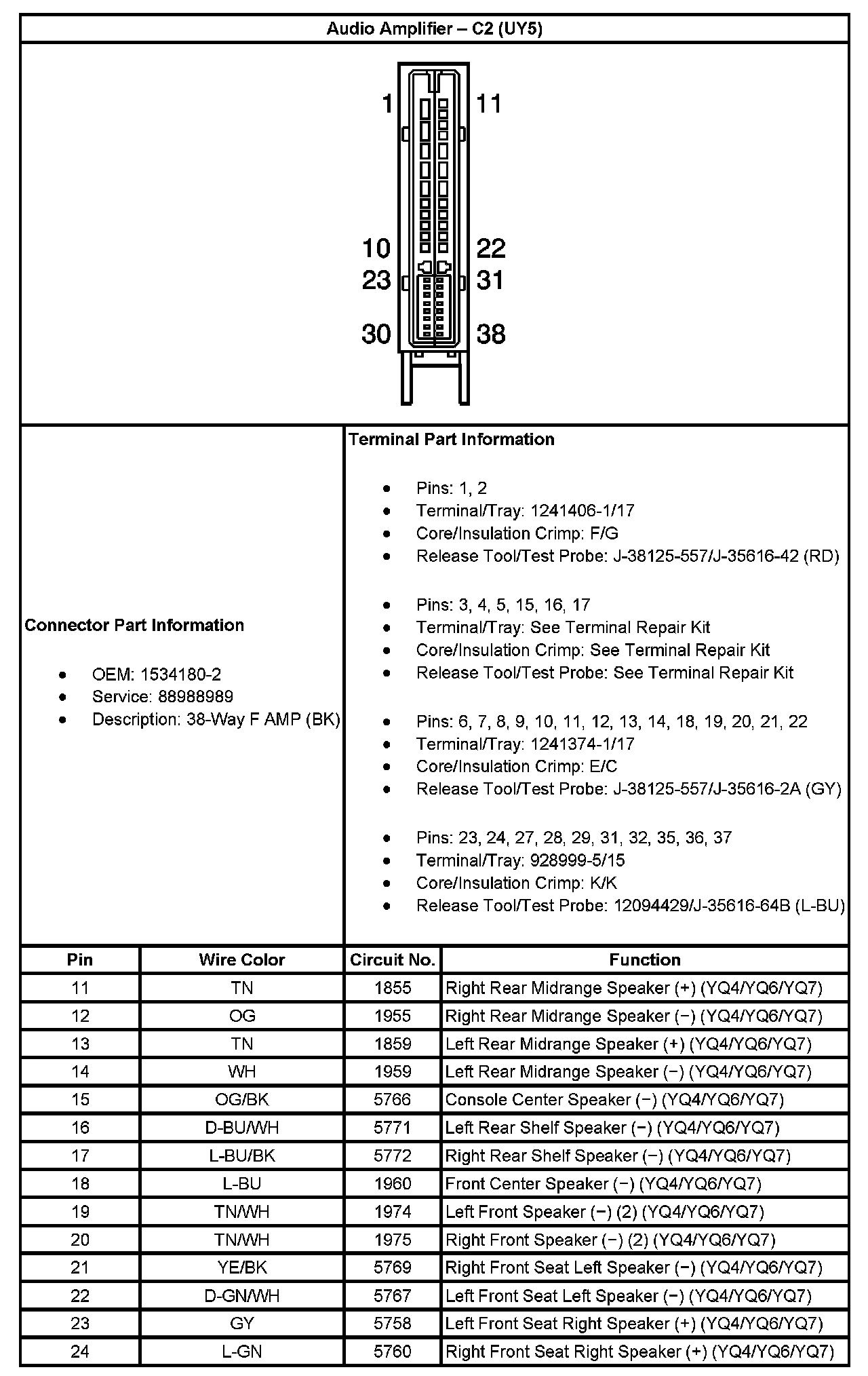

Audio Amplifier - C2 (With RPO Code UY5) (Part 2):

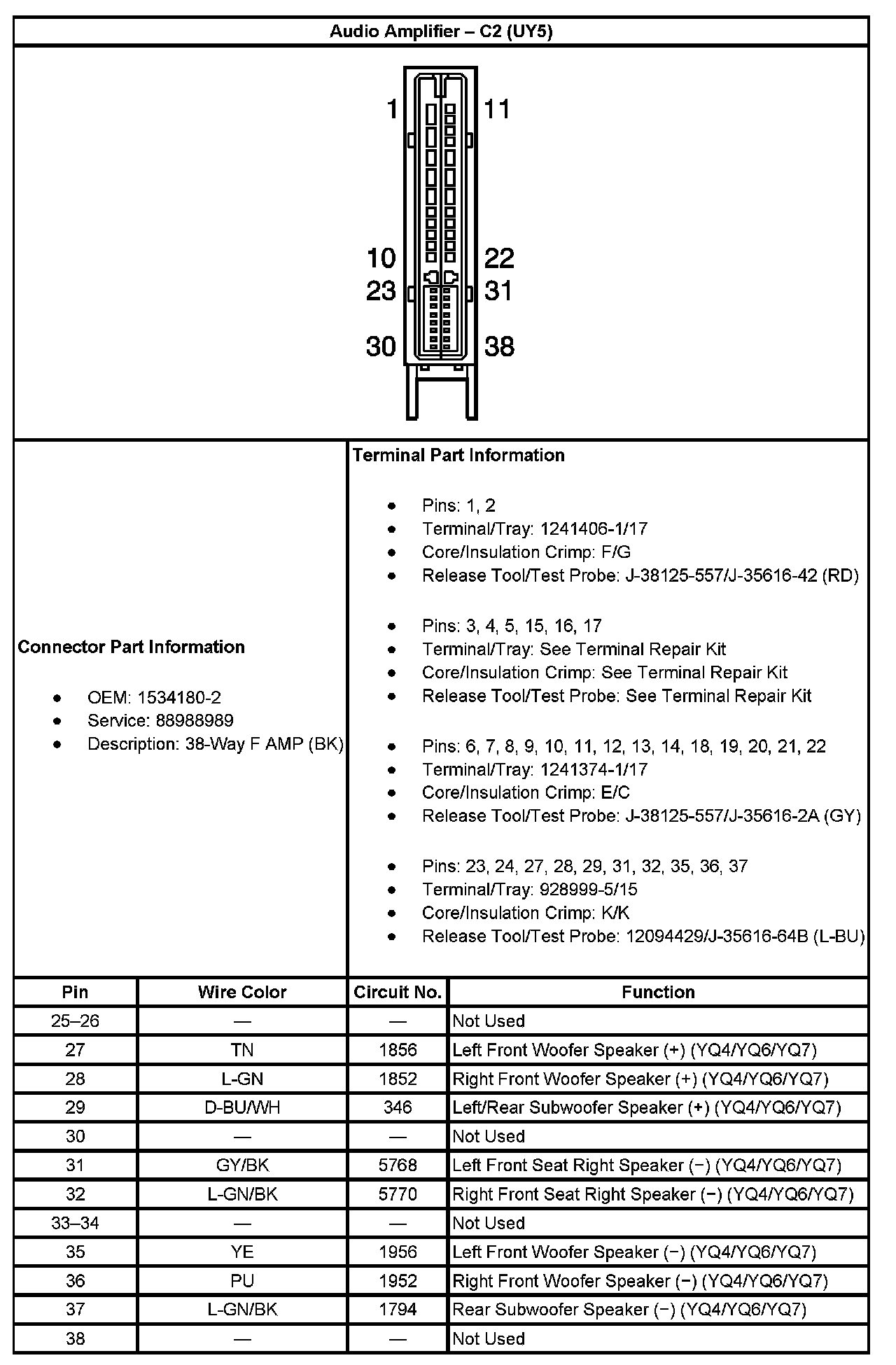

Audio Amplifier - C2 (With RPO Code UY5) (Part 3):
