Rear Parking Assist Malfunction



REAR PARKING ASSIST MALFUNCTION

DIAGNOSTIC AIDS
Before performing this procedure, ensure that the vehicle park brake is SET.

TEST

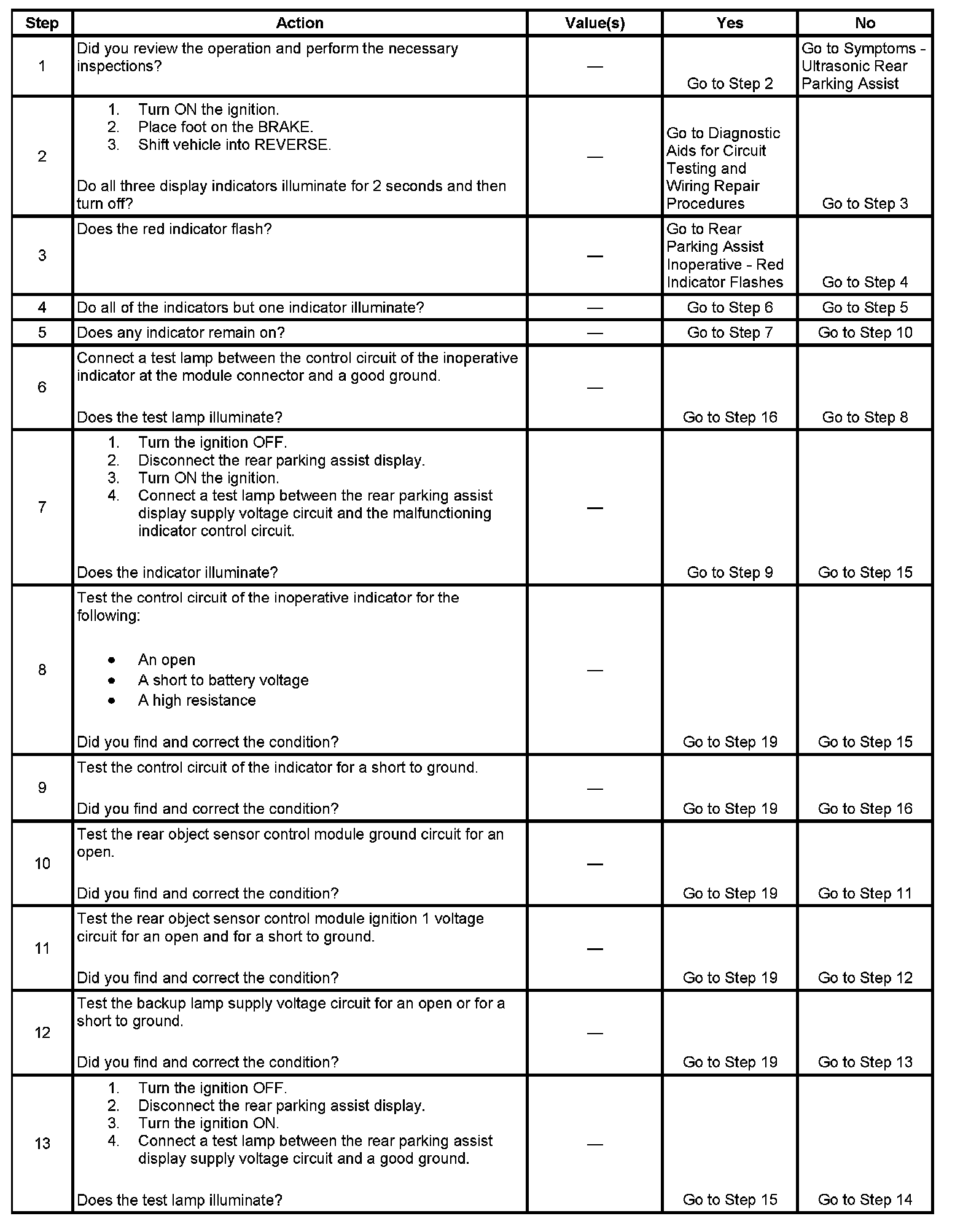

Step 1 - Step 13:

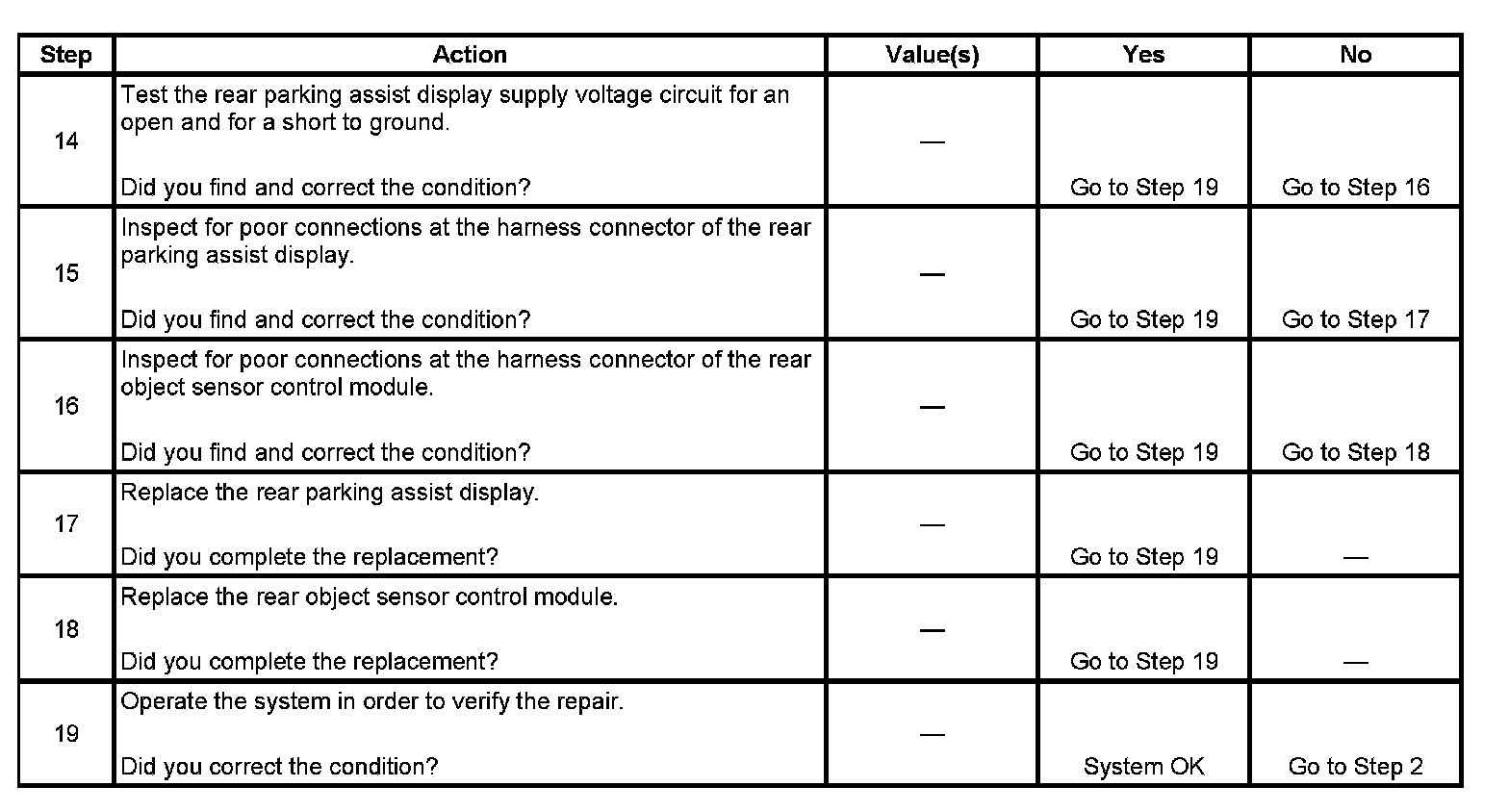

Step 14 - Step 19:
