Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Rear Parking Assist Inoperative - Red Indicator Flashes

Rear Parking Assist Inoperative - Red Indicator Flashes

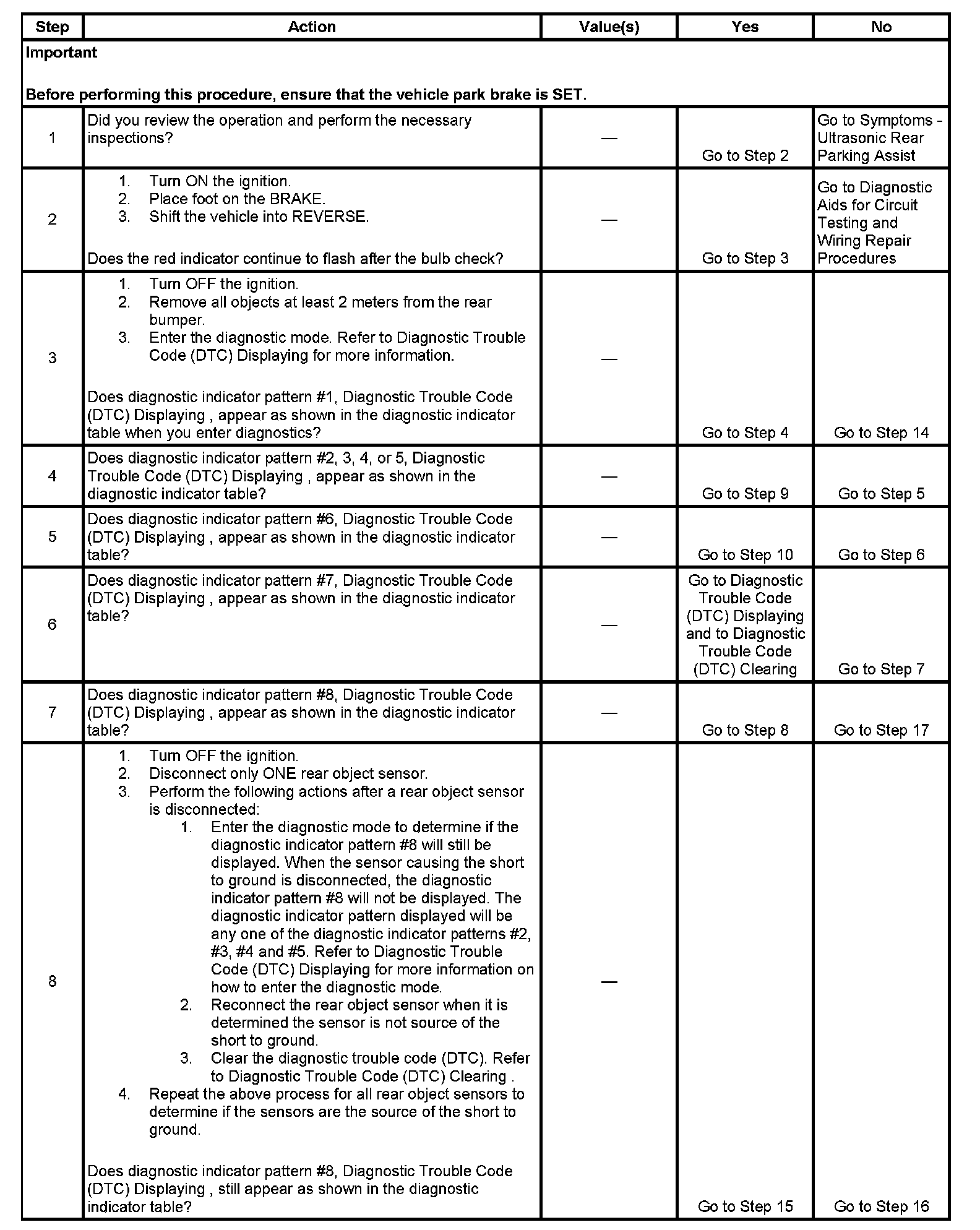

Step 1 - Step 8:

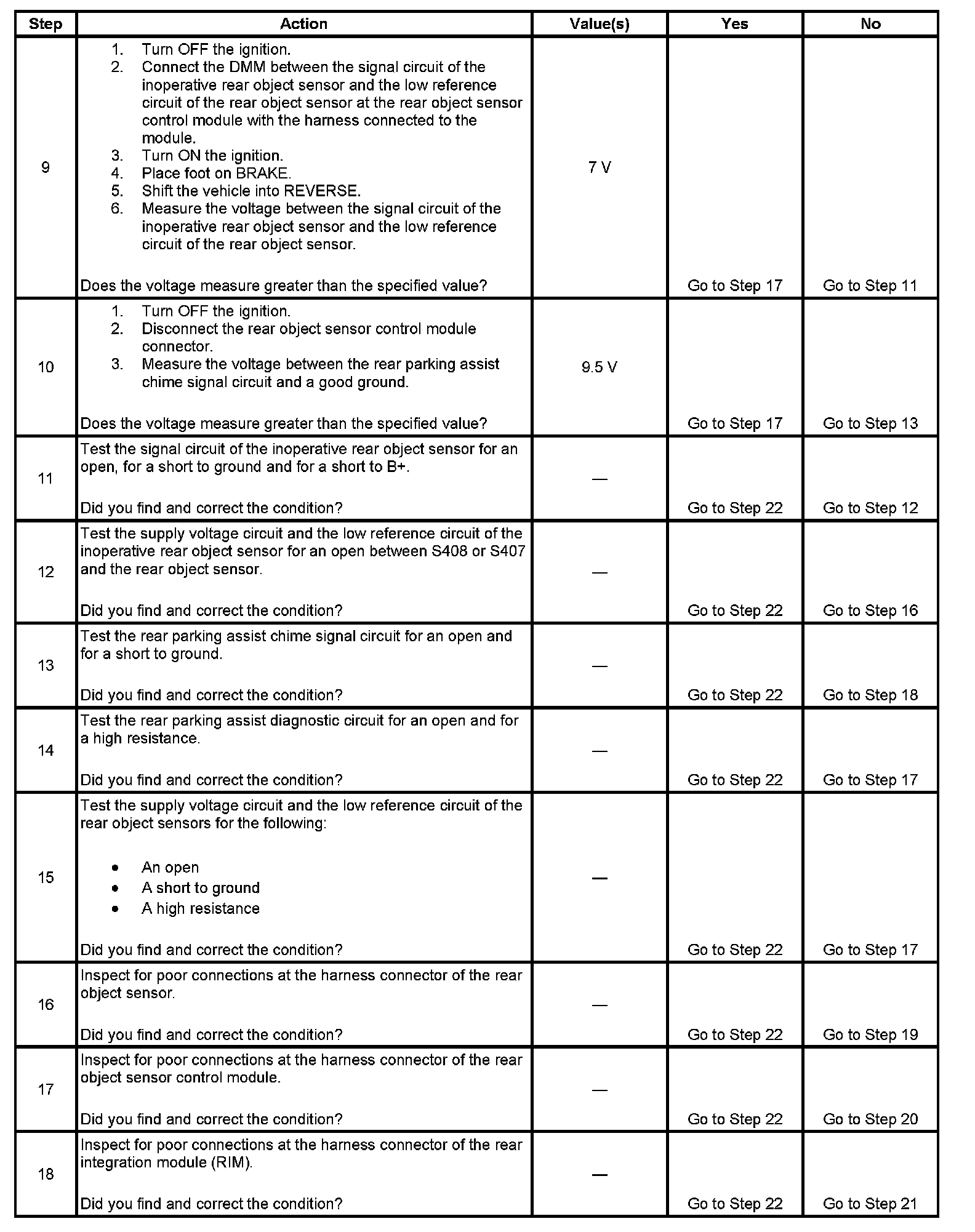

Step 9 - Step 18:



Step 19 - Step 22:
