Tow Sensor: Service and Repair

THEFT DETERRENT INCLINATION SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the right rear compartment trim.

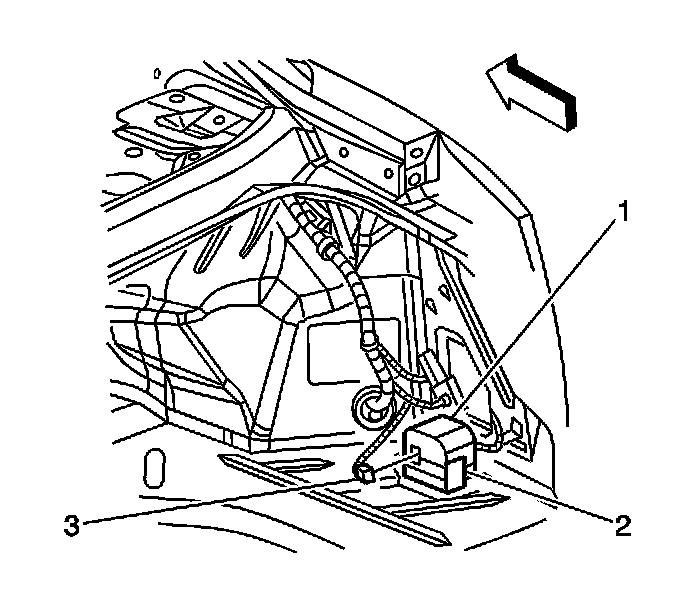

2. Remove the theft deterrent inclination sensor (2) from the theft deterrent alarm (1).
3. Disconnect the electrical connector from the sensor.
4. Remove the sensor from the vehicle.

INSTALLATION PROCEDURE




1. Reconnect the electrical connector to the sensor.
2. Install the inclination sensor (2) onto the theft deterrent alarm (1).
3. Install the rear compartment trim.
