Automatic Transmission Controls Schematics

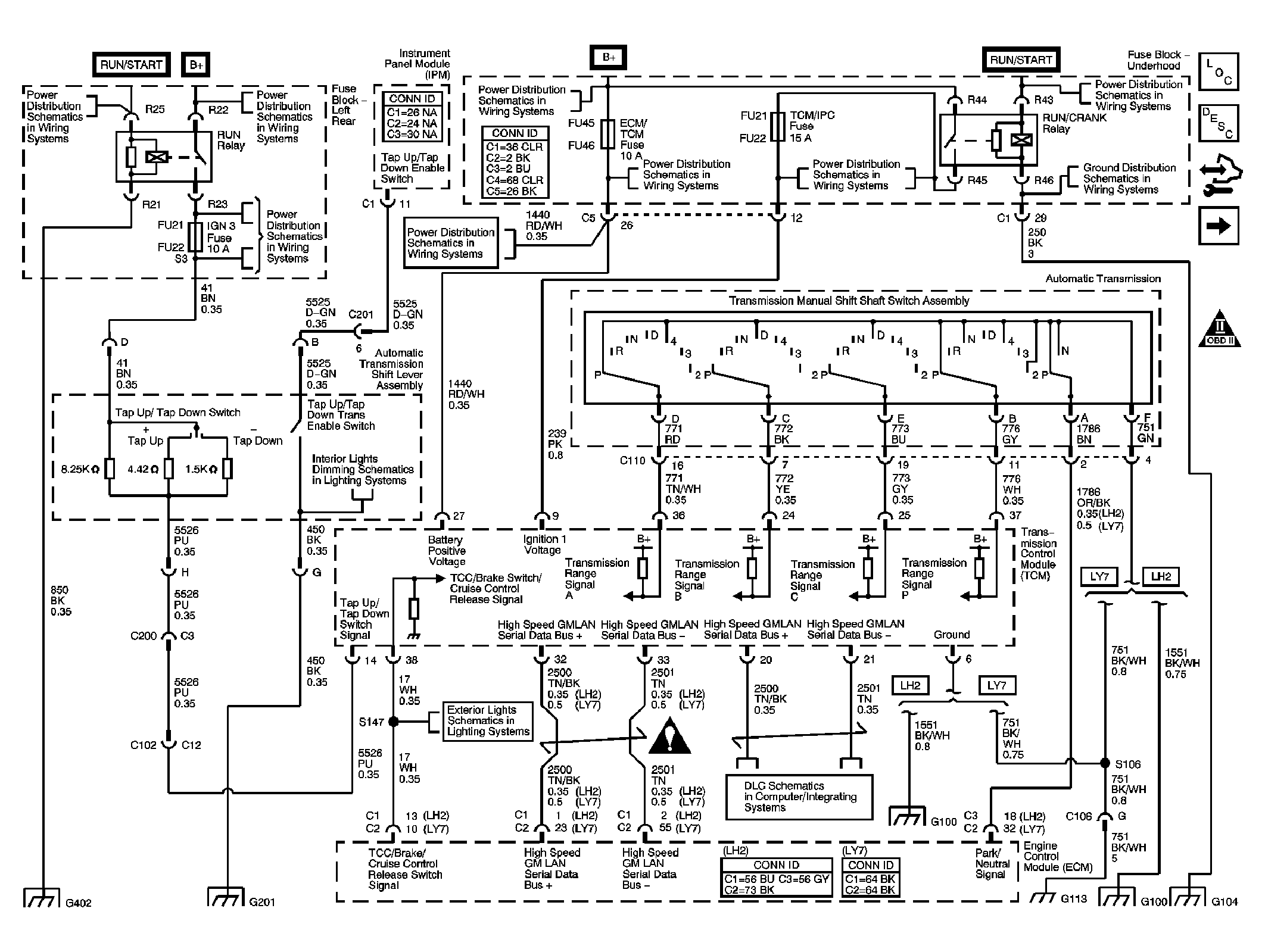

Fig 1: TCM Power, Grounds and DLC Schematic
GM1618718Courtesy of GENERAL MOTORS CORP.

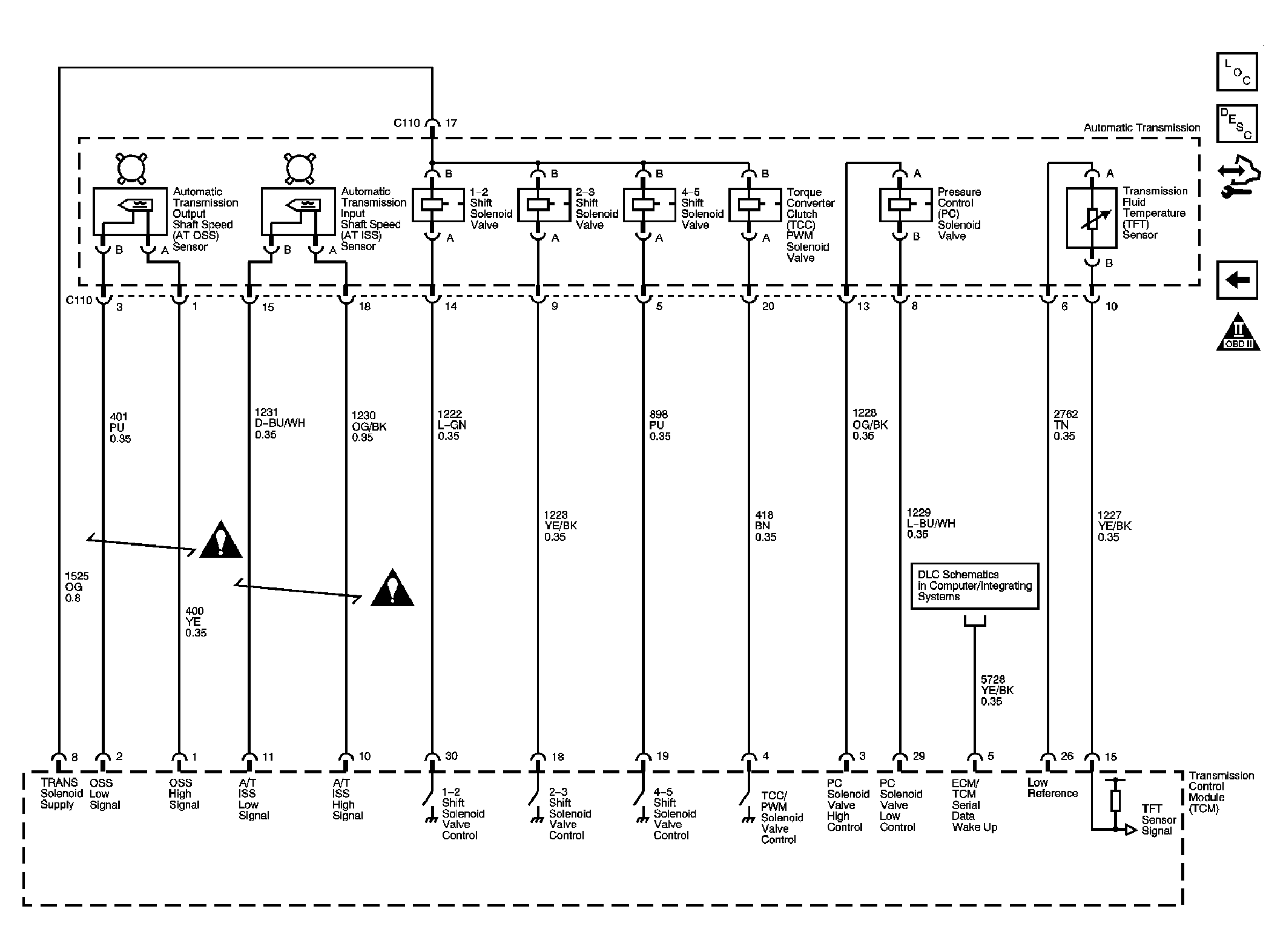

Fig 2: Transmission Sensors and Solenoids Schematic
GM1618709Courtesy of GENERAL MOTORS CORP.
