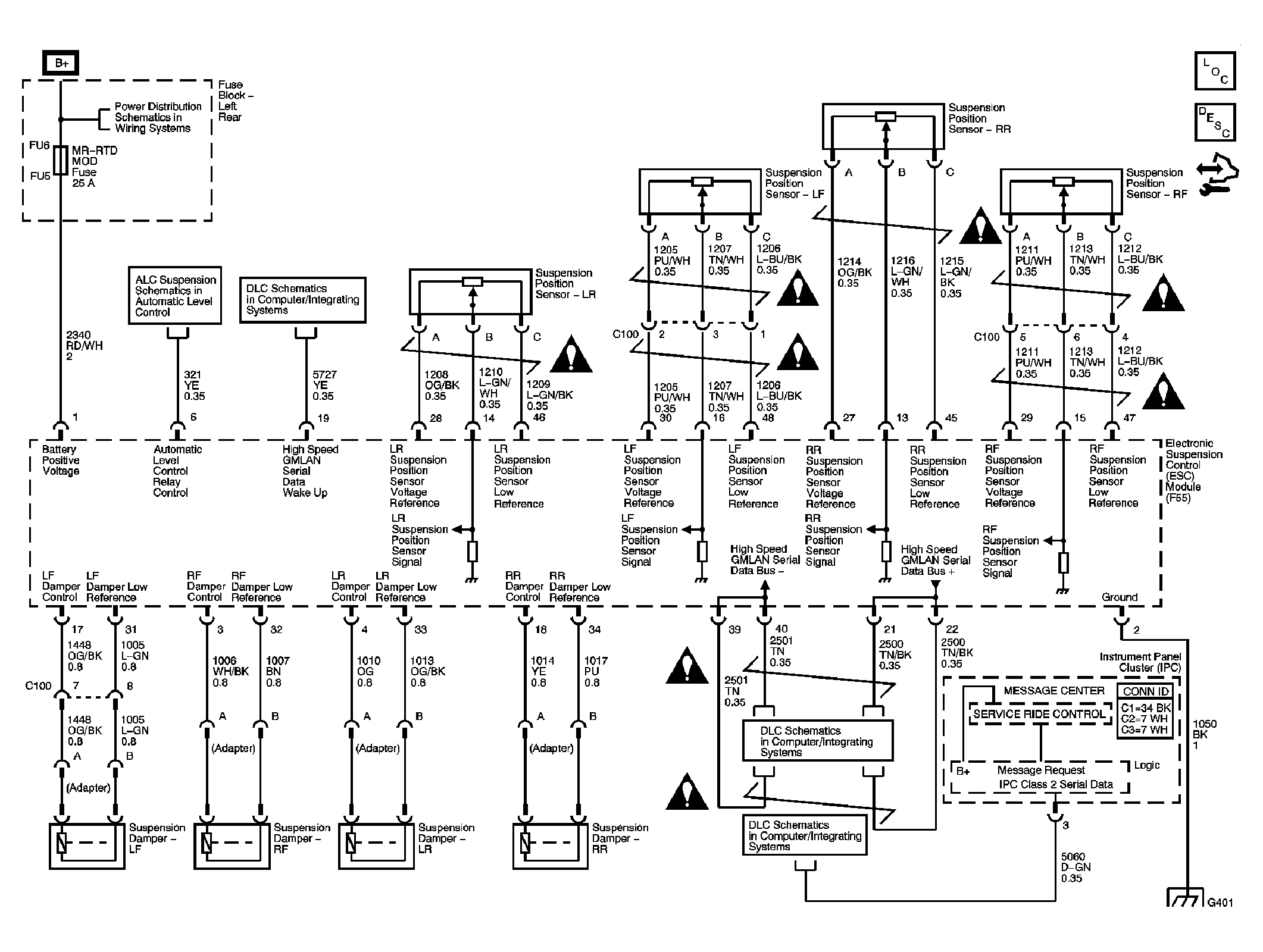

Home >> Cadillac >> 2006 >> STS Base, 3.6 7, RWD >> Repair and Diagnosis >> Suspension >> Electronic Suspension >> Suspension Control System - Suspension Damping >> Schematic and Routing Diagrams >> Suspension Controls Schematics
