SIR Schematics

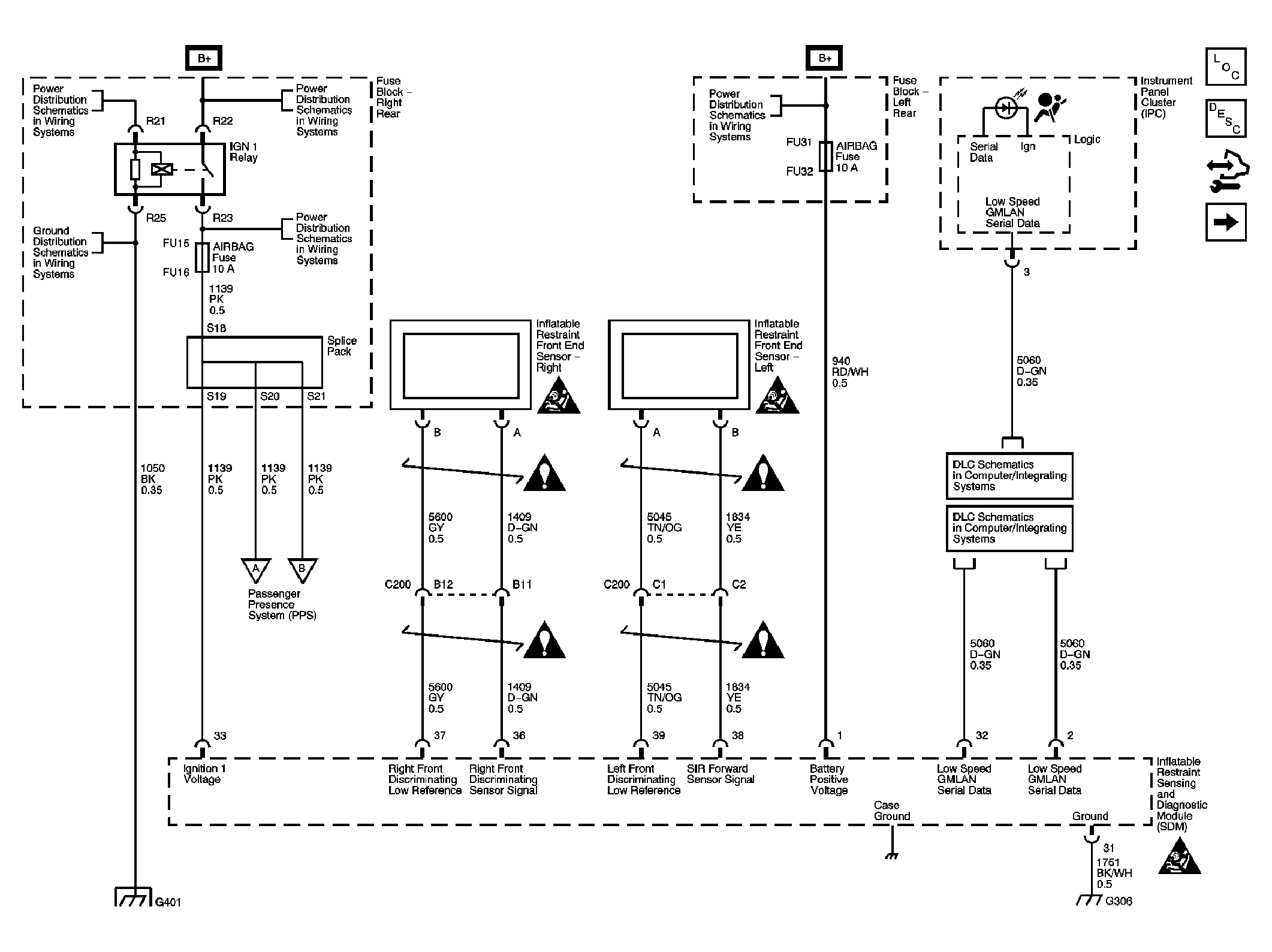

Fig 1: Power, Ground, DLC, Indicator and Front End Sensors
GM1619115Courtesy of GENERAL MOTORS CORP.

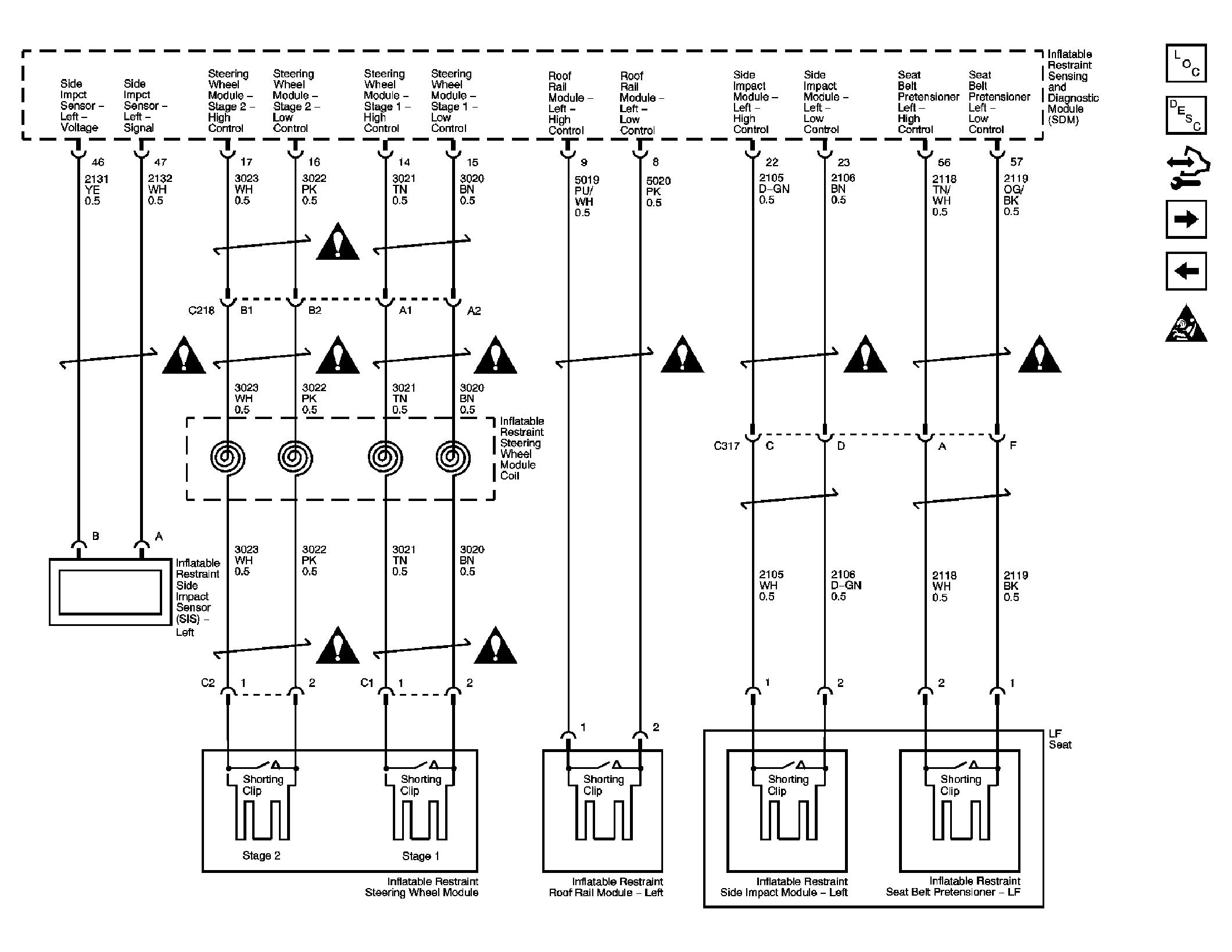

Fig 2: Left Side Modules and Sensors
GM1619118Courtesy of GENERAL MOTORS CORP.

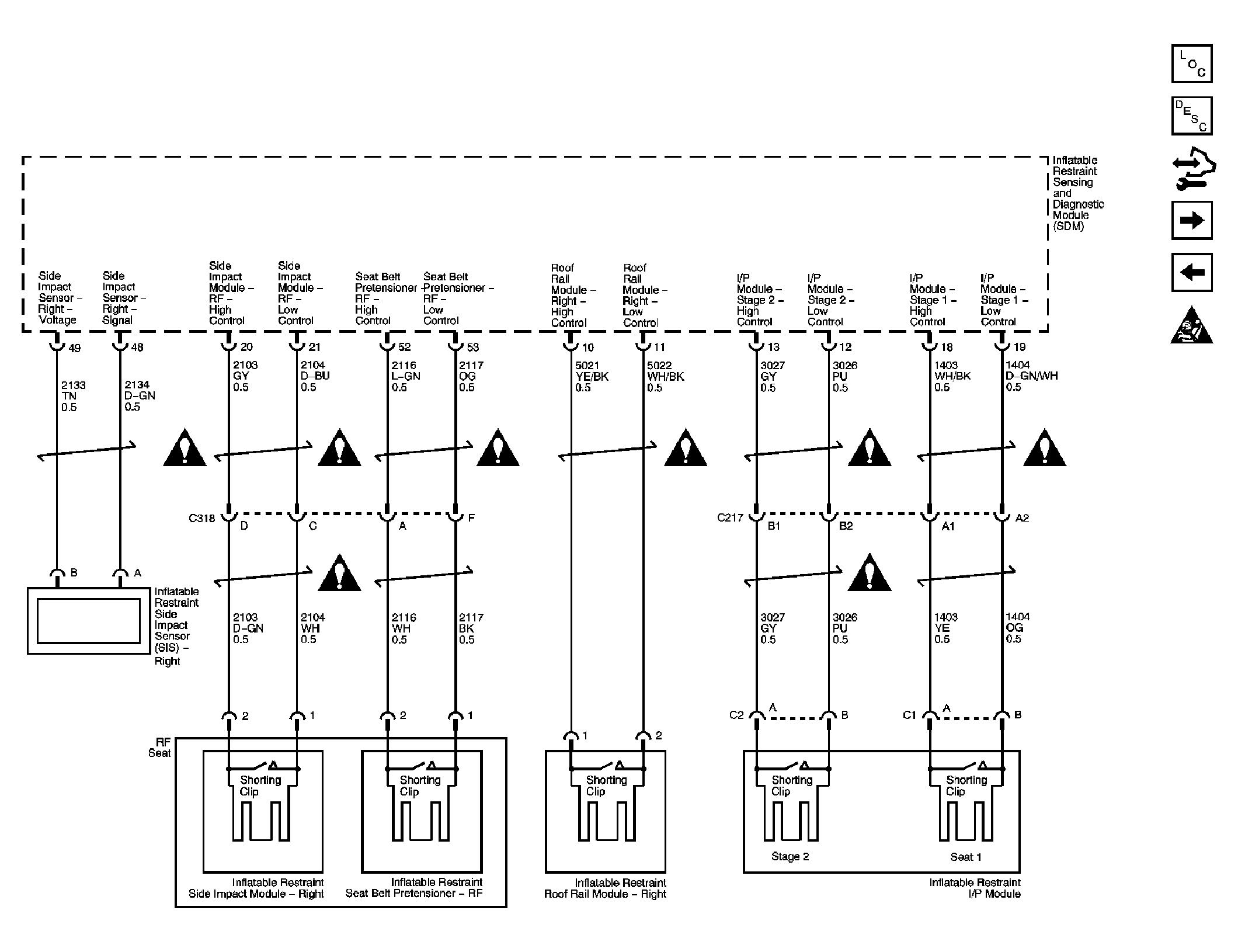

Fig 3: Right Side Modules and Sensors
GM1619114Courtesy of GENERAL MOTORS CORP.

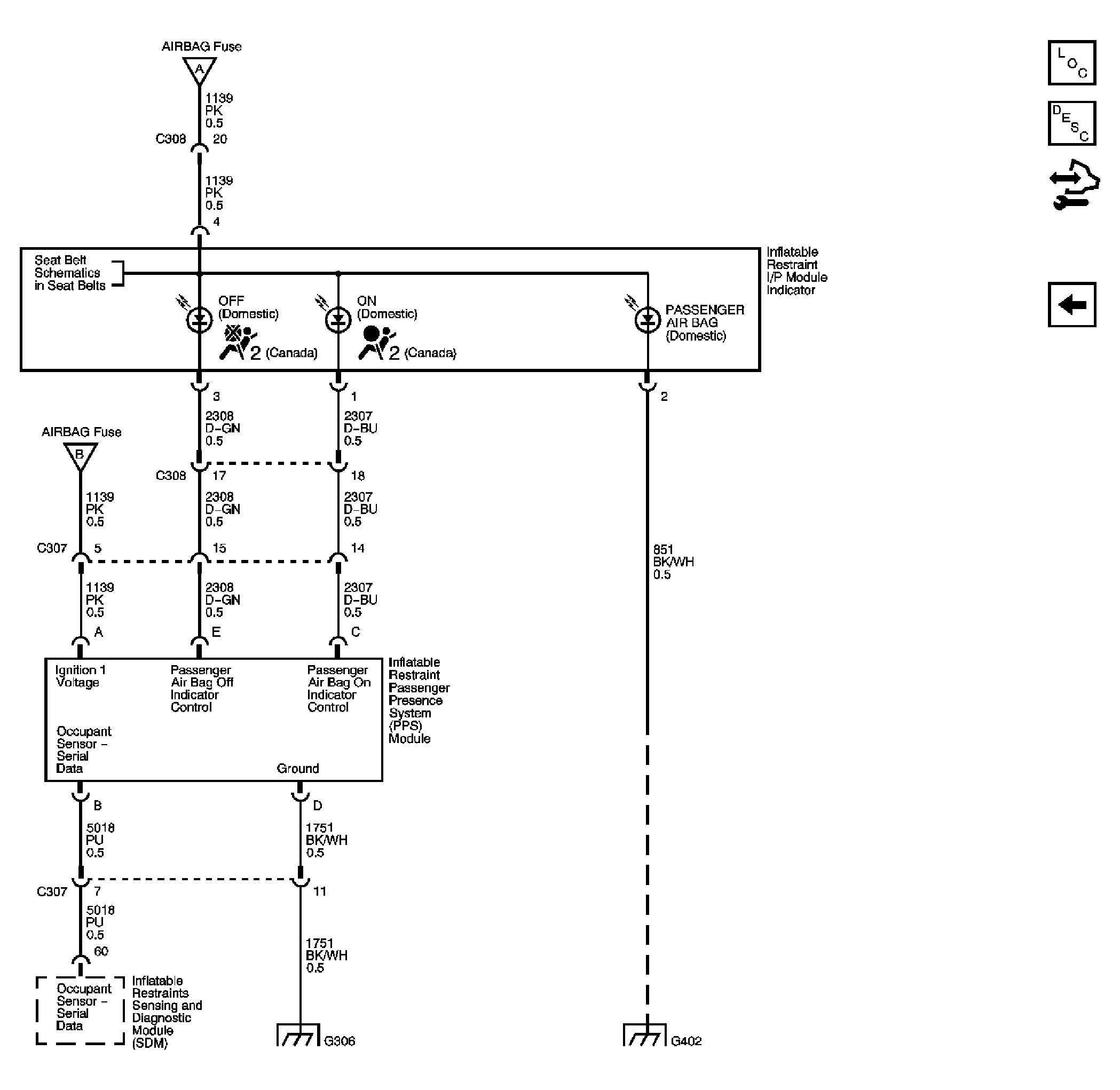

Fig 4: Passenger Presence System (PPS)
GM1663274Courtesy of GENERAL MOTORS CORP.
