HVAC Schematics

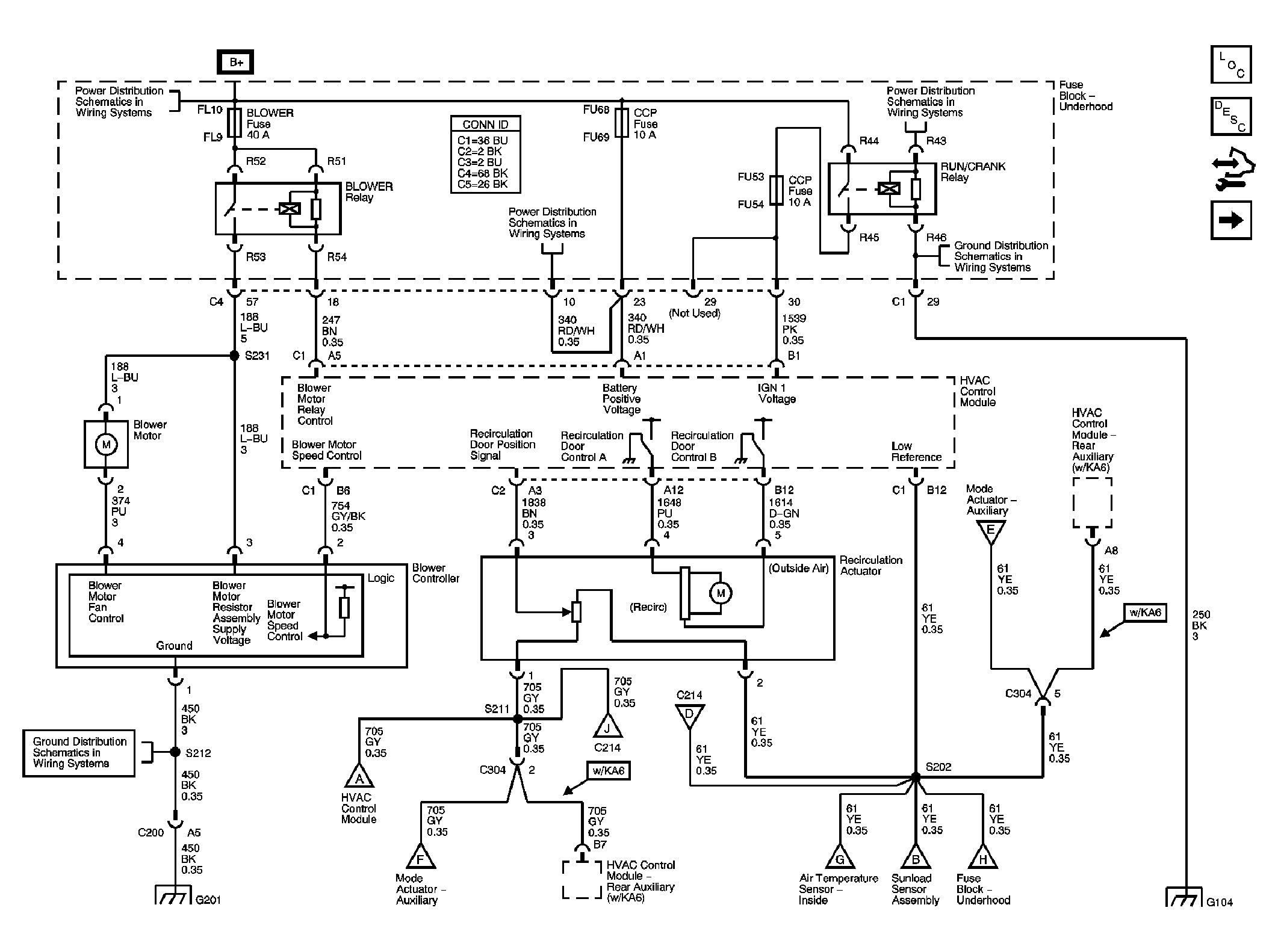

Fig 1: Power, Ground, Blower Motor, Recirculation Actuator

Courtesy of GENERAL MOTORS CORP.

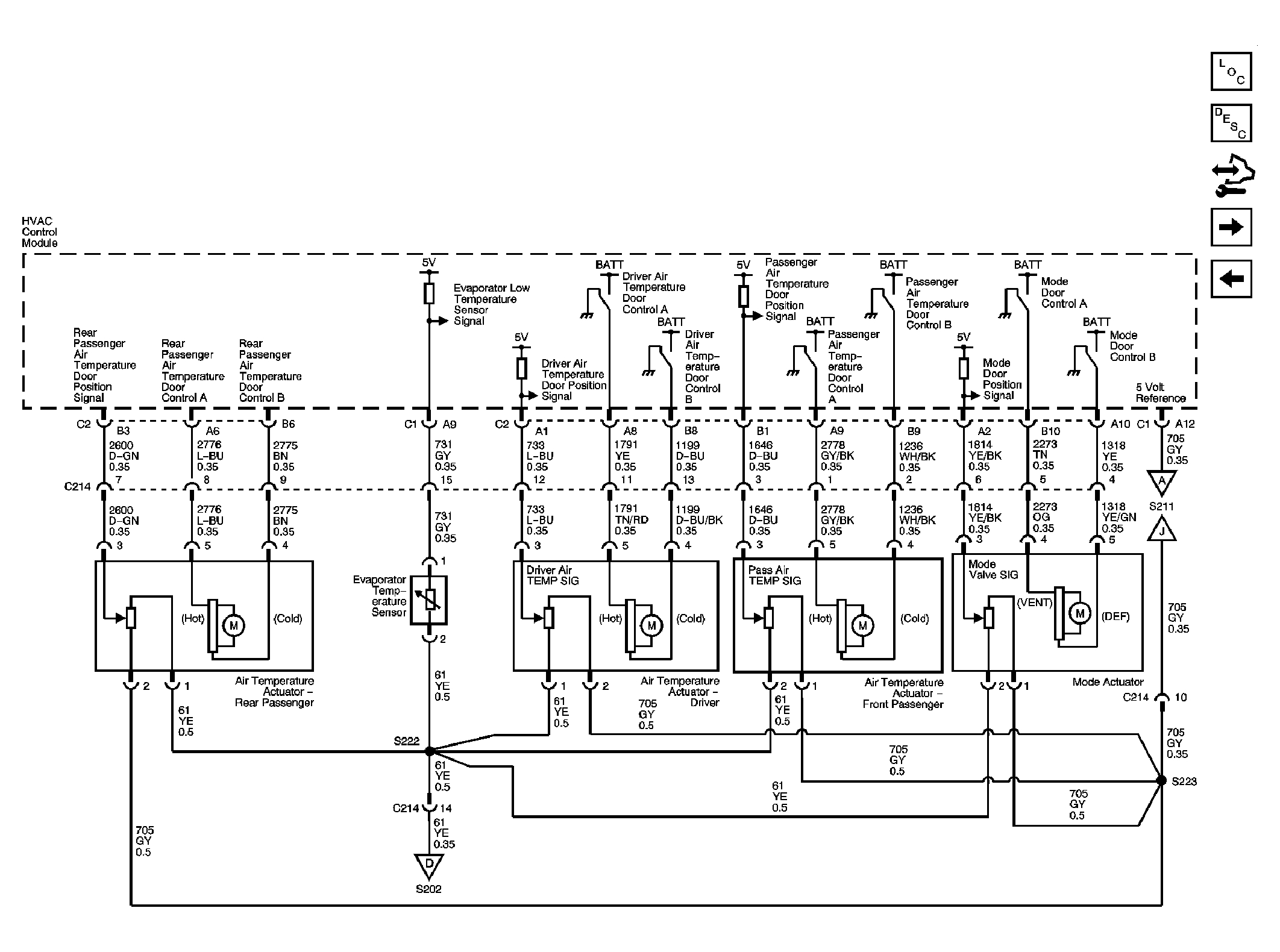

Fig 2: Air Delivery, EVAP Temperature Sensor, Rear Passenger Air Temperature Actuator

Courtesy of GENERAL MOTORS CORP.

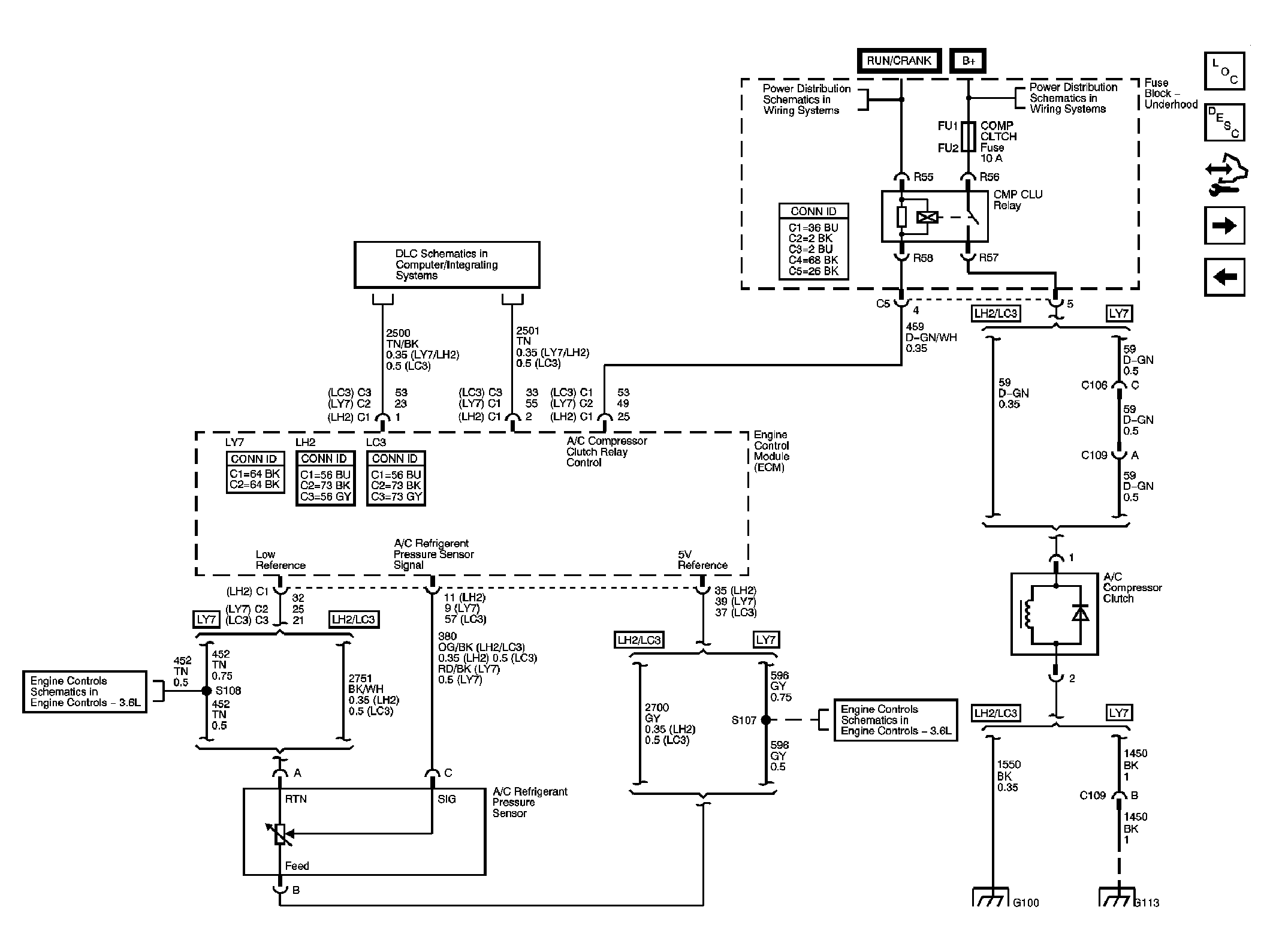

Fig 3: A/C Refrigerant Pressure Sensor and Compressor Clutch

Courtesy of GENERAL MOTORS CORP.

Fig 4: DLC, Temperature Controls, Sunload Sensor

Courtesy of GENERAL MOTORS CORP.

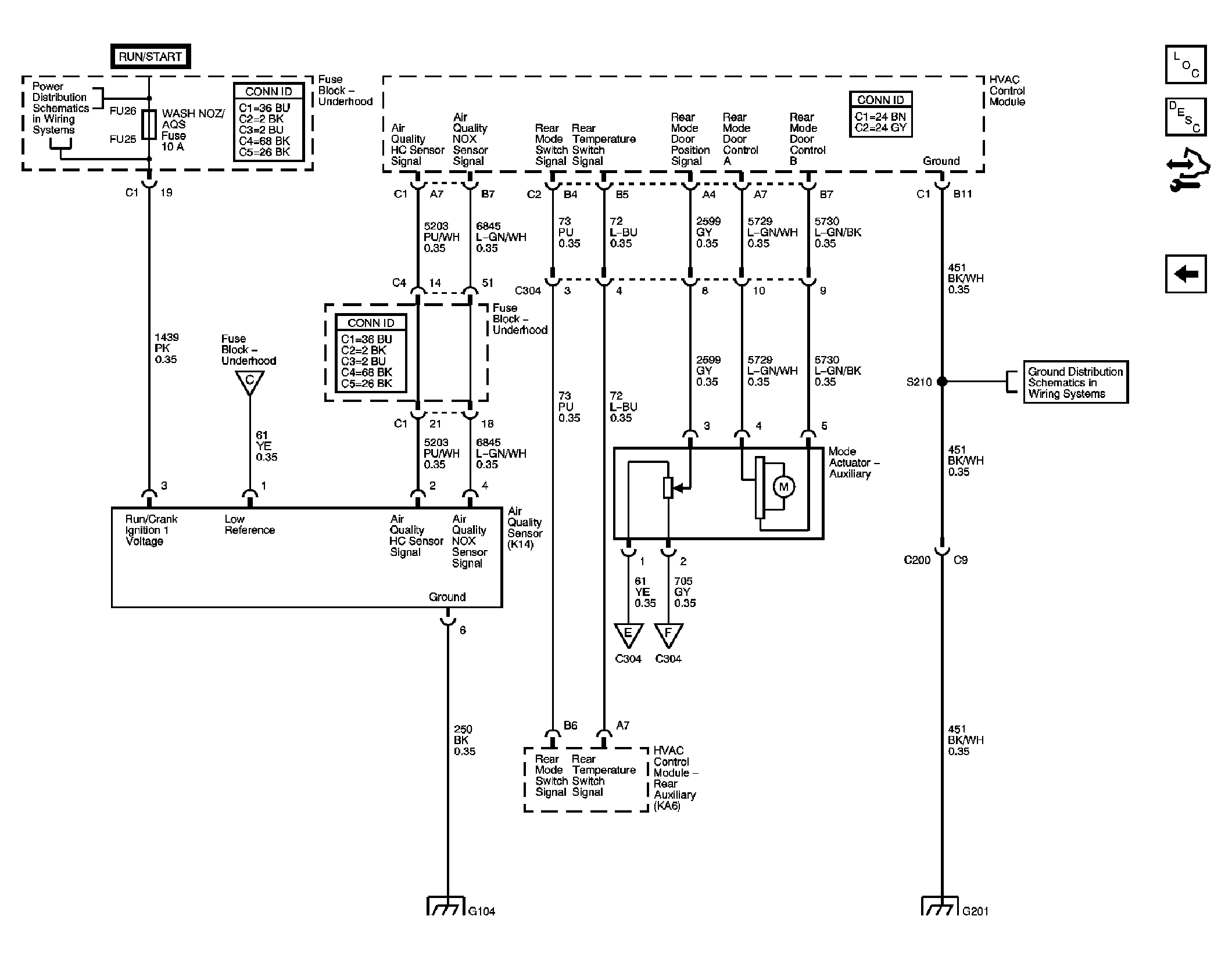

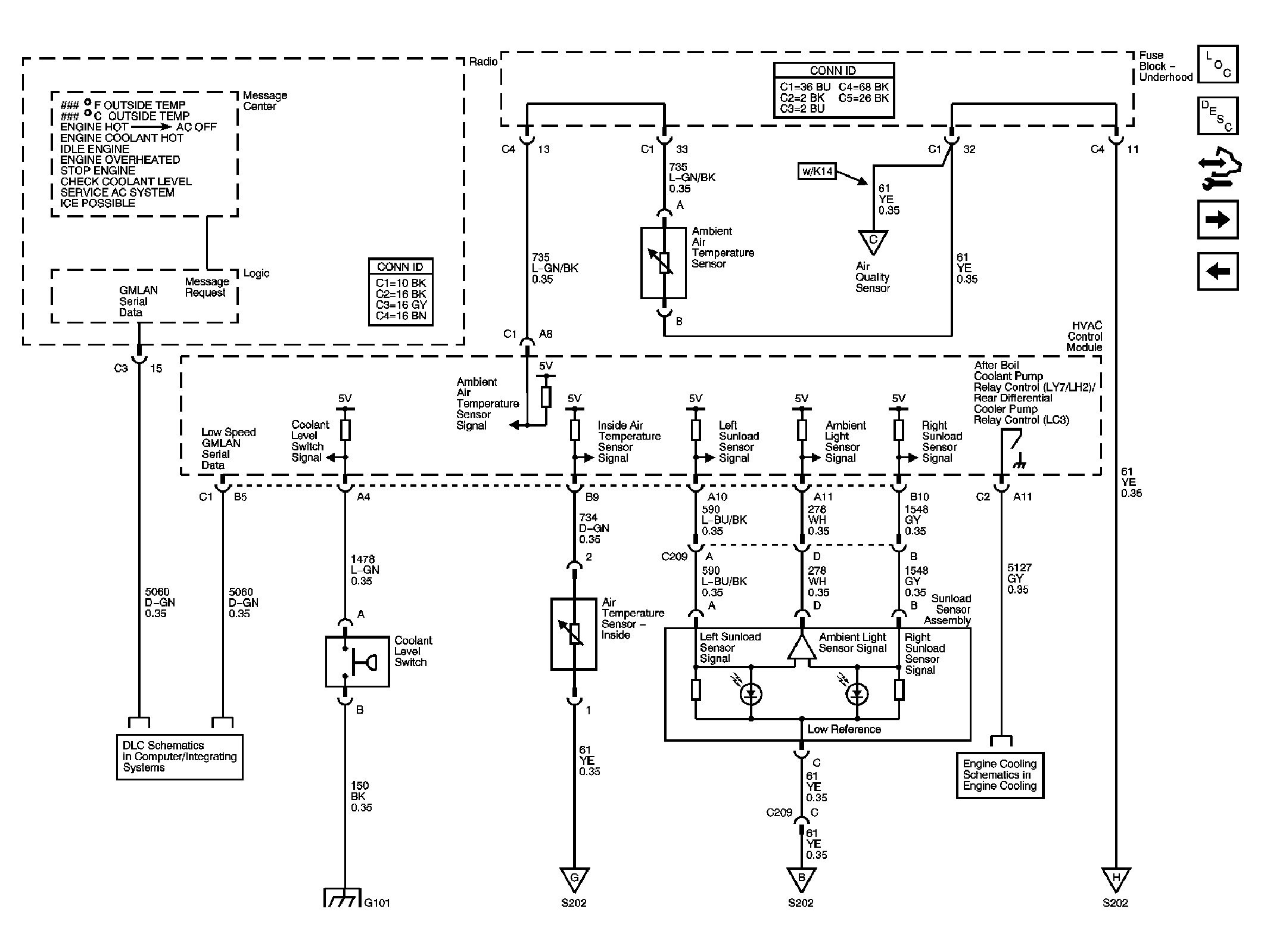

Fig 5: Air Quality Sensor, Rear Mode Motor

Courtesy of GENERAL MOTORS CORP.
