Engine Verification

WARNING: This page is about a different variant/trim than selected.

The engine verification label is placed in two locations on the right side of the engine.

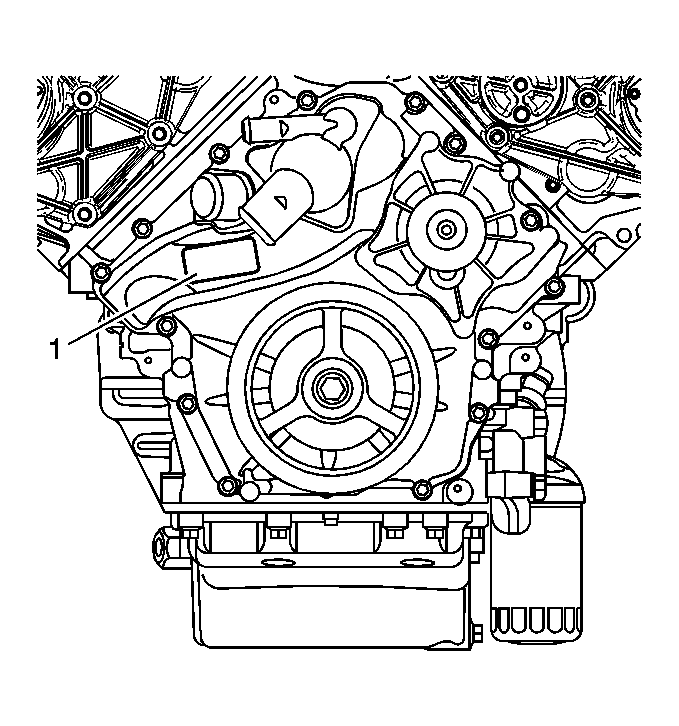

Fig 1: Locating Engine Verification Label On Engine Block

Courtesy of GENERAL MOTORS CORP.

The engine front cover has an engine verification label (1).

Fig 2: Locating Traceability Label On Engine Block

Courtesy of GENERAL MOTORS CORP.

The front of the right camshaft cover has a traceability label (1).
