Section 7 (Automatic Transmission - 6L80E)
>>
Schematic and Routing Diagrams
>>
Automatic Transmission Controls Schematics
Automatic Transmission Controls Schematics
WARNING:
This page is about a different variant/trim than selected.

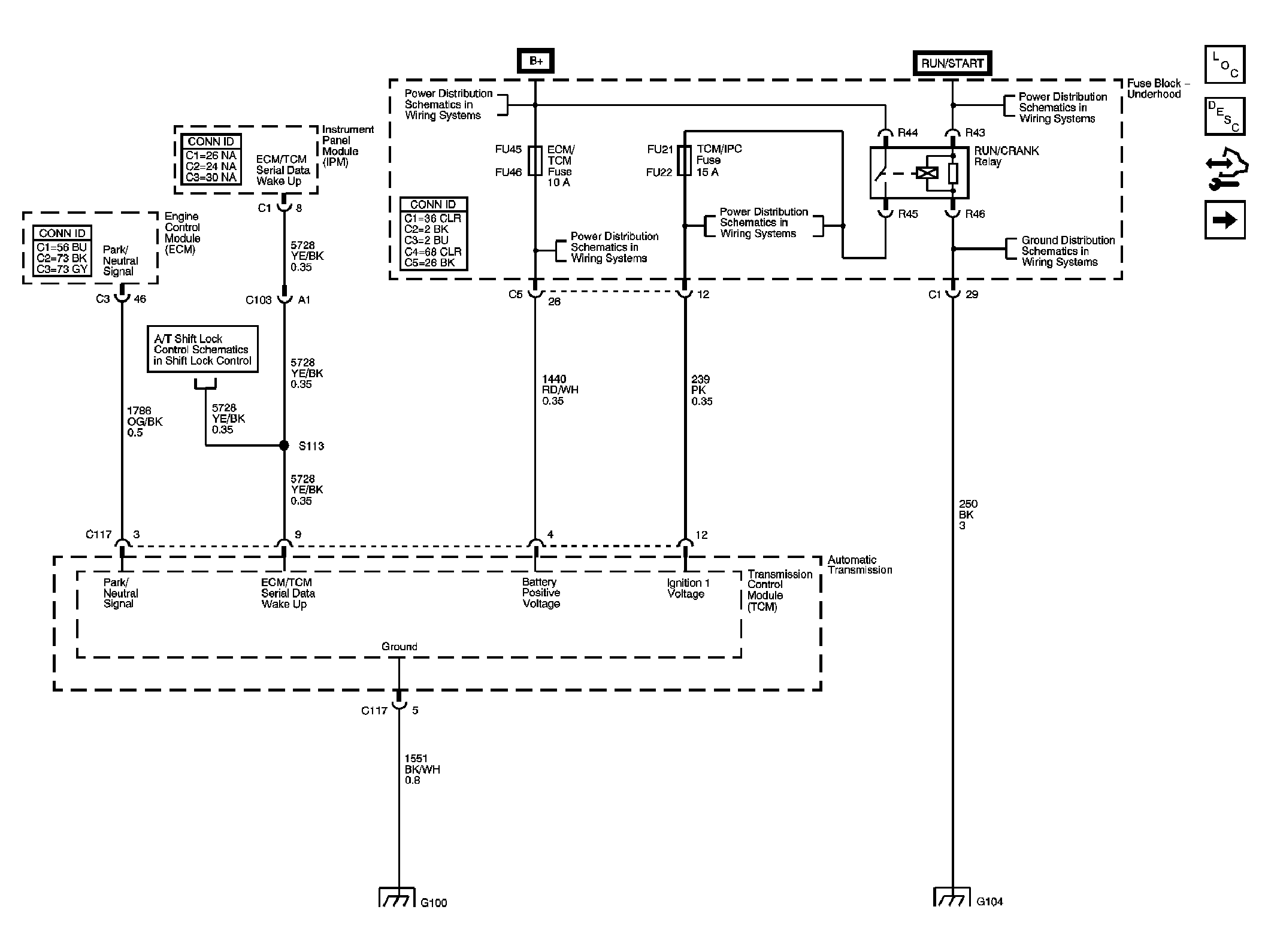

Fig 1: TCM Power, Grounds, ECM, IPM
Courtesy of GENERAL MOTORS CORP.

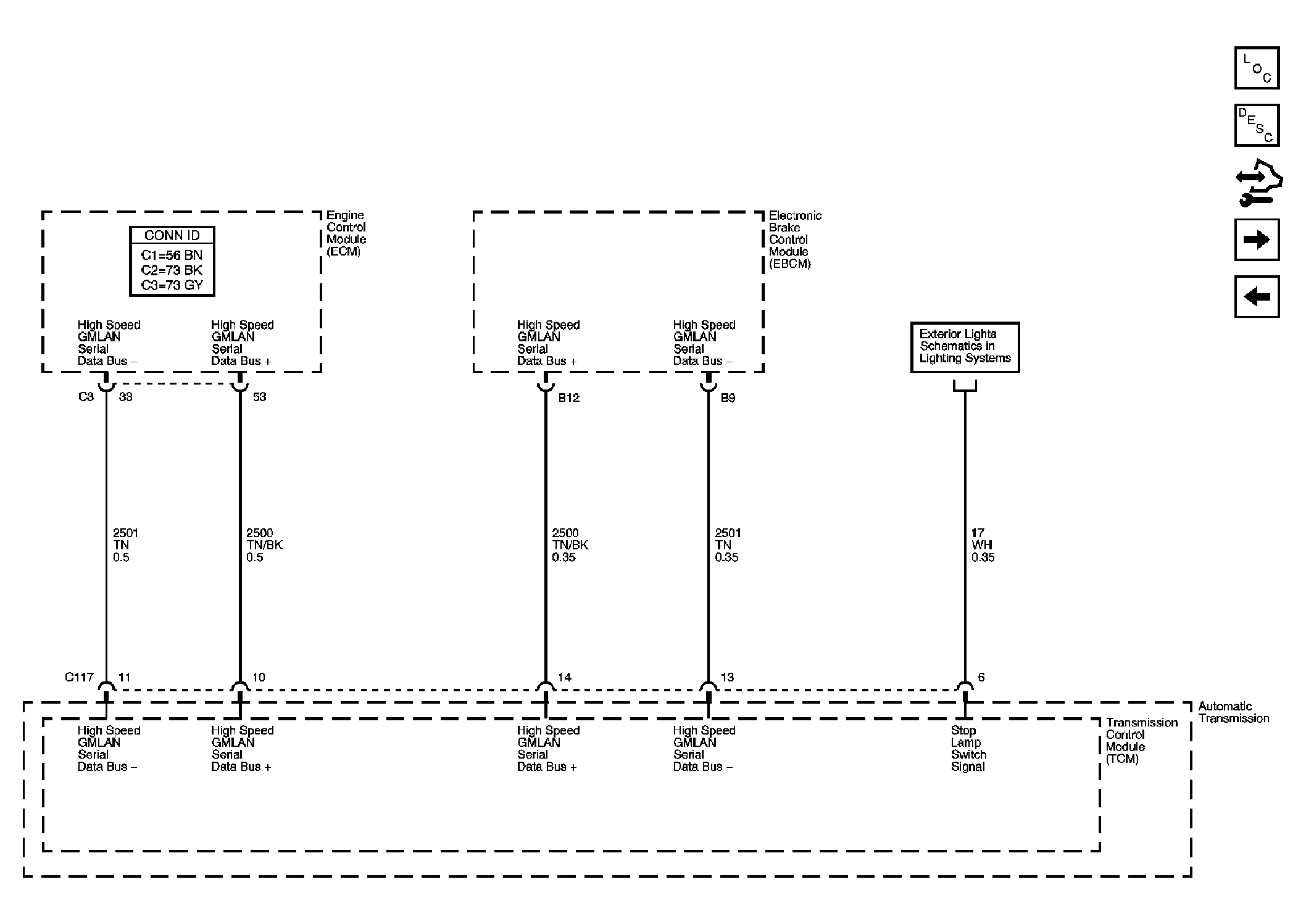

Fig 2: ECM, EBCM
Courtesy of GENERAL MOTORS CORP.

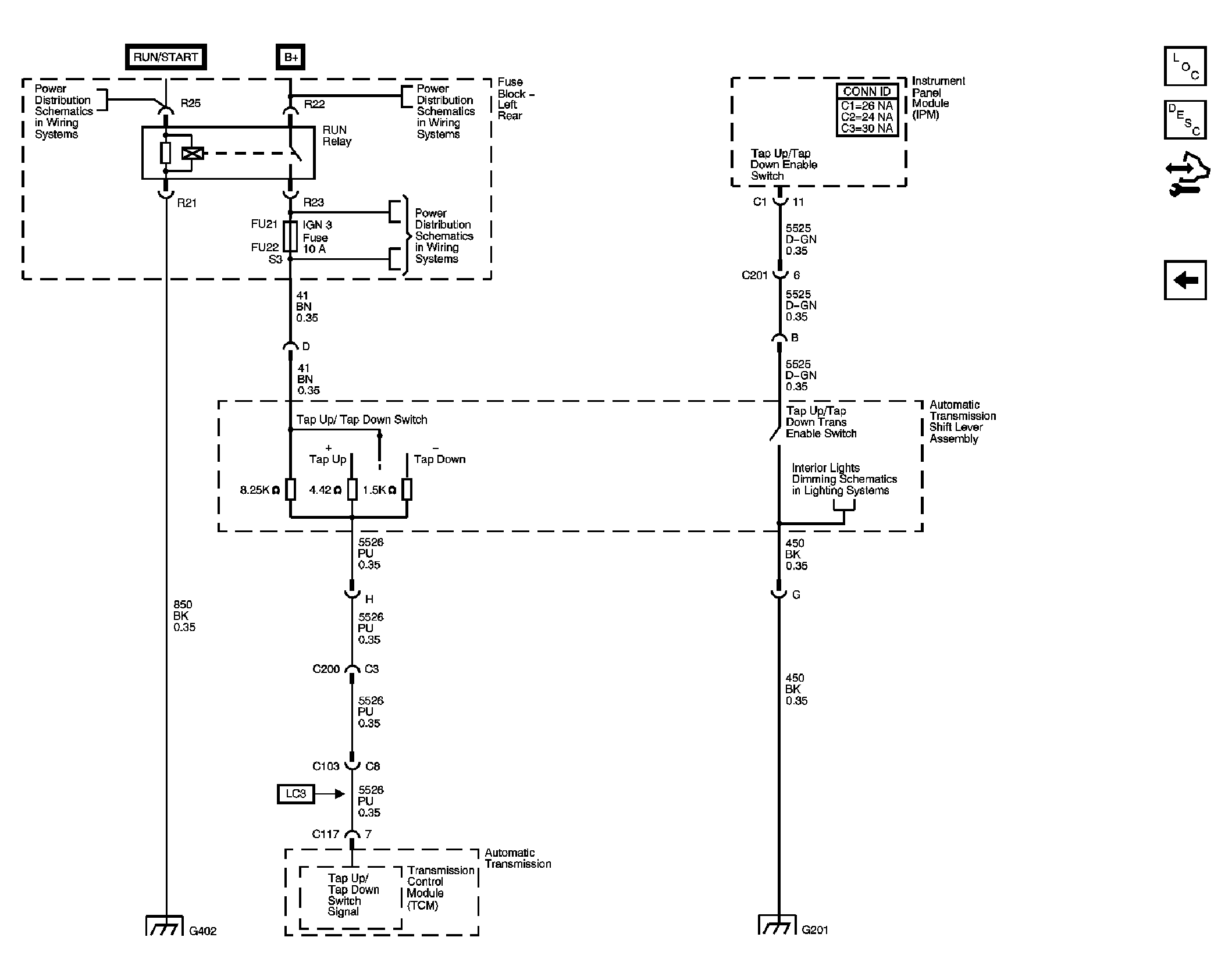

Fig 3: Automatic Transmission Shift Lever Assembly, IPM
Courtesy of GENERAL MOTORS CORP.
