Removal Procedure

WARNING: This page is about a different variant/trim than selected.

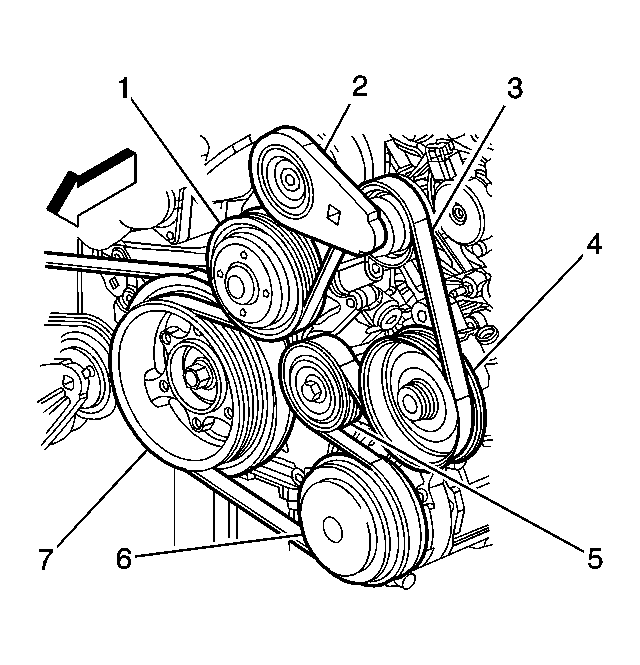

    Fig 1: Air Conditioning, Power Steering & Water Pump Drive Belt
    GM887836Courtesy of GENERAL MOTORS CORP.
  1. Remove the air conditioning, power steering, and water pump belt (3). Refer to Water Pump and Air Conditioning Compressor and Power Steering Pump Belt Replacement .

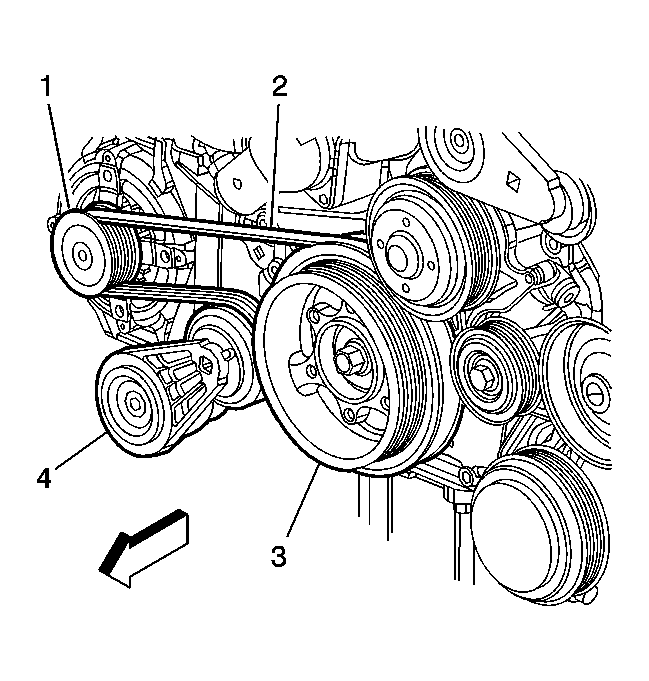

    2. Fig 2: Generator Drive Belt
    GM887832Courtesy of GENERAL MOTORS CORP.
  2. Rotate the generator drive belt tensioner (4) clockwise to release drive belt tension.
  3. Slide the generator drive belt from the generator pulley (1).
  4. Allow the drive belt tensioner to return to the relaxed position.
  5. Remove the generator drive belt from the pulleys.
