Installation Procedure

WARNING: This page is about a different variant/trim than selected.

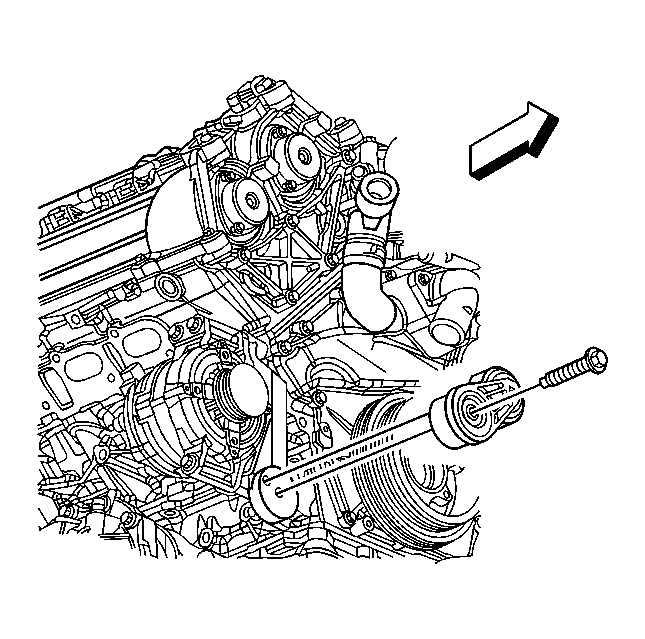

    Fig 1: View Of Generator Drive Belt Tensioner
    GM887841Courtesy of GENERAL MOTORS CORP.
  1. Position the generator drive belt tensioner and bolt to the engine as an assembly.
  2. Ensure that the alignment pin on the rear of the tensioner assembly is aligned with the locating hole on the engine.
    3. NOTE: Refer to Fastener Notice .
  3. Install the drive belt tensioner bolt.

    Tighten:  Tighten the drive belt tensioner bolt to 50 N.m (37 lb ft).

  4. Install the generator drive belt. Refer to Generator Drive Belt Replacement .
  5. Install the air conditioning, power steering, and water pump drive belt. Refer to Water Pump and Air Conditioning Compressor and Power Steering Pump Belt Replacement .
