Installation Procedure

WARNING: This page is about a different variant/trim than selected.

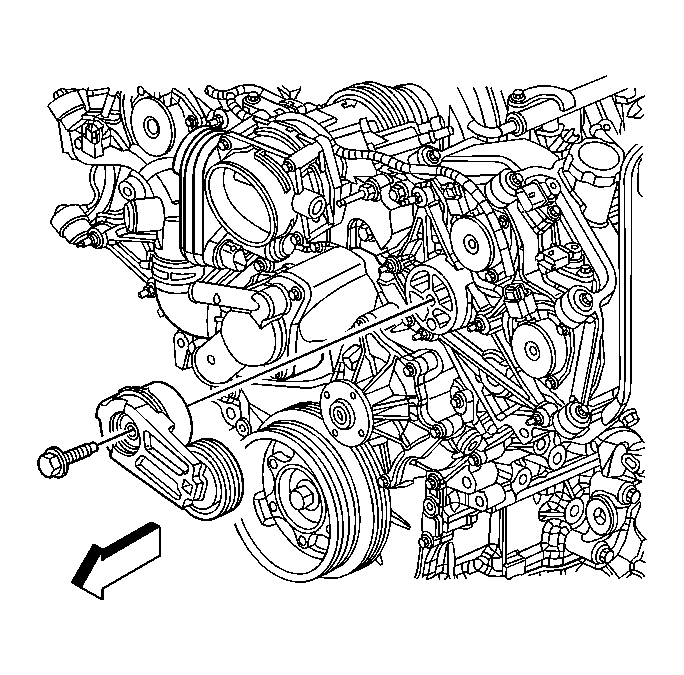

    Fig 1: View Of Air Conditioning, Power Steering & Water Pump Drive Belt Tensioner
    GM887827Courtesy of GENERAL MOTORS CORP.
  1. Position the drive belt tensioner and bolt to the engine as an assembly.
  2. Ensure that the alignment pin on the rear of the tensioner assembly is aligned with the locating hole on the engine.
    3. NOTE: Refer to Fastener Notice .
  3. Install the drive belt tensioner bolt.

    Tighten:  Tighten the drive belt tensioner bolt to 50 N.m (37 lb ft).

  4. Install the air conditioning, power steering and water pump drive belt. Refer to Water Pump and Air Conditioning Compressor and Power Steering Pump Belt Replacement .
