Installation Procedure

WARNING: This page is about a different variant/trim than selected.

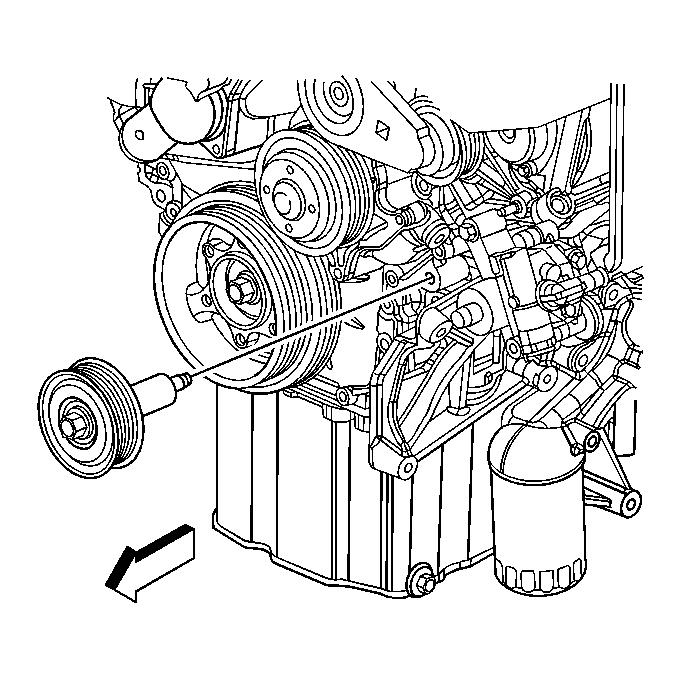

    Fig 1: View Of Drive Belt Idler Pulley
    GM887830Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt idler pulley.
    2. NOTE: Refer to Fastener Notice .
  2. Install the drive belt idler pulley bolt.

    Tighten:  Tighten the drive belt idler pulley bolt to 50 N.m (37 lb ft).

  3. Install the drive belt. Refer to Water Pump and Air Conditioning Compressor and Power Steering Pump Belt Replacement .
