Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the accessory drive belts. Refer to Generator Drive Belt Replacement  and to Water Pump and Air Conditioning Compressor and Power Steering Pump Belt Replacement .
  2. Remove the mechanical fan adapter, if equipped. Refer to Engine Cooling Fan Bracket Replacement (LH2)
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  4. Remove transmission bell housing inspection hole cover.
    5. Fig 1: Flywheel Holding Tool
    GM1690149Courtesy of GENERAL MOTORS CORP.
  5. Install the EN-48018  flywheel holding tool as shown.
    6. Fig 2: View Of Crankshaft Balancer Bolt
    GM928046Courtesy of GENERAL MOTORS CORP.
  6. Remove the crankshaft balancer bolt.

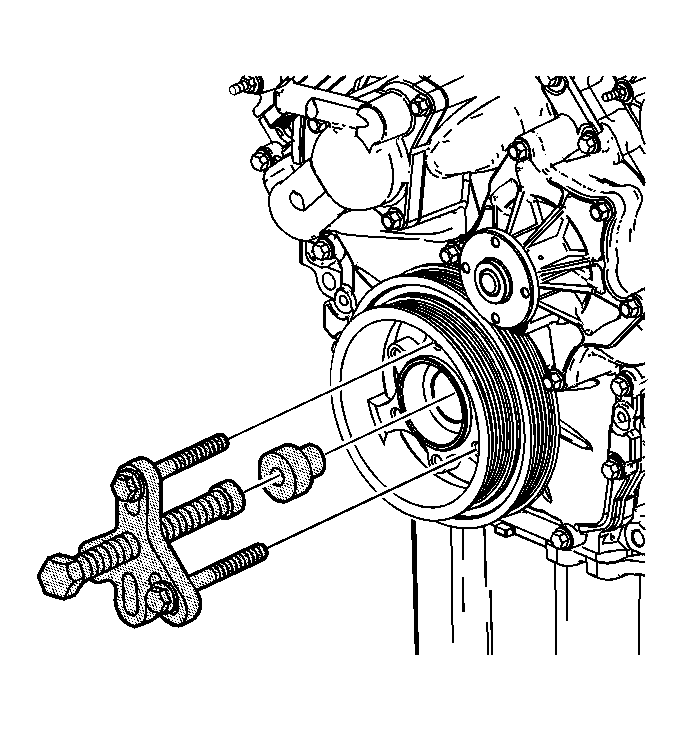

    7. Fig 3: View Of J 38416-2 & J 24420-C
    GM1346204Courtesy of GENERAL MOTORS CORP.
  7. Place the J 38416-2  crankshaft button into the end of the crankshaft.
  8. Install the J 24420-C  on the crankshaft balancer.
    9. Fig 4: View Of Crankshaft Balancer
    GM928051Courtesy of GENERAL MOTORS CORP.
  9. Remove the crankshaft balancer using the J 24420-C  .
  10. Clean and inspect the crankshaft balancer. Refer to Crankshaft Balancer Cleaning and Inspection .
