Installation Procedure

WARNING: This page is about a different variant/trim than selected.

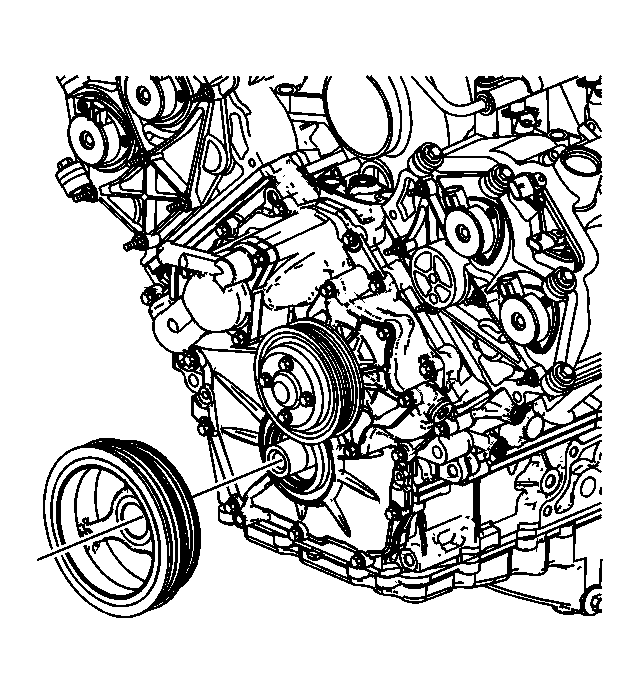

    Fig 1: View Of Crankshaft Balancer
    GM928051Courtesy of GENERAL MOTORS CORP.
  1. Position the crankshaft balancer on the nose of the crankshaft.

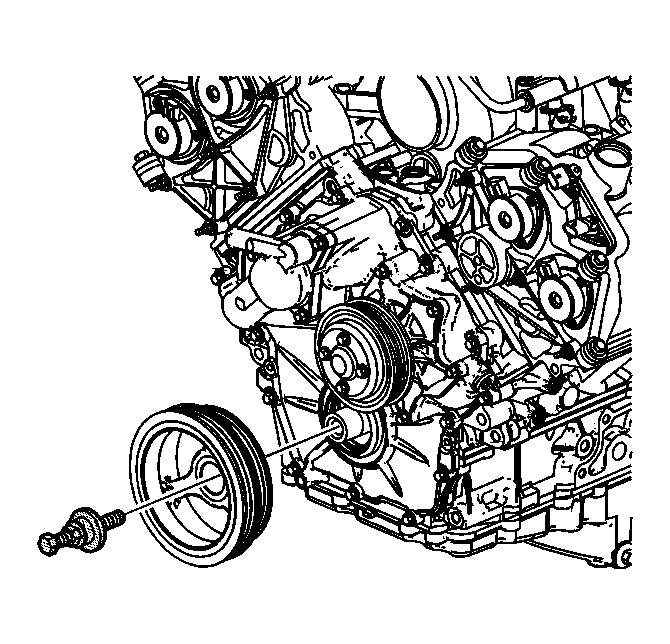

    2. Fig 2: Pressing Crankshaft Balancer In Place Using J 41998-B
    GM948118Courtesy of GENERAL MOTORS CORP.
  2. Press the crankshaft balancer in place using the J 41998-B  .

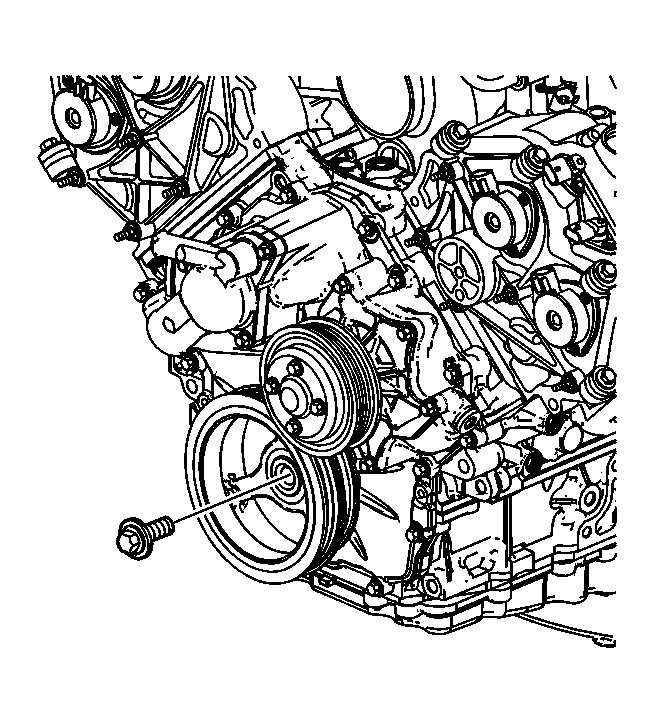

    3. Fig 3: View Of Crankshaft Balancer Bolt
    GM928046Courtesy of GENERAL MOTORS CORP.
  3. Clean the crankshaft balancer bolt threads.
  4. Apply engine oil to the crankshaft balancer bolt threads.
    5. NOTE: Refer to Fastener Notice .
  5. Install the crankshaft balancer bolt.

    Tighten:

    1. First Pass

      Tighten the bolt to 50 N.m (37 lb ft).

    2. Final Pass

      Tighten the bolt an additional 120 degrees using the J 45059  .

    6. Fig 4: Flywheel Holding Tool
    GM1690149Courtesy of GENERAL MOTORS CORP.
  6. Remove the EN-48018  .
  7. Install the transmission bell housing inspection hole cover.
  8. Install the mechanical fan adapter, if equipped. Refer to Engine Cooling Fan Bracket Replacement (LH2) .
  9. Lower the vehicle.
  10. Install the accessory drive belts. Refer to Generator Drive Belt Replacement  and to Water Pump and Air Conditioning Compressor and Power Steering Pump Belt Replacement .
