Installation Procedure

WARNING: This page is about a different variant/trim than selected.

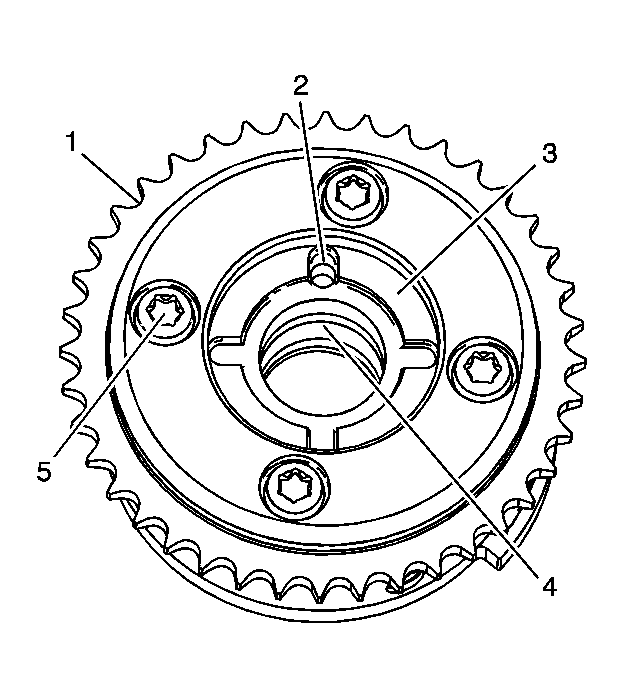

    Fig 1: Locating Camshaft Alignment Pin Hole On Back Of Actuator
    GM1285137Courtesy of GENERAL MOTORS CORP.
  1. Locate the camshaft alignment pin hole (2) on the back of the actuator.
    2. Fig 2: Locating Timing Mark On Front Of Actuator
    GM1272586Courtesy of GENERAL MOTORS CORP.
  2. Locate the timing alignment mark (1) on the front of the actuator.
    3. Fig 3: Identifying Camshaft Sprockets & Related Components
    GM1276768Courtesy of GENERAL MOTORS CORP.
  3. Engage the actuator timing gear teeth with the secondary timing chain ensuring that the actuator alignment mark (7) corresponds with the paint mark created on the chain link.
  4. Slide the actuator over the camshaft alignment pin and install the actuator onto the camshaft.
  5. Install the left exhaust camshaft position actuator oil control valve (8). Refer to Camshaft Position Actuator Oil Control Valve Replacement - Bank 2 (Left Side) Exhaust .
