Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Supercharger
    GM1614621Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: In order to protect and service components, on the supercharger, ensure that the EN-47833  is on the supercharger during this repair procedure.
  1. Remove the supercharger. Refer to Supercharger Replacement .
    2. Fig 2: Supercharger Service Holding Fixture
    GM1614697Courtesy of GENERAL MOTORS CORP.
  2. Install the EN-47833  supercharger service holding fixture to the supercharger while the supercharger is suspended by the engine hoist.
  3. Place the supercharger on a workbench and remove the engine hoist.
    4. Fig 3: Throttle Body
    GM1644293Courtesy of GENERAL MOTORS CORP.
  4. Remove the throttle body. Refer to Throttle Body Assembly Replacement .
    5. Fig 4: Supercharger Bypass Valve Actuator
    GM1644295Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the bypass valve actuator vacuum hose at the supercharger bypass valve actuator (1).
    6. Fig 5: Supercharger Bypass Valve Actuator
    GM1644297Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the bypass valve actuator pressure hose at the supercharger bypass valve actuator (1).
    7. Fig 6: Bypass Valve Actuator Bolts
    GM1644304Courtesy of GENERAL MOTORS CORP.
  7. Remove the bypass valve actuator bolts.
    8. Fig 7: Bypass Valve Actuator
    GM1644305Courtesy of GENERAL MOTORS CORP.
  8. Pivot the bypass valve actuator clockwise in order to remove the bypass valve actuator from the bypass valve actuator cable.
    9. Fig 8: Bypass Valve Actuator Rod
    GM1644312Courtesy of GENERAL MOTORS CORP.
  9. Align the tab on the bypass valve actuator rod with the slot in the bypass valve actuator cable end.
    10. Fig 9: Bypass Valve Actuator
    GM1644311Courtesy of GENERAL MOTORS CORP.
  10. Slide the bypass valve actuator rod out of the bypass valve actuator cable.
  11. Remove the bypass valve actuator.
    12. Fig 10: Bypass Valve Actuator Cable Bracket
    GM1644315Courtesy of GENERAL MOTORS CORP.
  12. Remove the bypass valve actuator cable bracket bolts from the supercharger.
    13. Fig 11: Bypass Valve Actuator Cable Clip
    GM1644316Courtesy of GENERAL MOTORS CORP.
  13. Slide the bypass valve actuator cable clip off of the pin on the supercharger bypass valve.
    14. Fig 12: Bypass Valve Actuator Cable
    GM1644320Courtesy of GENERAL MOTORS CORP.
  14. Remove the bypass valve actuator cable.

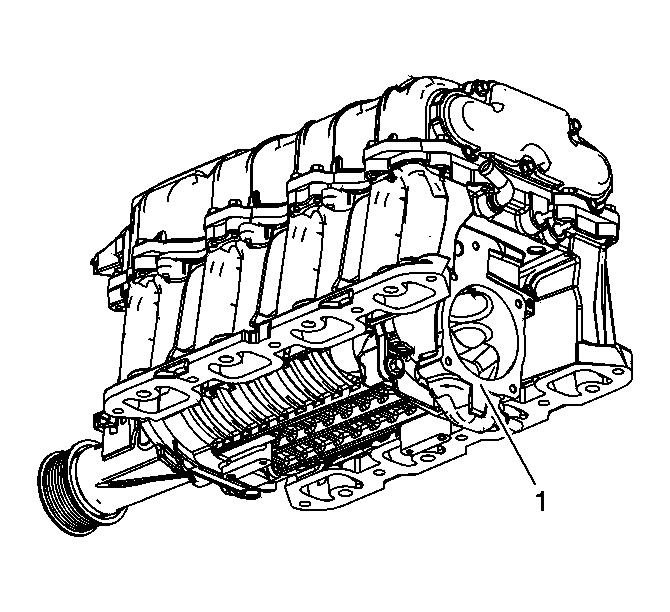

    15. Fig 13: Supercharger Bypass Valve
    GM1644322Courtesy of GENERAL MOTORS CORP.
  15. Do NOT remove the supercharger bypass valve (1) from the supercharger.
