Generator Drive Belt Tensioner

WARNING: This page is about a different variant/trim than selected.

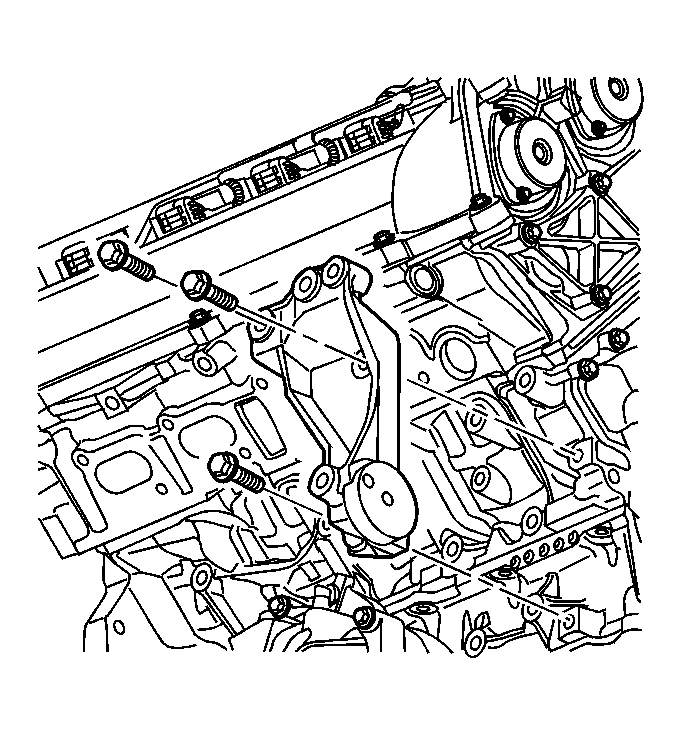

Fig 1: View Of Generator Bracket

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Loosely install the generator bracket bolts.
Tighten the generator bracket bolts in proper sequence.
Tighten:
- Tighten the generator bracket front upper bolt to 50 N.m (37 lb ft).
- Tighten the generator bracket rear upper bolt to 50 N.m (37 lb ft).
- Tighten the generator bracket lower bolt to 50 N.m (37 lb ft).

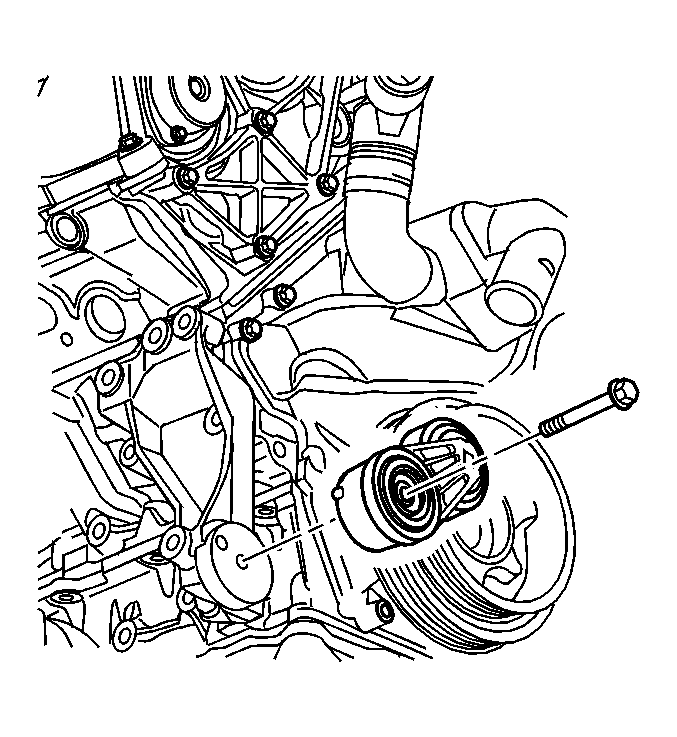

Fig 2: View Of Generator Drive Belt Tensioner

Courtesy of GENERAL MOTORS CORP.

Place the generator drive belt tensioner in position to the generator bracket. Ensure to properly locate the drive belt tensioner anchor pin in the recess in the generator bracket.
Install the generator drive belt tensioner bolt.
Tighten: Tighten the generator drive belt tensioner bolt to 50 N.m (37 lb ft).
