Outer Drive Belt

WARNING: This page is about a different variant/trim than selected.

Fig 1: View Of Drive Belt Tensioner & Pulleys

Courtesy of GENERAL MOTORS CORP.

Insert a 1/2 inch drive extension into the outer drive belt tensioner.
Push down on the extension in order to allow the installation of the outer drive belt.

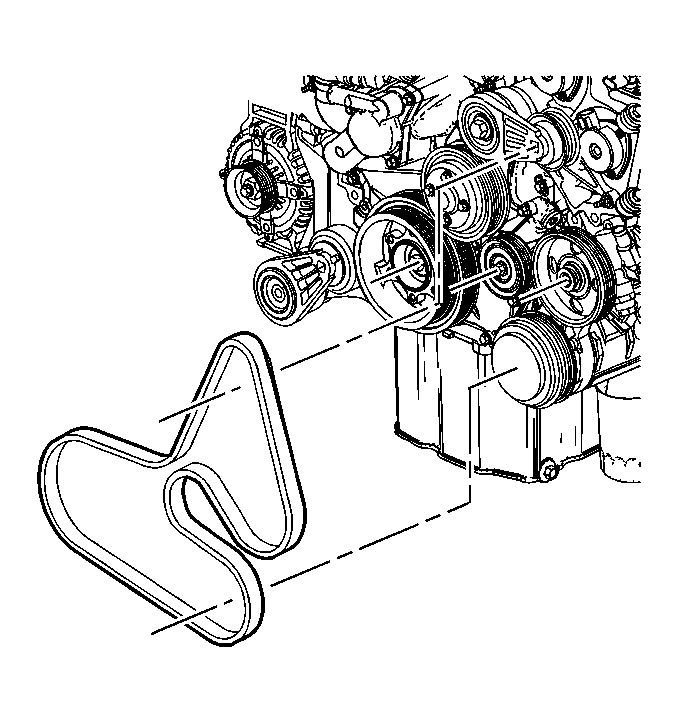

Fig 2: View Of Outer Drive Belt

Courtesy of GENERAL MOTORS CORP.

Route the inner drive belt around the crankshaft balancer outer pulley, the A/C compressor pulley, the drive belt idler pulley, the P/S pump pulley, the water pump pulley and the outer drive belt tensioner pulley.
Ensure the outer drive belt is properly seated in all the pulleys.
Slowly release the outer drive belt tensioner back to its original position. This will apply tension to the outer drive belt.
After installation, inspect the outer drive belt for proper routing and the correct alignment.

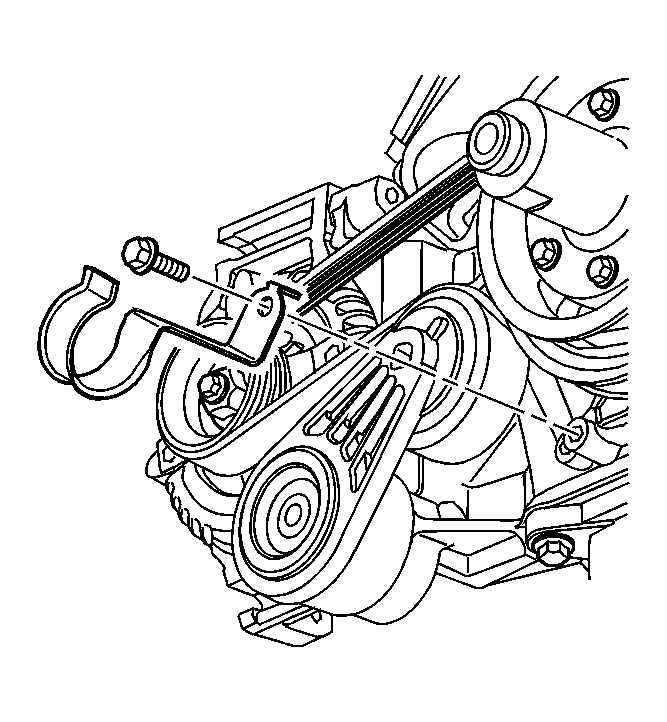

Fig 3: View Of Radiator Hose Bracket

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the radiator hose bracket bolt.
Tighten: Tighten the radiator hose bracket bolt to 25 N.m (18 lb ft).
