Engine Front Cover Disassemble - Off Vehicle

WARNING: This page is about a different variant/trim than selected.

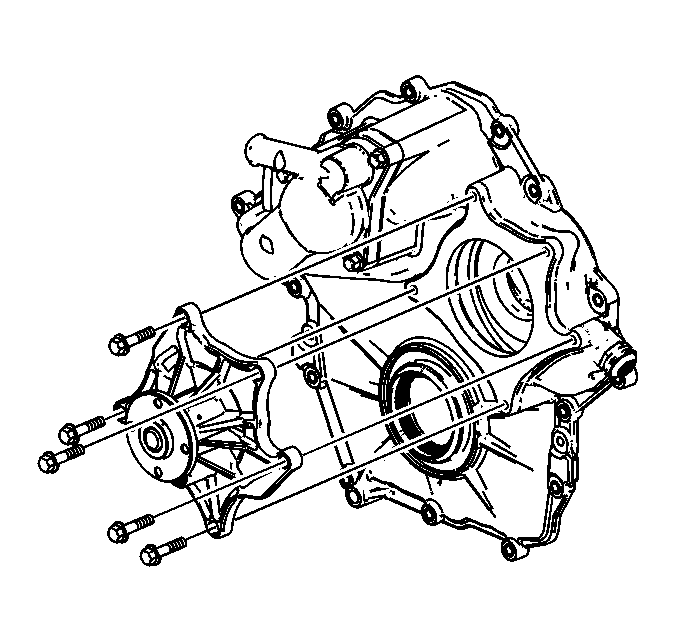

    Fig 1: View Of Water Pump
    GM1040709Courtesy of GENERAL MOTORS CORP.
  1. Remove the water pump bolts.
  2. Remove the water pump.
    3. Fig 2: View Of Water Pump O-Ring
    GM1403356Courtesy of GENERAL MOTORS CORP.
  3. Remove and discard the water pump O-ring.
    4. Fig 3: View Of Thermostat Housing
    GM1254521Courtesy of GENERAL MOTORS CORP.
  4. Remove the thermostat housing bolts.
  5. Remove the thermostat housing.
    6. Fig 4: View Of Thermostat
    GM1254523Courtesy of GENERAL MOTORS CORP.
  6. Remove the thermostat and gasket from the thermostat housing.
    7. Fig 5: View Of Thermostat Gasket
    GM1254524Courtesy of GENERAL MOTORS CORP.
  7. Remove the thermostat gasket from the thermostat and discard the thermostat gasket.
    8. Fig 6: View Of Engine Front Cover Fitting
    GM1346220Courtesy of GENERAL MOTORS CORP.
  8. Remove the engine front cover fitting.
