Engine Block Disassemble - Upper - Off Vehicle

WARNING: This page is about a different variant/trim than selected.

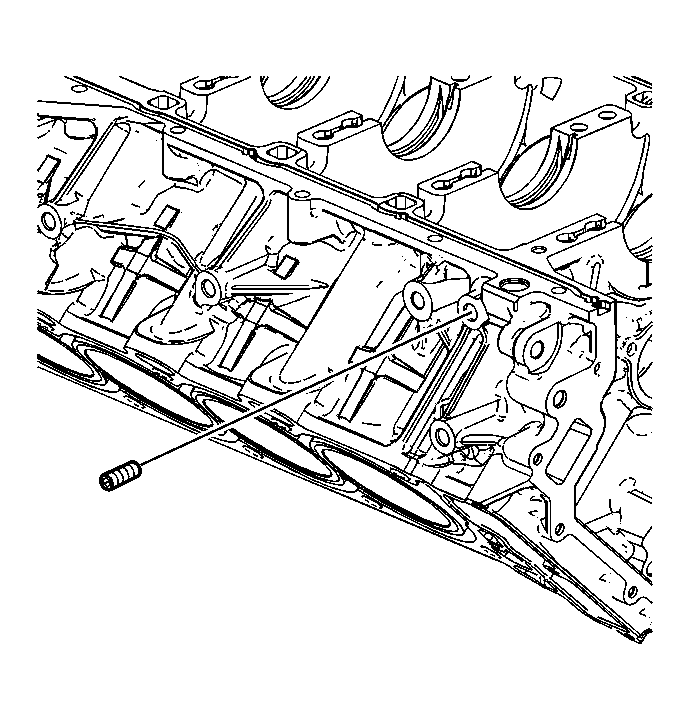

Fig 1: View Of Engine Coolant Drain Plug

Courtesy of GENERAL MOTORS CORP.

Remove the engine coolant drain plug.

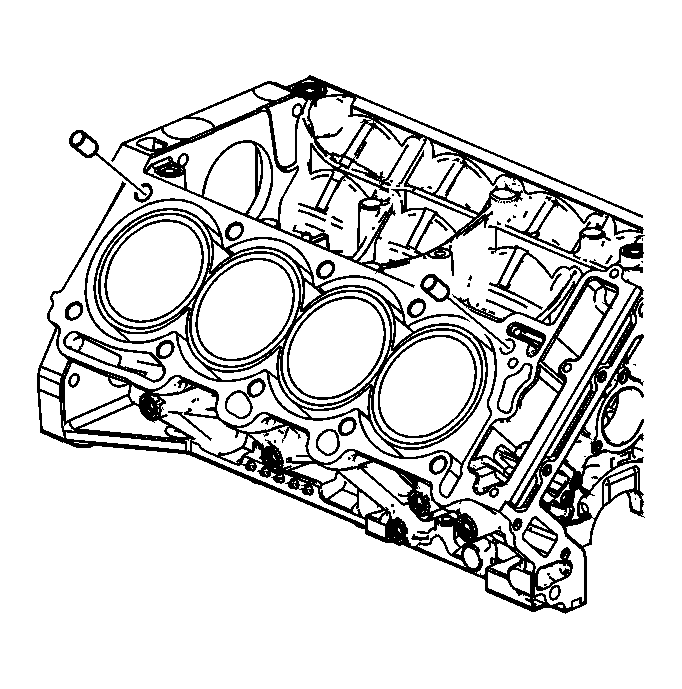

Fig 2: View Of Engine Block-To-Crankcase Pins

Courtesy of GENERAL MOTORS CORP.

Remove the engine block to crankcase pins.

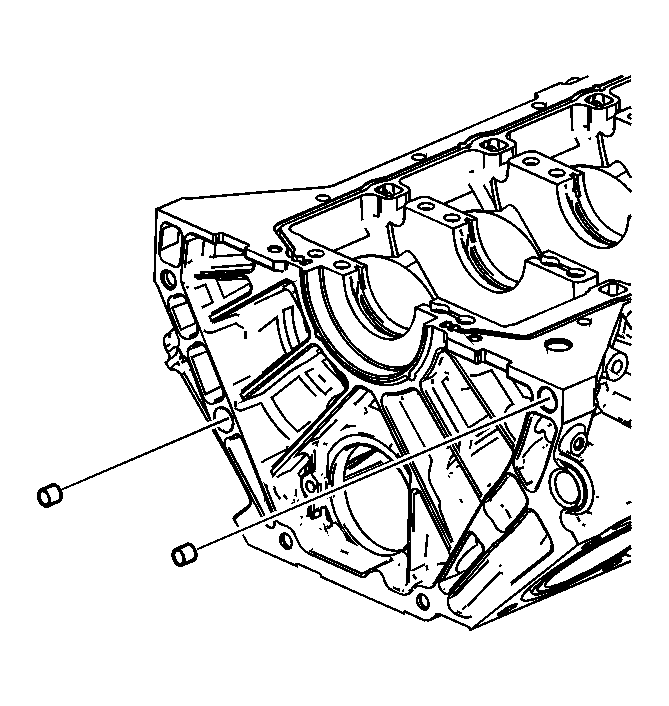

Fig 3: View Of Engine Block-To-Engine Front Cover Pins

Courtesy of GENERAL MOTORS CORP.

Remove the engine block to engine front cover pins.

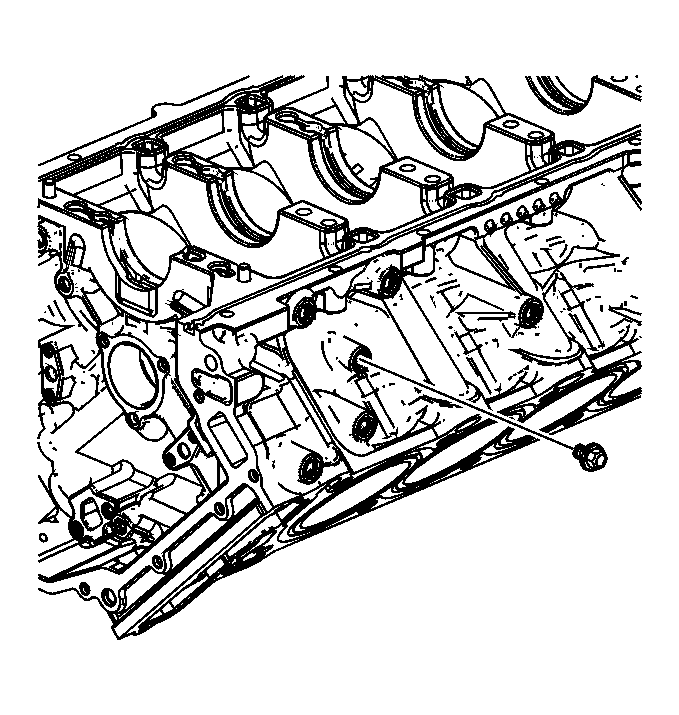

Fig 4: View Of Camshaft Intermediate Drive Shaft Block Plug

Courtesy of GENERAL MOTORS CORP.

Remove and discard the camshaft intermediate drive shaft block plug.

Fig 5: Hex Set Stud

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Not all blocks will have the hex set stud installed. If the block being serviced has a hex set stud installed, and the hex set stud is removed, a NEW hex set stud must be reinstalled in the same location.

If required, remove and discard the hex set stud

Fig 6: View Of Left Side Block Deck Face-To-Left Cylinder Head Dowels

Courtesy of GENERAL MOTORS CORP.

Remove the left side block deck face to left cylinder head dowels.

Fig 7: View Of Right Side Block Deck Face-To-Right Cylinder Head Dowels

Courtesy of GENERAL MOTORS CORP.

Remove the right side block deck face to right cylinder head dowels.

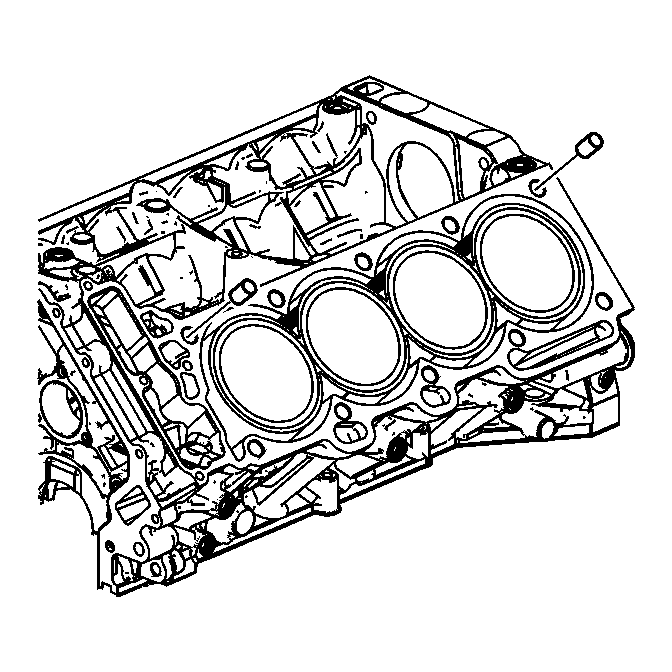

Fig 8: View Of Engine Block-To-Transmission Dowels

Courtesy of GENERAL MOTORS CORP.

Remove the engine block to transmission dowels.
