Starter Installation - Off Vehicle

WARNING: This page is about a different variant/trim than selected.
  1. If installing a NEW starter motor, transfer the cables from the old starter motor.
  2. Install the positive battery cable to the starter motor stud.
    3. NOTE: Refer to Fastener Notice .
  3. Install the starter motor stud nut.

    Tighten:  Tighten the starter motor stud nut to 10 N.m (89 lb in).

  4. Install the solenoid wiring harness to the starter solenoid stud.
  5. Install the starter solenoid stud nut.

    Tighten:  Tighten the starter solenoid stud nut to 4 N.m (35 lb in).

    6. Fig 1: Starter Motor & Wiring Harness
    GM1656788Courtesy of GENERAL MOTORS CORP.
  6. Position the starter motor in position.
  7. Install the starter motor bolts.

    Tighten:  Tighten the starter motor bolt to 30 N.m (22 lb ft).

    8. Fig 2: Crankshaft Position Sensor O-Ring
    GM1761739Courtesy of GENERAL MOTORS CORP.
  8. Install a NEW O-ring on the crankshaft position sensor.

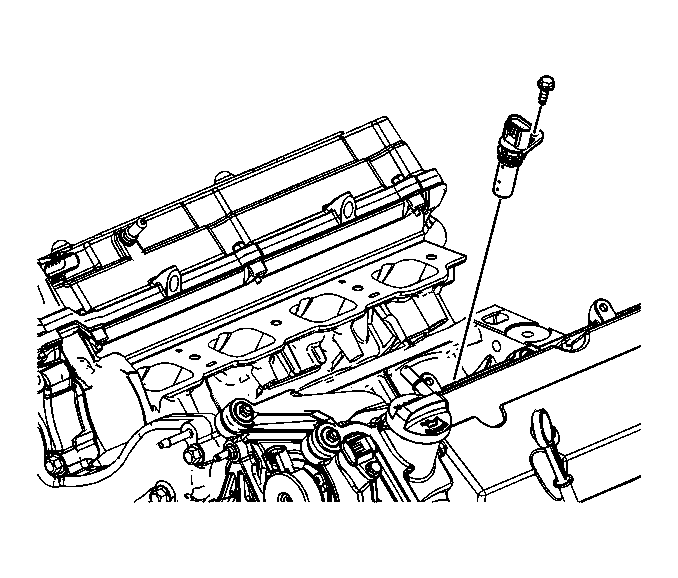

    9. Fig 3: Crankshaft Position Sensor Bolt
    GM1656794Courtesy of GENERAL MOTORS CORP.
  9. Install the crankshaft position sensor.
  10. Install the crankshaft position sensor bolt.

    Tighten:  Tighten the crankshaft position sensor bolt to 10 N.m (89 lb in).

    11. Fig 4: Knock Sensors
    GM1656791Courtesy of GENERAL MOTORS CORP.
  11. Install the knock sensors.
  12. Install the knock sensor bolts.

    Tighten:  Tighten the knock sensor bolts to 25 N.m (18 lb ft).

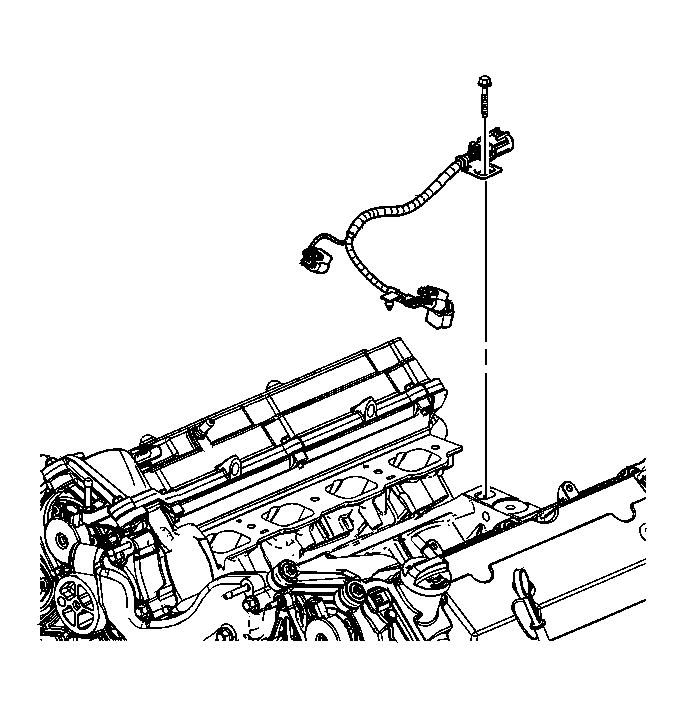

    13. Fig 5: Knock And Crankshaft Position Sensor Wiring Harness
    GM1656789Courtesy of GENERAL MOTORS CORP.
  13. Install the knock and crankshaft position sensor wiring harness.
  14. Connect the knock and crankshaft position sensor wiring harness retainers to the center, and side of the block valley.
  15. Install the knock and crankshaft position sensor wiring harness bolt.

    Tighten:  Tighten the knock and crankshaft position sensor wiring harness bolt to 10 N.m (89 lb in).

  16. Connect the knock and crankshaft position sensor wiring harness to the knock sensors and crankshaft position sensor.

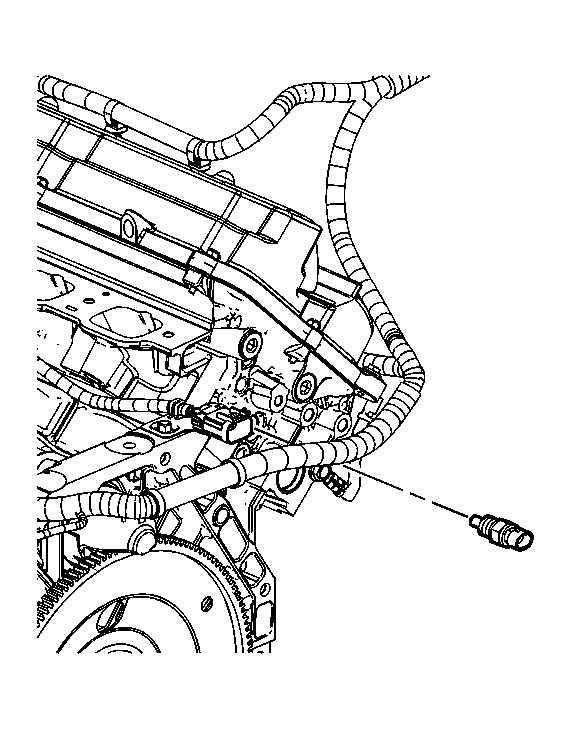

    17. Fig 6: ECT Sensor
    GM1714261Courtesy of GENERAL MOTORS CORP.
  17. Install the engine coolant temperature (ECT) sensor to the right cylinder head.

    Tighten:  Tighten the ECT sensor to 20 N.m (15 lb ft).
