Oil Level Indicator and Tube Installation - Off Vehicle

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Oil Level Indicator Tube O-Ring
    GM1583980Courtesy of GENERAL MOTORS CORP.
  1. Install the NEW O-ring on the oil level indicator tube.

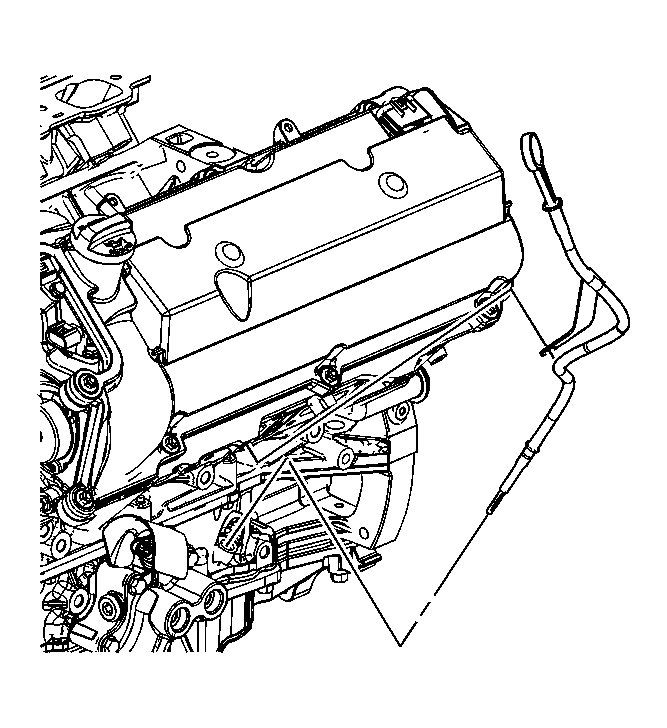

    2. Fig 2: Oil Level Indicator Tube
    GM1656807Courtesy of GENERAL MOTORS CORP.
  2. Install the oil level indicator tube.
    3. NOTE: Refer to Fastener Notice .
  3. Install the oil level indicator tube bolt.

    Tighten:  Tighten the oil level indicator tube bolt to 50 N.m (37 lb ft).
