Engine Front Cover Installation - Off Vehicle

WARNING: This page is about a different variant/trim than selected.

Fig 1: Friction Washers

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Ensure the proper friction washer is installed in the correct position.

Select the oil pump drive to crankshaft balancer friction washer (3). The outer diameter is 45.5 mm (1.7913 in) and an inner diameter of 35.25 mm (1.3878 in).

Fig 2: Oil Pump Drive To Crankshaft Balancer Friction Washer

Courtesy of GENERAL MOTORS CORP.

Fig 3: Upper And Lower Crankcase

Courtesy of GENERAL MOTORS CORP.

Place a small amount of sealant GM P/N 12378521 (Canadian P/N 88901148) or equivalent at the split line of the upper and lower crankcases (1).

Fig 4: Engine Front Cover Gasket

Courtesy of GENERAL MOTORS CORP.

Fig 5: Upper And Lower Crankcase

Courtesy of GENERAL MOTORS CORP.

Place a small amount of sealant GM P/N 12378521 (Canadian P/N 88901148) or equivalent at the engine front cover gasket pad area located on top of the split line of the upper and lower crankcases (1).

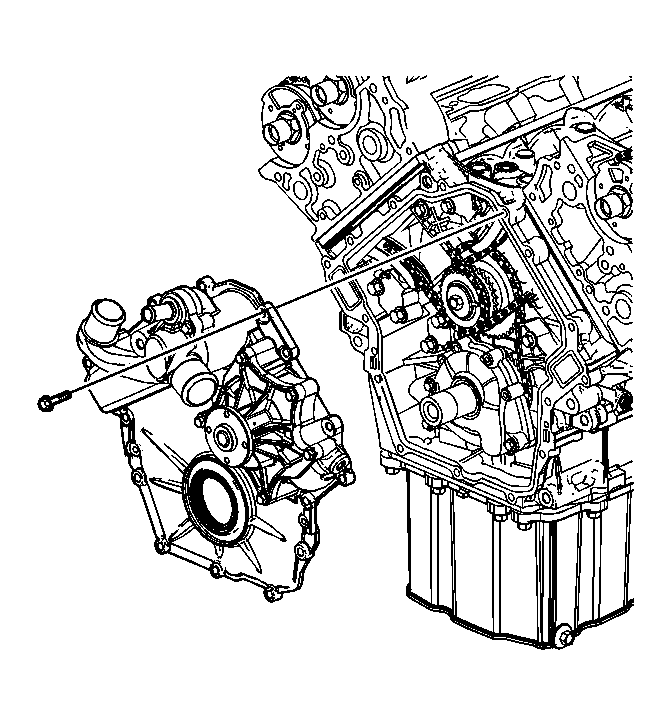

Fig 6: Engine Front Cover

Courtesy of GENERAL MOTORS CORP.

Place the engine front cover in position on the crankcase.
Apply the thread locking compound GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the threads of the engine front cover bolts.
Install the engine front cover bolts.

Fig 7: Engine Front Cover Bolt Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Tighten the engine front cover bolts in the sequence shown.
Tighten: Tighten the engine front cover bolts in proper sequence to 15 N.m (11 lb ft).

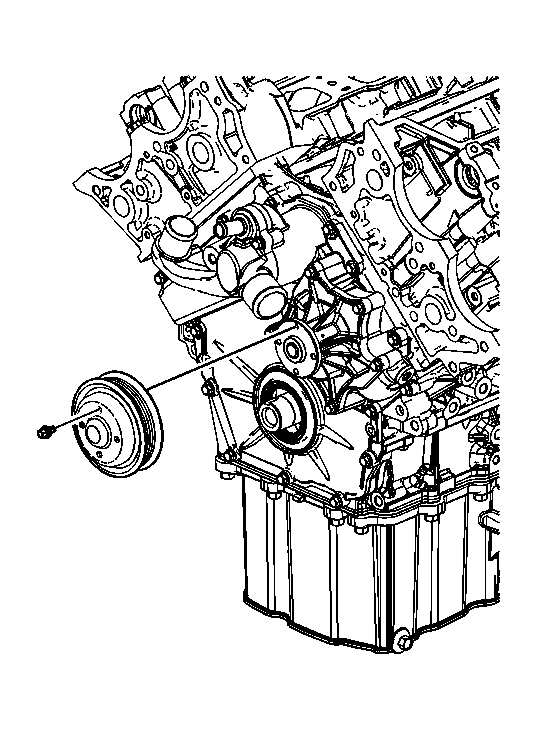

Fig 8: Water Pump Pulley

Courtesy of GENERAL MOTORS CORP.

Install the water pump pulley.
Install the water pump pulley bolts.
Tighten: Tighten the water pump pulley bolt to 10 N.m (89 lb in).
