Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Removing & Installing Oil Level Switch
    GM1213854Courtesy of GENERAL MOTORS CORP.
  1. Install the engine support fixture. Refer to Engine Support Fixture .
  2. Drain the engine oil. Refer to Engine Oil and Oil Filter Replacement .
  3. Remove the front frame. Refer to Front Frame Replacement .
  4. Disconnect the electrical connector from the engine oil level sensor.
  5. Remove the engine oil level sensor from the oil pan.

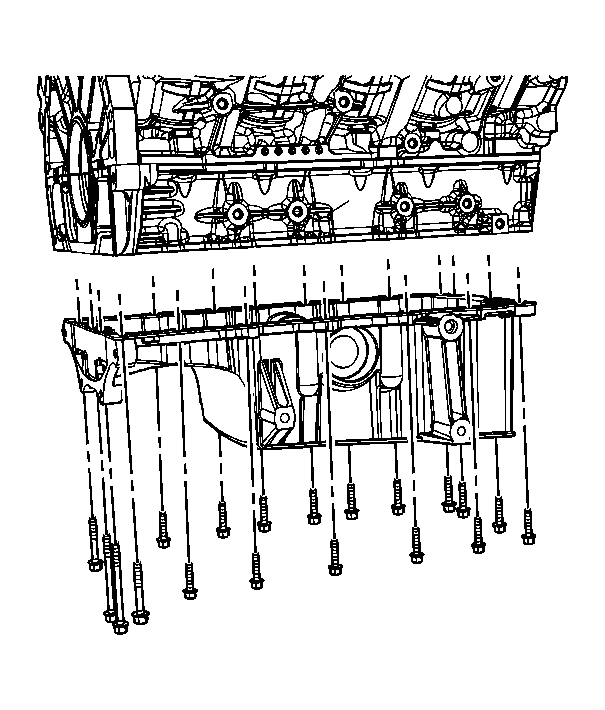

    6. Fig 2: View Of Oil Pan
    GM1535942Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil pan bolts.
    7. IMPORTANT: The oil pan gasket is reusable unless damaged. Do not remove the gasket from the oil pan groove unless replacement is required.
  7. Remove the oil pan.
  8. Drill out the oil pan gasket rivets.
    9. Fig 3: View Of Oil Pan Gasket
    GM1351925Courtesy of GENERAL MOTORS CORP.
  9. Remove and discard the oil pan gasket.
  10. Clean and inspect the oil pan. Refer to Oil Pan Cleaning and Inspection .
