Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Camshaft Sprockets & Related Components
    GM1276769Courtesy of GENERAL MOTORS CORP.
  1. Remove the right intake camshaft actuator (4). Refer to Camshaft Position Actuator Replacement - Bank 1 (Right Side) Intake .
  2. Remove the right exhaust camshaft actuator (10). Refer to Camshaft Position Actuator Replacement - Bank 1 (Right Side) Exhaust .
    3. Fig 2: View Of Right Intake Camshaft
    GM928462Courtesy of GENERAL MOTORS CORP.
  3. Remove the right intake camshaft. Refer to Intake Camshaft Removal - Right Side .

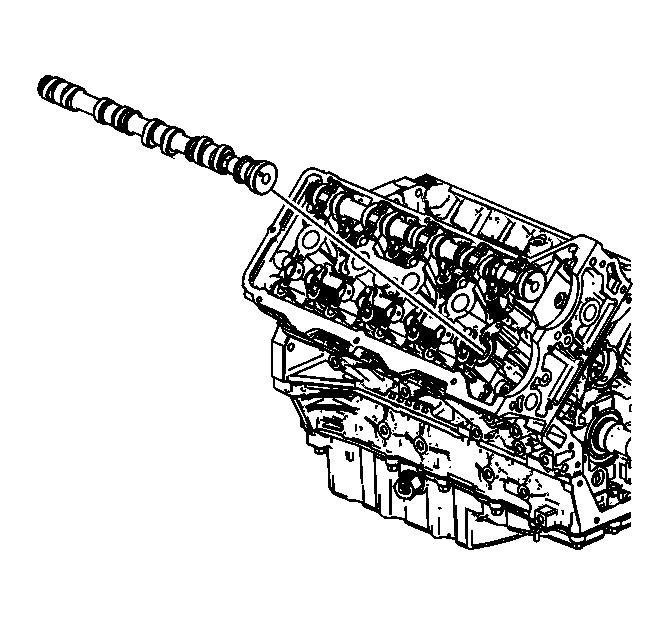

    4. Fig 3: View Of Right Exhaust Camshaft
    GM928456Courtesy of GENERAL MOTORS CORP.
  4. Remove the right exhaust camshaft. Refer to Exhaust Camshaft Removal - Right Side .
  5. Clean and inspect the camshafts. Refer to Camshaft Cleaning and Inspection .
