Water Outlet Housing Removal - Off Vehicle

WARNING: This page is about a different variant/trim than selected.

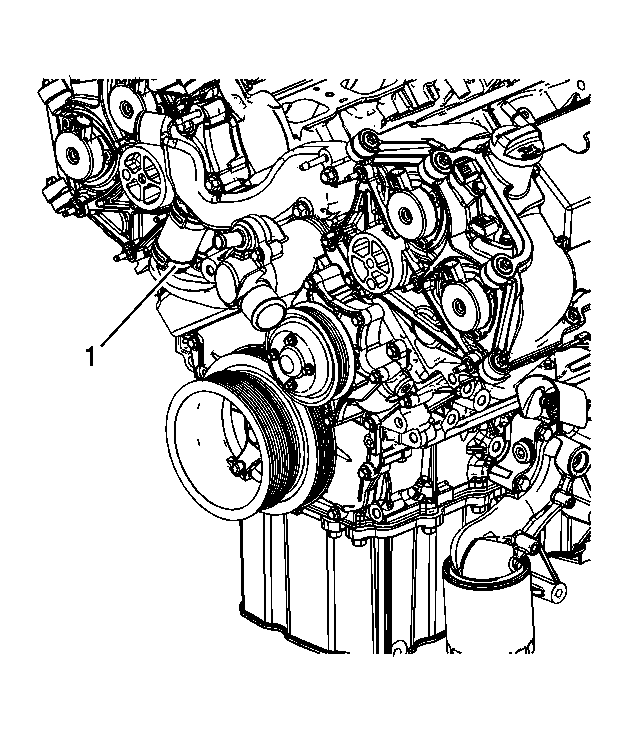

    Fig 1: Hose Clamp
    GM1656795Courtesy of GENERAL MOTORS CORP.
  1. Reposition the clamp (1) on the bypass hose.

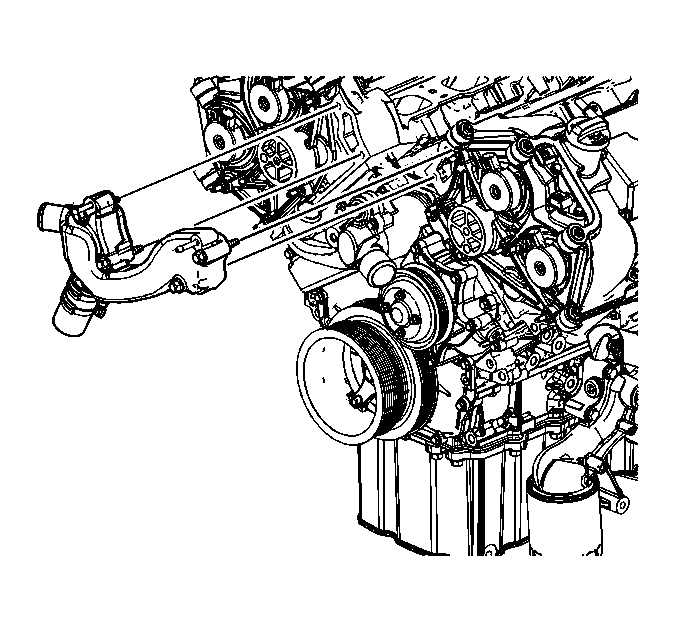

    2. Fig 2: Water Outlet Housing Bolt
    GM1656796Courtesy of GENERAL MOTORS CORP.
  2. Loosen the water outlet housing bolts.
  3. Remove the water outlet housing while removing the bypass hose from the engine front cover.
