Supercharger Removal - Off Vehicle

Tools Required

• EN-47748  Supercharger Lifting Fixture. See Special Tools .
• EN-47833  Supercharger Service Holding Fixture. See Special Tools .

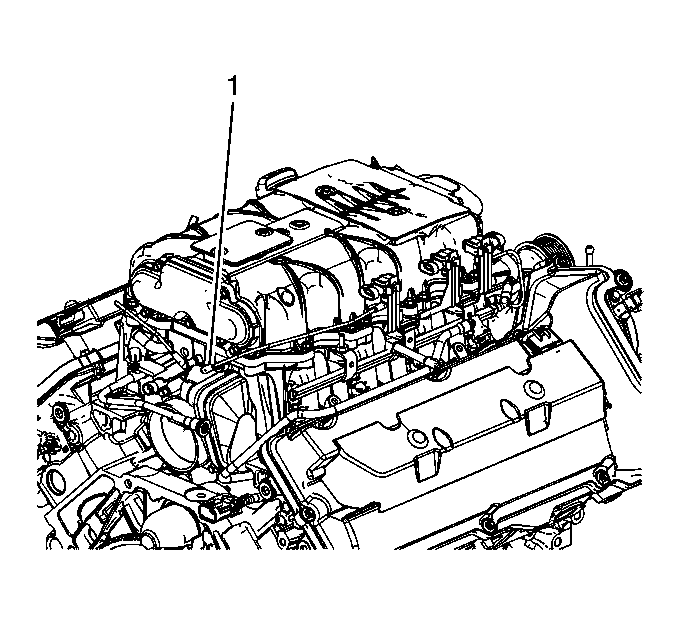

Fig 1: PCV Tube
Courtesy of GENERAL MOTORS CORP.
1. Disconnect and remove the clean air positive crankcase ventilation (PCV) tube from the left camshaft cover.

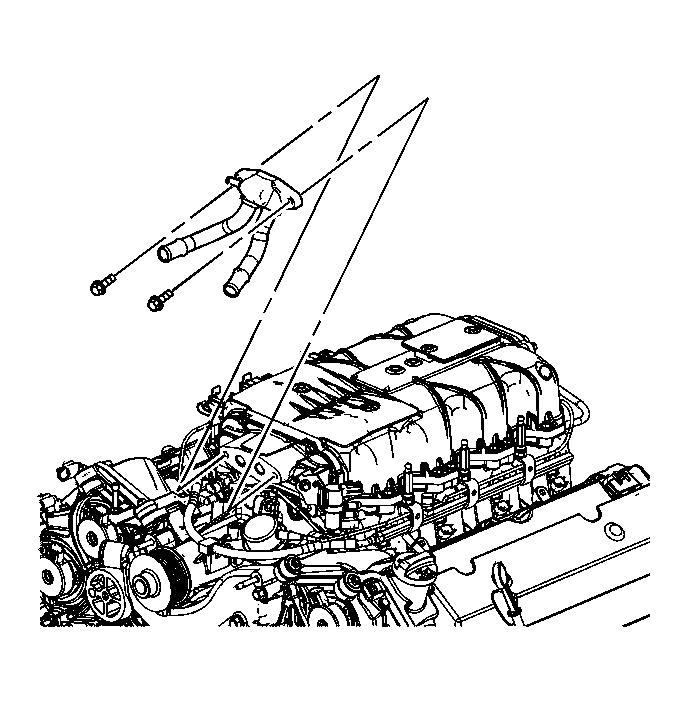

Fig 2: Charge Air Cooler Coolant Front Manifold Bolts
Courtesy of GENERAL MOTORS CORP.
2. Remove the charge air cooler coolant front manifold bolts.
3. Remove the charge air cooler coolant front manifold.
Fig 3: Charge Air Cooler Coolant Front Manifold O-Rings
Courtesy of GENERAL MOTORS CORP.
4. Remove and discard the charge air cooler coolant front manifold O-rings.

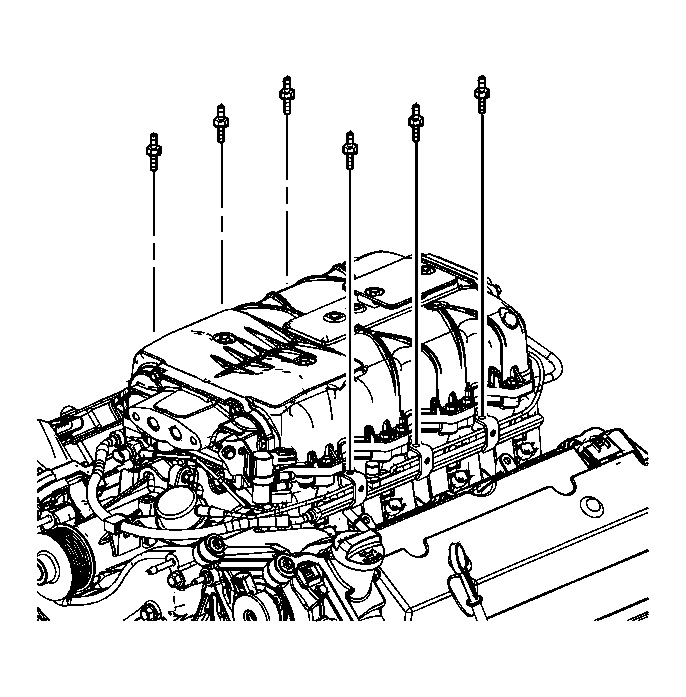

Fig 4: Fuel Injector Sight Shield Cover Ball Studs
Courtesy of GENERAL MOTORS CORP.
5. Remove the fuel injector sight shield cover ball studs.

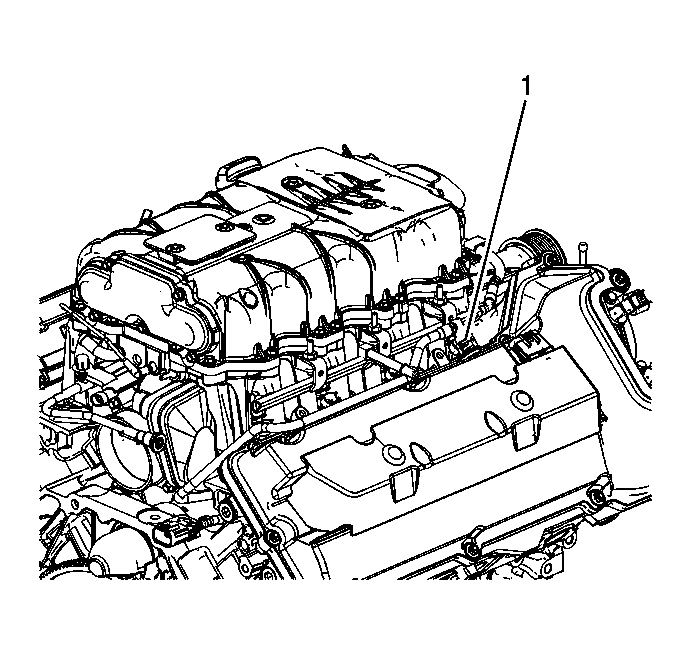

Fig 5: MAP Sensor Vacuum Tube
Courtesy of GENERAL MOTORS CORP.
6. Disconnect the manifold absolute pressure (MAP) sensor vacuum tube connection (1) from the supercharger fitting.

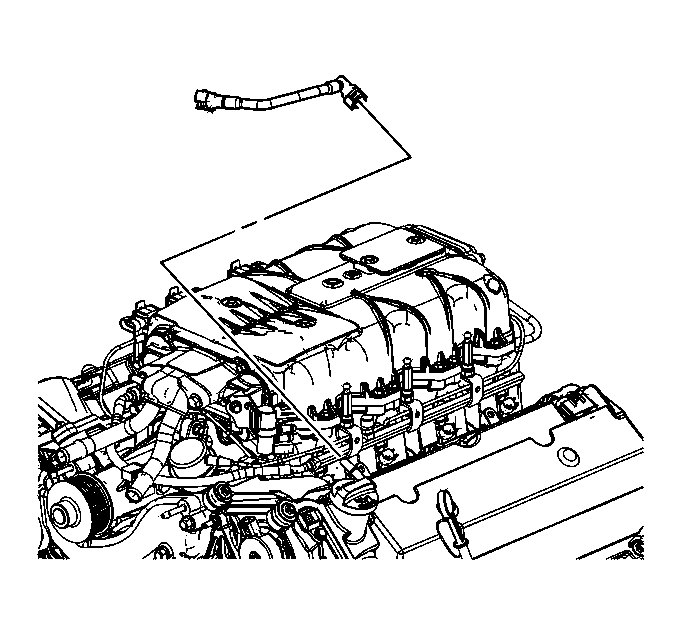

Fig 6: Supercharger Inlet Absolute Pressure Sensor Vacuum Tube Connection
Courtesy of GENERAL MOTORS CORP.
7. Disconnect the supercharger inlet absolute pressure sensor vacuum tube connection (1) from the supercharger fitting.

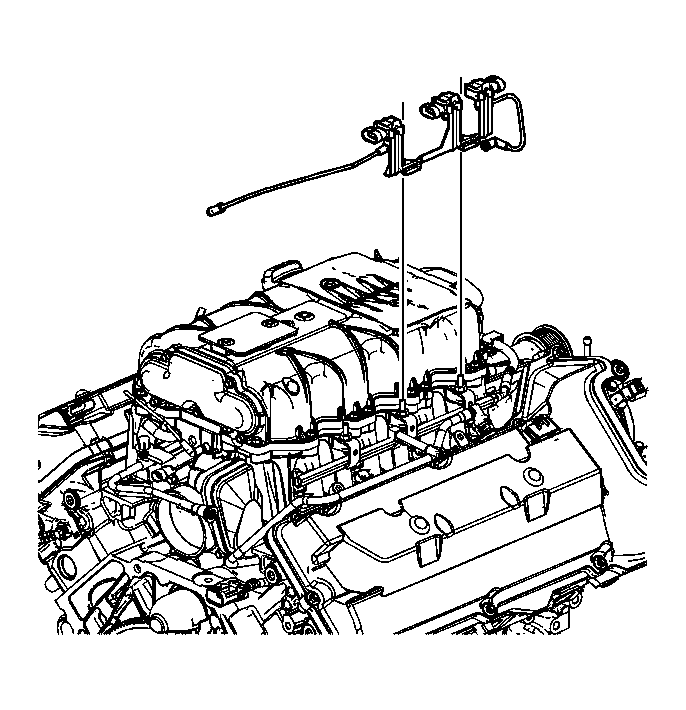

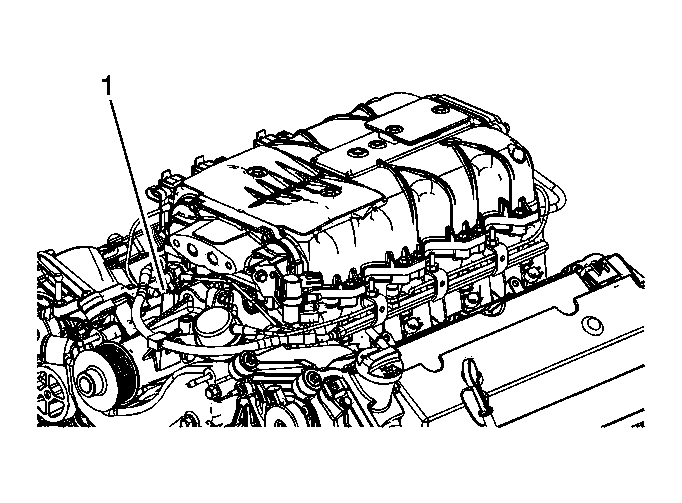

Fig 7: Bracket With Sensors & Tubes
Courtesy of GENERAL MOTORS CORP.
8. Remove the bracket with sensors and tubes.

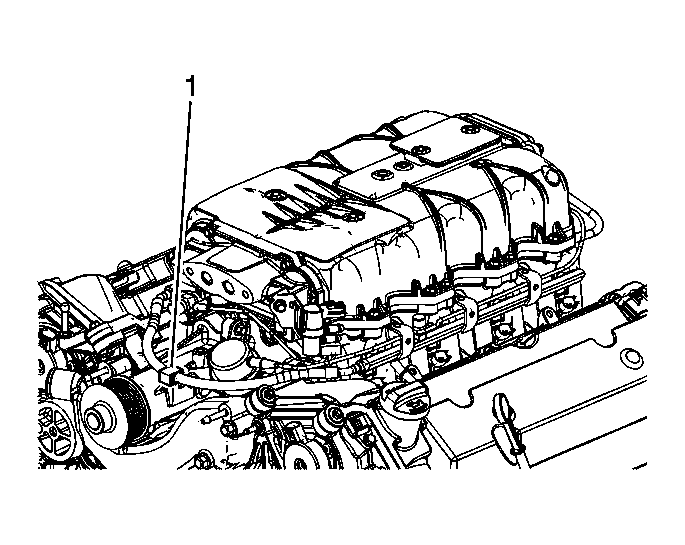

Fig 8: PCV Dirty Air Tube
Courtesy of GENERAL MOTORS CORP.
9. Disconnect the dirty air positive crankcase ventilation (PCV) tube (1) from the right camshaft cover.

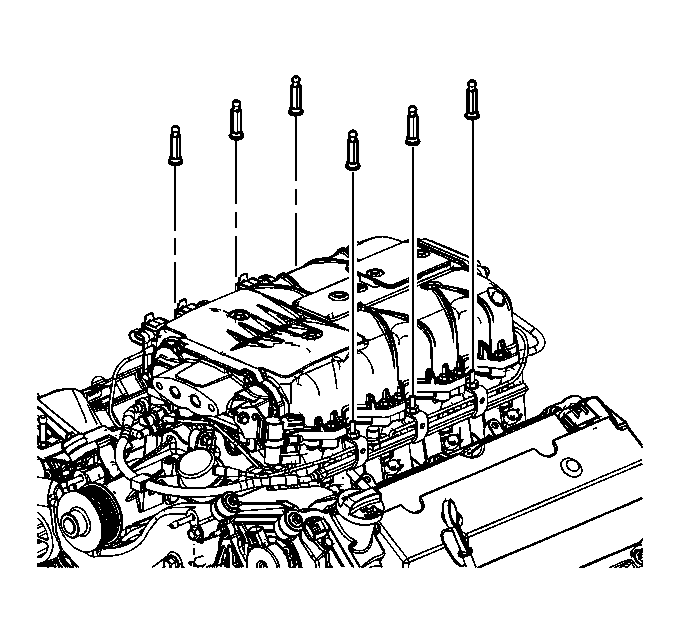

Fig 9: Fuel Injection Rail Studs
Courtesy of GENERAL MOTORS CORP.
10. Remove the fuel injection rail studs.
Fig 10: Fuel Injection Rail Crossover Tube Clip
Courtesy of GENERAL MOTORS CORP.
11. Release the fuel injection rail crossover tube clip (1).

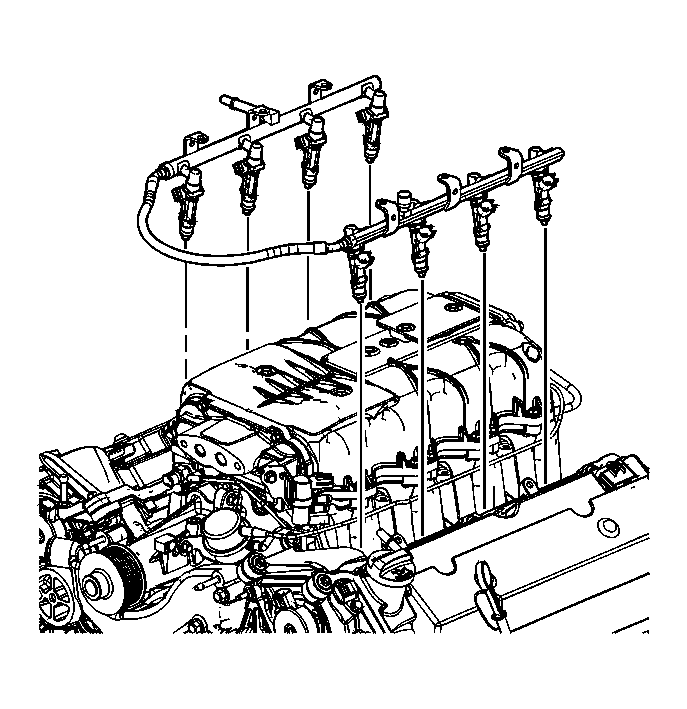

Fig 11: Fuel Injector Rail Assembly
Courtesy of GENERAL MOTORS CORP.
12. Lift each fuel injector out of the bores in the supercharger and lift off the fuel injector rail assembly.
Fig 12: Identifying Supercharger Bolts
Courtesy of GENERAL MOTORS CORP.
13. Remove the supercharger bolts.

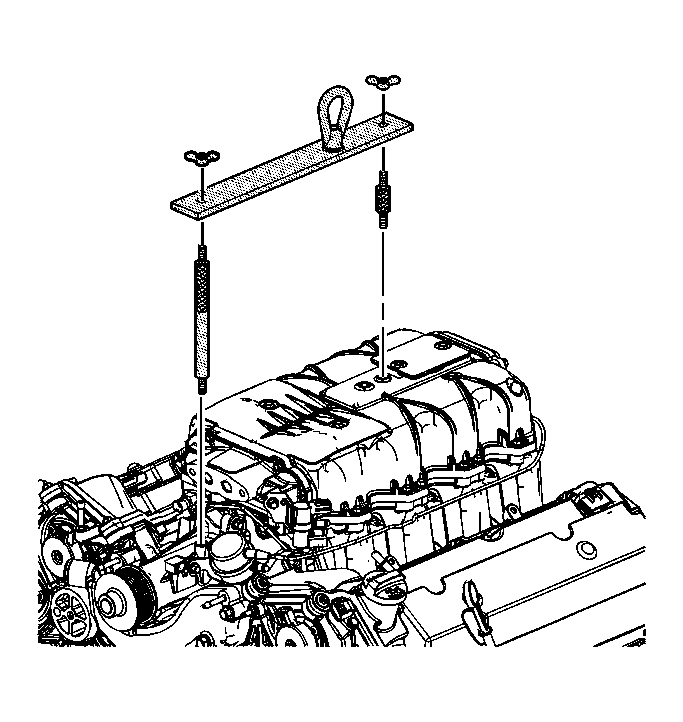

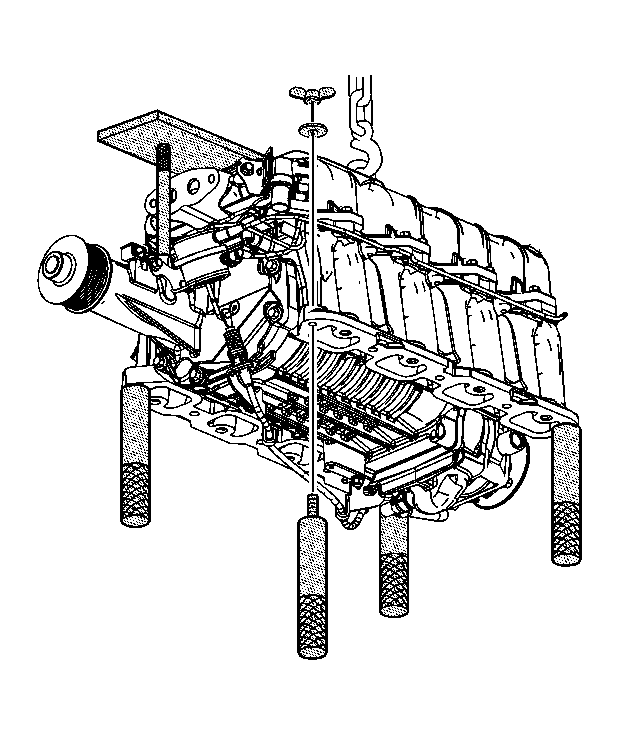

Fig 13: Supercharger Lifting Tool
Courtesy of GENERAL MOTORS CORP.
14. Install the EN-47748  onto the supercharger. See Special Tools .

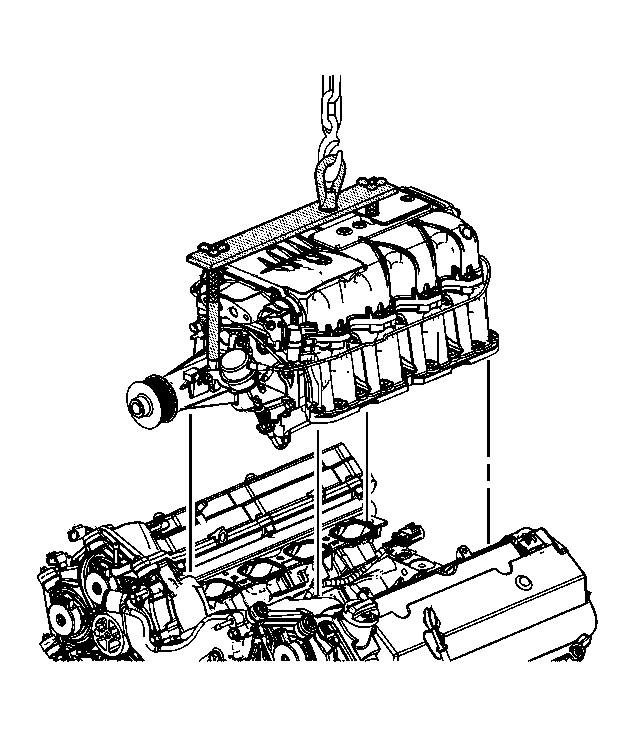

Fig 14: Lifting Supercharger
Courtesy of GENERAL MOTORS CORP.
CAUTION: The supercharger must be lifted with the EN 47748. The weight of the supercharger assembly is approximately 34 kg (75 lb) and could cause injury if lifted by hand.
NOTE: The supercharger must be lifted with the EN 47748. Damage could occur to the finish and/or components of the supercharger and surrounding engine or vehicle components.
15. Remove the supercharger using the EN-47748  with appropriate lifting equipment. See Special Tools .
Fig 15: Lifting Supercharger
Courtesy of GENERAL MOTORS CORP.
NOTE: The EN 47833 must be installed to the supercharger in order to prevent damage to the supercharger bypass actuator cable and the finish of the supercharger. Failure to use the EN 47833 can lead to bending the brackets of the supercharger bypass actuator cable. Bent supercharger bypass actuator cable brackets will cause the supercharger bypass valve to function improperly.
16. Install the EN-47833  through the end mounting bolts holes of the supercharger. See Special Tools .
Fig 16: Supercharger
Courtesy of GENERAL MOTORS CORP.
17. Place the supercharger assembly on an appropriate clean, stable and flat surface.

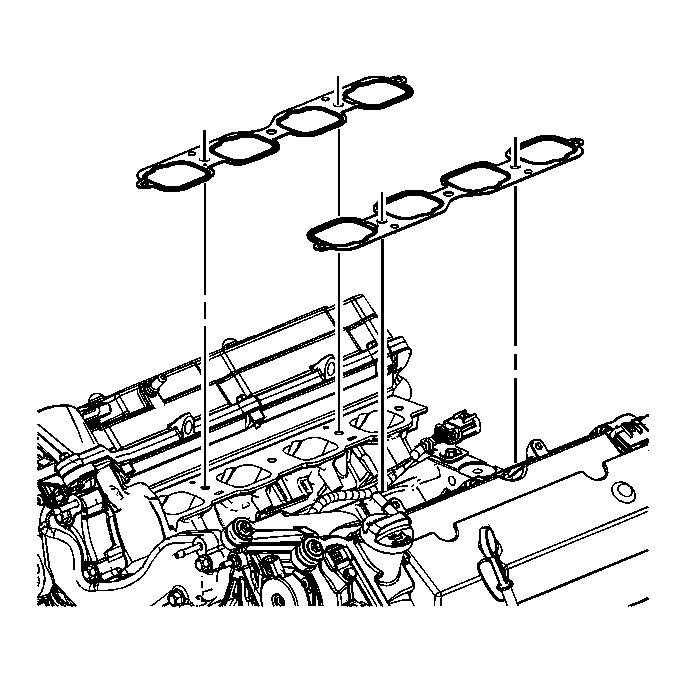

Fig 17: Supercharger Gaskets
Courtesy of GENERAL MOTORS CORP.
18. Remove and discard the supercharger gaskets.
