Power Steering Pump Removal - Off Vehicle

Tools Required

J 25034-C  Pulley Remover

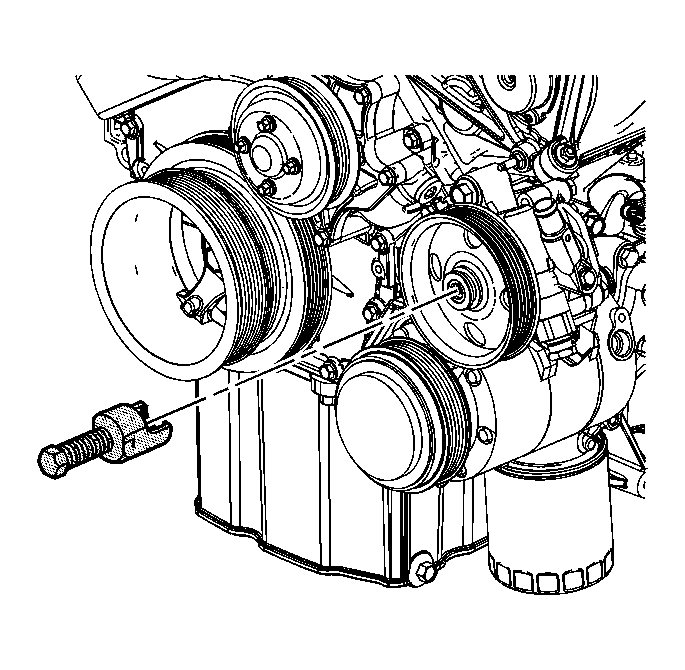

Fig 1: Pulley Remover
Courtesy of GENERAL MOTORS CORP.
1. Using the J 25034-C  , remove the power steering pump pulley in order to access the power steering pump mounting bolts.

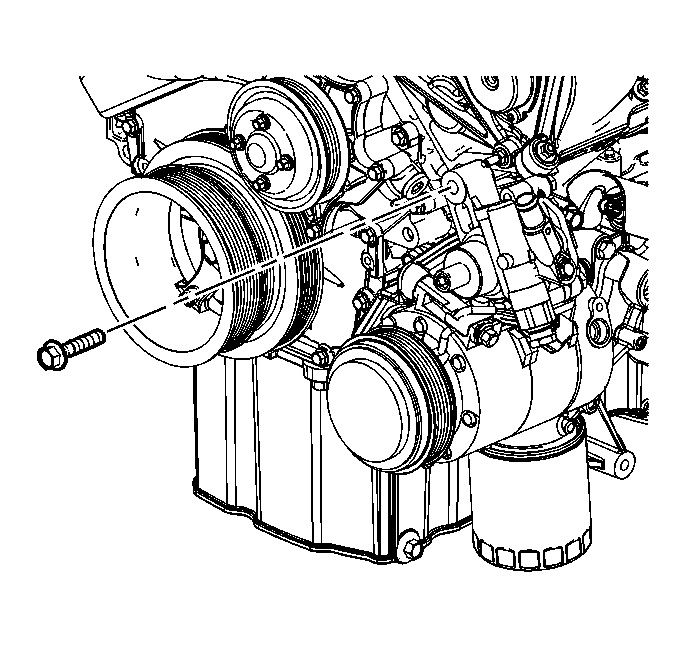

Fig 2: Power Steering Pump Front Bolt
Courtesy of GENERAL MOTORS CORP.
2. Remove the power steering pump front bolt.

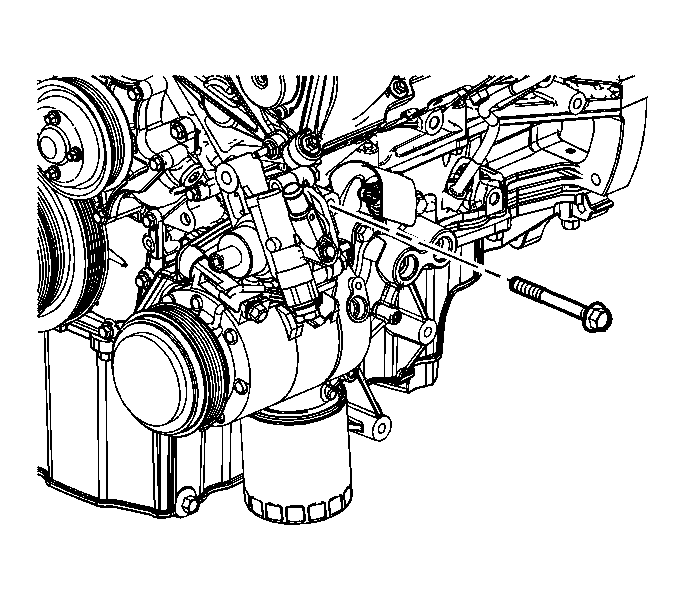

Fig 3: Power Steering Pump Side Mounting Bolt
Courtesy of GENERAL MOTORS CORP.
3. Remove the power steering pump side mounting bolt.

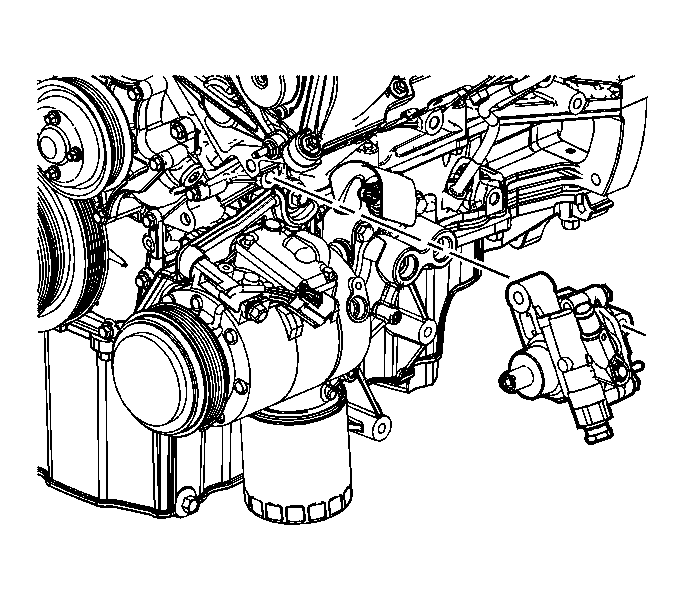

Fig 4: Power Steering Pump
Courtesy of GENERAL MOTORS CORP.
4. Remove the power steering pump.
