Oil Pump Removal - Off Vehicle

WARNING: This page is about a different variant/trim than selected.

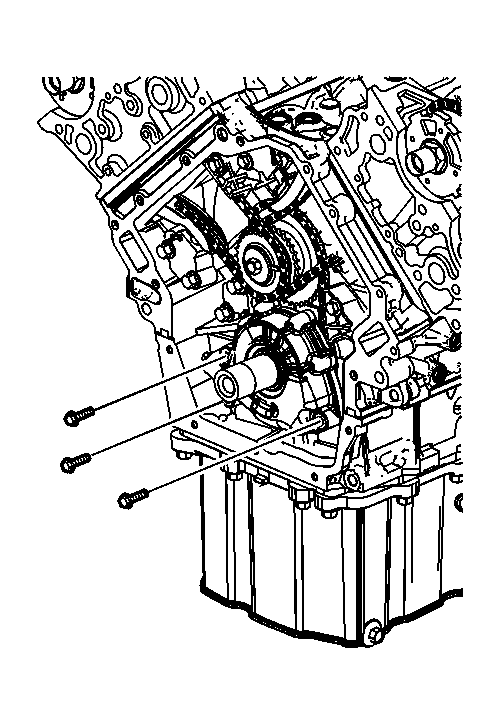

    Fig 1: Oil Pump Bolts
    GM1674303Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil pump bolts.
    2. Fig 2: Oil Pump
    GM1674298Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pump.
    3. Fig 3: Crankshaft Sprocket To Oil Pump Drive Friction Washer
    GM1674296Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft sprocket to oil pump drive friction washer.
