Oil Level Indicator and Tube Removal - Off Vehicle

WARNING: This page is about a different variant/trim than selected.

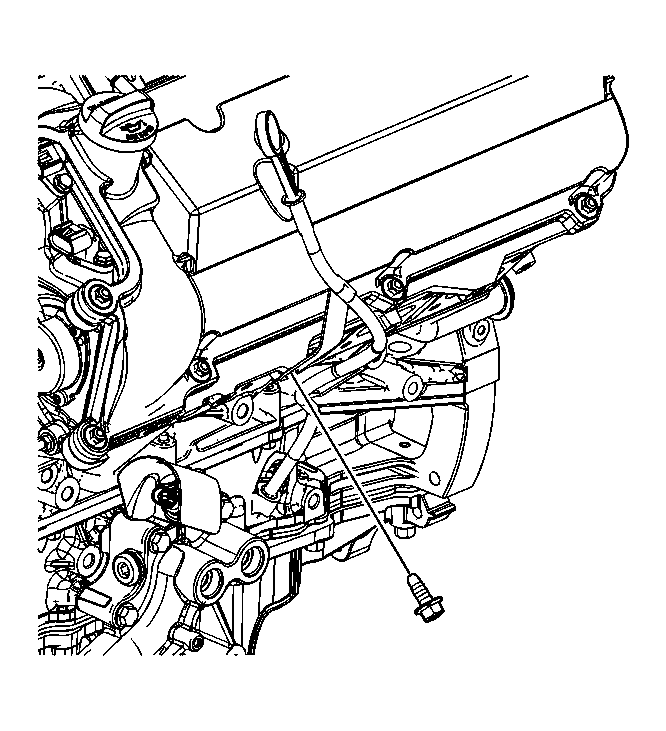

    Fig 1: Oil Level Indicator Bolt
    GM1656805Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil level indicator bolt.
    2. Fig 2: Oil Level Indicator Tube
    GM1656807Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil level indicator tube.
    3. Fig 3: View Of Oil Level Indicator Tube O-Ring
    GM1583980Courtesy of GENERAL MOTORS CORP.
  3. Remove and discard the oil level indicator tube O-ring.
