Ignition Coil Module Removal - Right Side - Off Vehicle

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Ignition Coil Assembly Cover
    GM1575705Courtesy of GENERAL MOTORS CORP.
  1. Remove the ignition coil assembly cover.

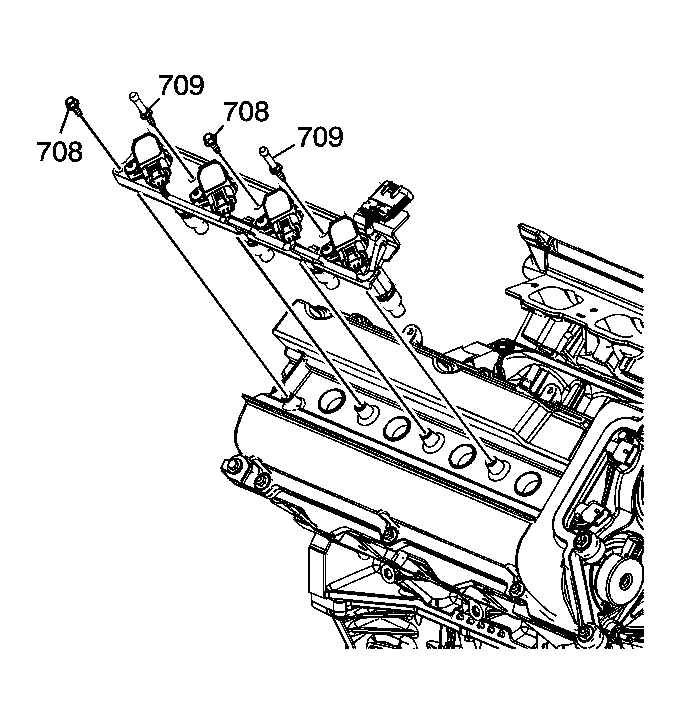

    2. Fig 2: Ignition Coil Assembly
    GM1575707Courtesy of GENERAL MOTORS CORP.
  2. Remove the ignition coil assembly bolts (708) and ball studs (709).
  3. Carefully, remove the ignition coil assembly.
    4. Fig 3: Spark Plug
    GM1575702Courtesy of GENERAL MOTORS CORP.
  4. Remove the spark plugs.
